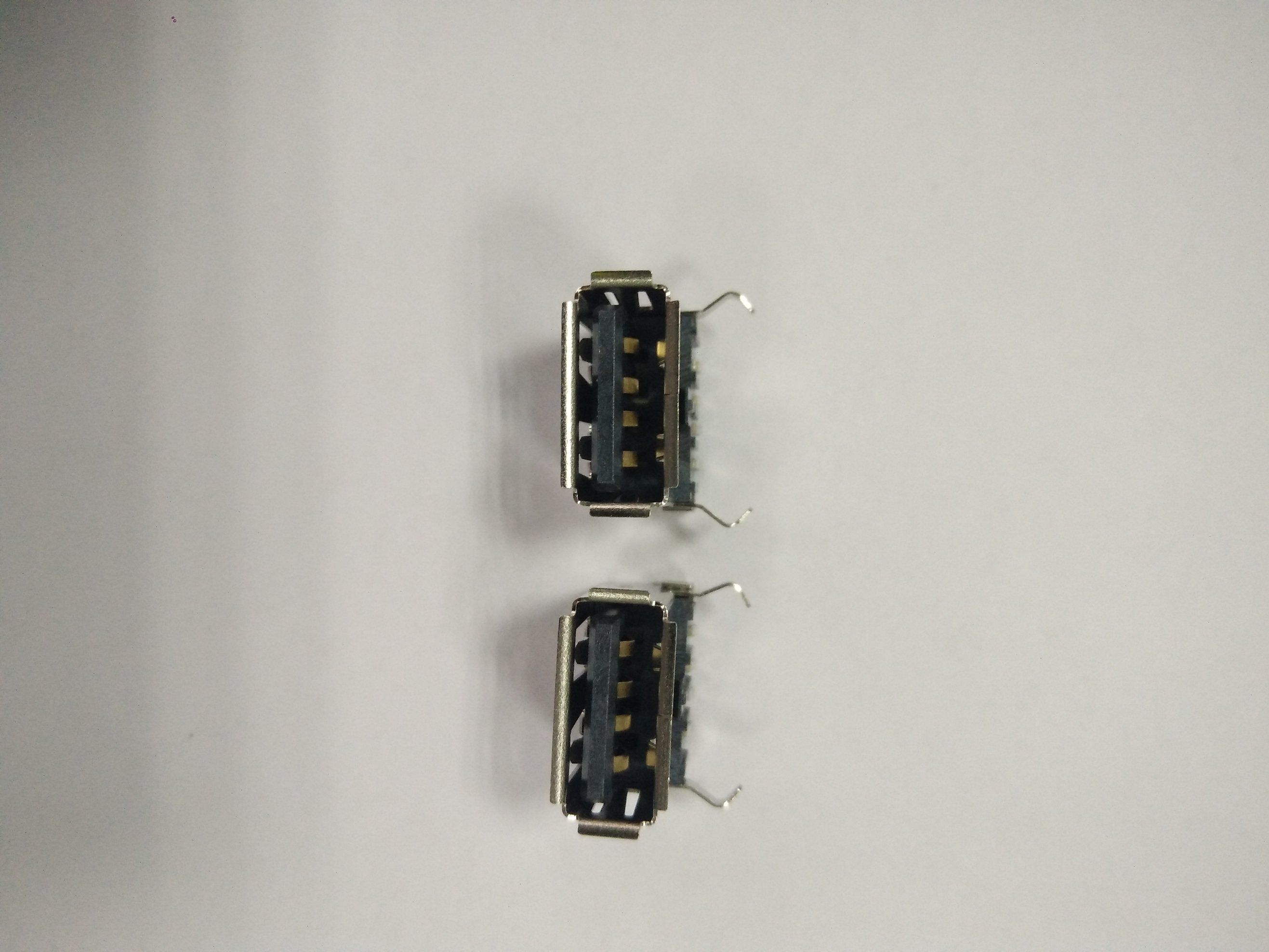

90 Degree USB2.0 Male/Female Connector

Prod Model:	USB5-A4F1-KNR0-83
USB2.0 90 Degree Connector:	USB 2.0 PCB End
Gender:	Female
Application:	PCB

Product Description

                                               Product Details
Basic Info.
Model NO.: USB5-A4F1-KNR0-83
Interface Type:USB
Connector:USB
Universal:Universal
Cable Length:Connector only
Data Transmission Function:Data Transmission Function
Surface:Smooth
Charging Function:Charging Function
Customized:Tranditional ,can customized
USB:2.0
Export Markets:Global
Additional Info.
Packing:Reel
Standard:RoHs
Origin:Kunshan, China
Production Capacity:100000000PCS/M
Product Description
Features:
1. With A Type/B Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature


ELECTRICAL CHARACTERISTICS:
Contact Currect Rating:	1.5Amp.
Dielectric Withstanding Voltage:	AC500V.r.m.s
Insulation Resistance:	1000MΩ Min at DC 500V
Contact Resistance:	30MΩ Max
Operation Temperature:	-55°C-+85°C

.

MATERIALS:
Insulator:	PBT+Glass Fiber UL 94V-0
Shell:	Cold Roller Steel
Contacts:	Copper Alloy
