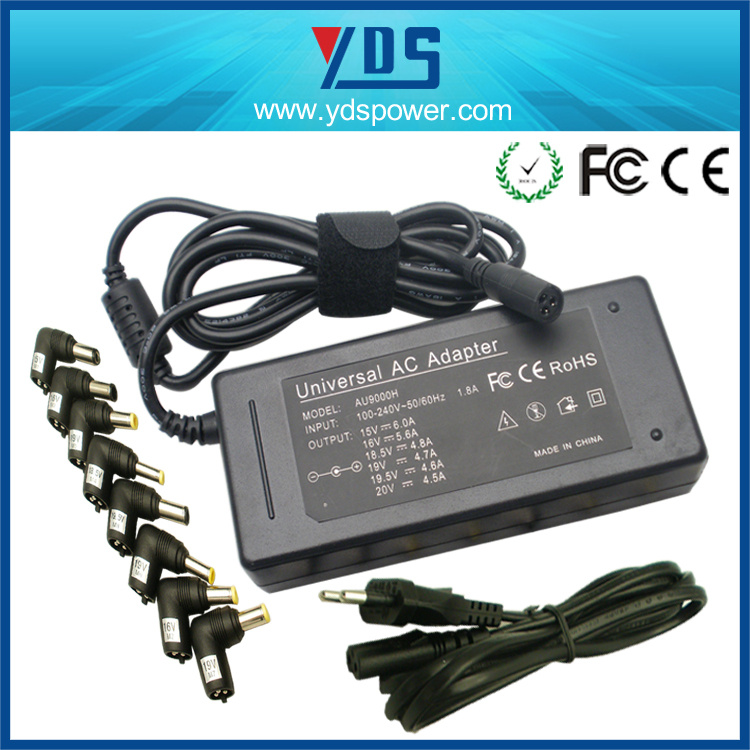

90W Automatic Universal Laptop Adapter
| Price: |
US $ 6-7.8/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
YUA903 |
| Input Voltage: |
AC 100V-AC240V |
| Output Power: |
90W |
| 8 Standard DC Tips: |
6.3*3.0/5.5*2.5/6.5*4.4/4.8*1.7/5.0*3.0/5.5*2.1/ |
| Overload Protection: |
Yes |
| Short Circuit Protection: |
Yes |
| Compatible With: |
for Most Brand of Laptops |
| Warranty: |
2 Years |
| Certificate: |
Ce FCC RoHS |
| Vibration Input Voltage Range: |
AC95V-265V |
| DC Connector: |
3 Pin ( with 8 Standard DC Tips) |
| Usage: |
Laptop |
| Output Type: |
DC |
| Connection: |
Desktop |
| Certification: |
Ce,FCC |
| Brand: |
Yds |
Product Description
90W Automatic Universal Laptop Adapter| Automatic Universal Laptop Home Charger 90W |
| Model No. | YUA903 |
| AC Input |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output |
| Output Voltage | DC 15V/16V/18.5V/19V/19.5V |
| Output Current | 6A-4.7A |
| Output Power | 90W |
| DC Connector Size | 3 pin ( with 8 standard dc tips) |
| 8 Standard DC Tips | 15V/M1 6.3*3.0 mm / 16V/M2 5.5*2.5 mm / 16V/M3 6.5*4.4 mm / 18.5V/M4 4.8*1.7 mm / 19V/M5 5.5*2.5 mm / 19V/ M6 5.0*3.0 mm / 19V/ M7 5.5*2.1 mm / 19.5V/M8 6.5*4.4 mm |
| Line Regulation | 1% |
| Load Regulation | 1% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | >85% |
| Output Cable Standard | 0.75mm2 Pure Copper |
| Output Cable Length | 1.5m normally or customized requirement |
| Advantages |
| 1. The output voltage would be changed automatically when different tips on it |
| 2. It is better and easier for end clients to use it |
| Environment |
| Operating Temperature | 0°C ~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C ~85°C |
| Storage Humidity | 5%~95%RH |
| Protection |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates |
| CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE |
| Dimensions |
| Adapter Size | 13.2*5.8*3.0cm |
| Adapter Weight | 350g |
| Color Box Size | 26*16*53 cm |
| Color Box Weight | 80G |
| PCS/CTN | 20PCS or 40PCS |
| Outer Carton Size | 42*27*32.5CM or 53*32.5*42CM |
| Outer Carton Weight | 600G or 800G |
| GW/CTN | 8900G or 17400G |
| Package |
| Inner Box | Normally neutral color box or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty |
| Guarantee | 30 days |
| Warranty | 2 years |
| Terms and Conditions |
| MOQ | 100PCS for mixed order |
| Payment Terms | T/T, L/C, PayPal, western union |
| Delivery Time | 3-5 days |
| Manufacturing Process |
| 1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping |
| Test Procedures |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
|
SHENZHEN YIDASHUN TECHNOLOGY Co., Ltd. Shenzhen Yidashun Technology Co., Ltd. Is a high-tech enterprise approved by government, dedicated to the R&D, manufacture and sales of laptop adapters, other AC/DC adapters, universal laptop adapters, swiching power supply and waterproof LED driver. The company is founded in 2007, it has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients; Excellent sales team export our products to European and American countries, Middle East countries, HK, Southeast Asia countries and Oceania. The company is located in shenzhen, there are more than 300 staffs, owning more than 5, 000 square meters of development and production base.
Currently we start new projects selfie stick monopod, USB patch board and USB socket, we make our own special mould and our own color box to make them different in the market! And we offer cost prices to expand the market and support our each client! Welcome to inquiry!
QC Team: A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Cercificate: CE, RoHS, REACH, FCC, ERP, CB, GS, TUV, UL, cUL, CCC, PSE
WARRENTY
♥ Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
♥ Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us.
♥ If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps.
