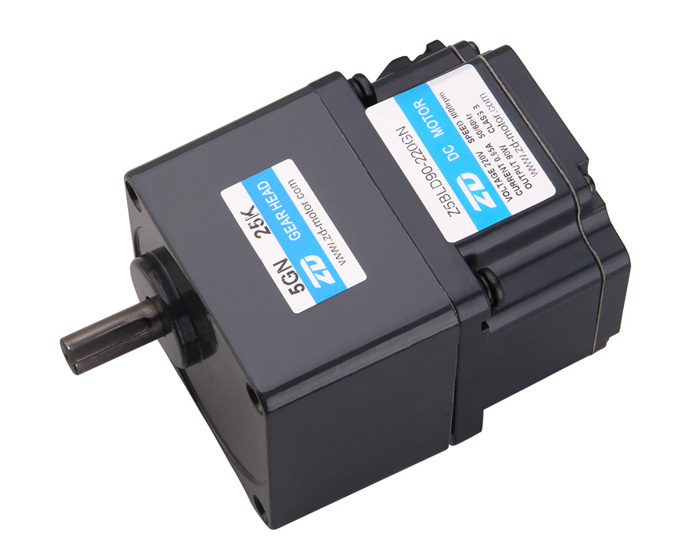

90watt 220v DC Brushless Gear Motor

Name: 90watt 220v DC Brushless Gear Motor
Brand: all-electronics-online.com
SKU: 715122075
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 30-130/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Z5BLD90-220GN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	90mm
Power:	90watt
Voltage:	220V
Gear Ratio:	3:1, 3.6:1, 5:1~200:1
IP Class:	IP40, IP44
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Type:	IP40, IP44
Certification:	CCC, CE, UL. RoHS
Brand:	Zd

Product Description

90watt 220v DC Brushless Gear Motor

Motor Performance Parameters

Model Type	Voltage V	Power W	No-load Parameters		Load Parameters			Brush Life H	Motor Weight Kg
Model Type	Voltage V	Power W	Speed r/min	Current A	Speed r/min	Torque mN.m	Current A	Brush Life H	Motor Weight Kg
Z5BLD90-220	220	90	-	-	3000	286	0.90	>5000	2.0
Z5BLD90-110	110	90	-	-	3000	286	1.80	>5000	2.0

Gearhead Type	Gearhead Model	Gear Ratio
Long Life Low Noise	5GN*K	3,3.6,5,6,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180,200
Long Life Low Noise	5GN10XK(Decimal gearhead)

Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.

Typical Application:
machine tools,textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machinery, packing machinery, and gumming machinery.

Our company is specialized in mini AC/DC gear motors. At present, our main products are: gear motors, three phase motors, speed control motors, brake motors, damping motors, torque motors, and DC gear motors. They are widely used in machine tools,textile machinery, medical appliance, conveying machines, printing mechanism,food machinery, vending machines, packing machinery, and gumming machines. Our tenet is: quality as foundation, reputation first, seeking for outstanding position.With excellent equipment, advanced procedure, scientific management, andmodern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service. We hope that we canestablish long-term business relationships together with you for mutual business

Ningbo zhongda leader transmission equipment Co., Ltd. is specialized in mini AC gear motors. At present, our main products are: Gear motors, three phase motors, speed control motors, brake motors, damping motors, torque motors, and DC gear motors. They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.

Our tenet is: Quality as foundation, reputation first, seeking for outstanding position. With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.

We welcome interested companies to inquire about our products. We are looking forward to establishing long-term business relationships together with you for mutual business success.
