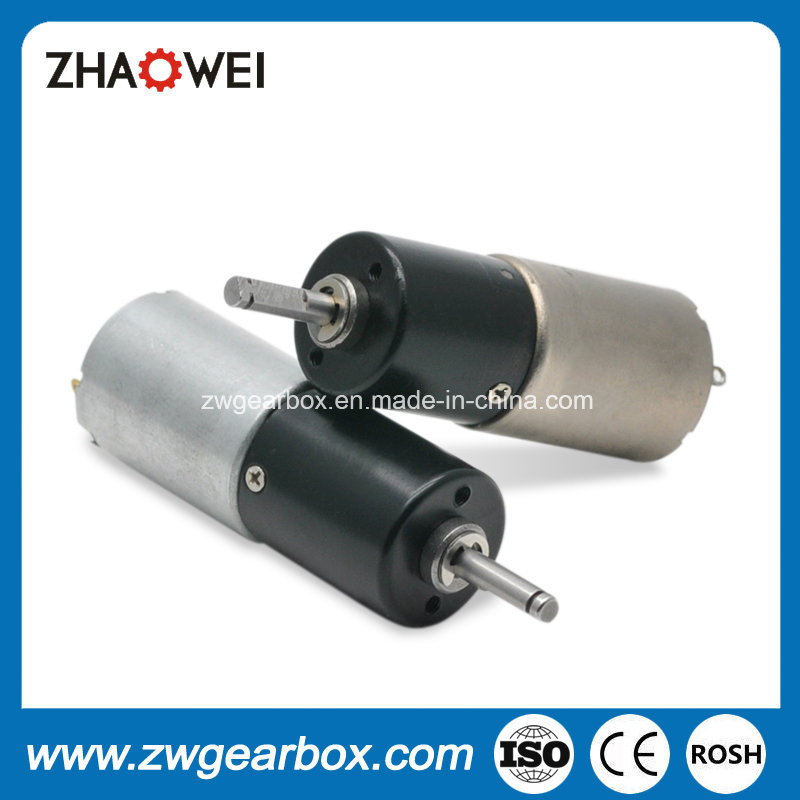

94 Rpm 6V Wiper Automobile DC Motor with Planetary Gearbox

Prod Model:	ZWMD016016-64
Voltage:	6V
No Load Speed:	123 Rpm
No Load Current:	145mA(Max)
Load Speed:	94 Rpm
Load Current:	335mA(Max)
Load Torque:	243 GF.Cm
Max Rated Torque:	2,000 GF.Cm
Gear Box Length:	13.4mm
Gear Ratio:	36:1
Motor Type:	Gear Head Motor
Application:	Door Lock
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Type:	Gear Head Motor
Certification:	RoHS
Brand:	Zhaowei

Product Description

94 Rpm 6V Wiper Automobile DC Motor With Planetary Gearbox

Product Description:

diameter	16mm
motor	DC brush motor
noise level	less than 40dB at the 50cm distance
life time	200 hours
working temperature	-40 to 95ºC
tolerance	<0.3mm
Certification	ROHS/ISO9001/ISO14001/SGS/TS16949
Suitable for	Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.
OSD Language	English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean
The basic specifications for reference only, specifications can be customized.

Features
high appearance working temperature: to 200ºC
high precision

Reliability Test

* Noise Test
* Water-proof Test
* Life Test
* Impact Test
* Storage Test
* Salt Spray Test
* Environmental Related Substance.

1)Specification

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWMD016016-4	6.0	1961	125	1500	335	29	2.8	37	1500	10000	4	10.1
ZWMD016016-6	6.0	1307	125	1000	335	43	4.2		1000	10000	6
ZWMD016016-16	6.0	490	135	375	335	92	9.0	40.3	2500	10000	16	13.4
ZWMD016016-24	6.0	327	135	250	335	138	13.6		2500	10000	24
ZWMD016016-36	6.0	218	135	167	335	207	20.3		2000	10000	36
ZWMD016016-64	6.0	123	145	94	335	243	23.8	43.6	3500	10000	64	16.7
ZWMD016016-96	6.0	82	145	63	335	365	35.7		3500	10000	96
ZWMD016016-114	6.0	54	145	42	335	547	53.6		3500	10000	144
ZWMD016016-216	6.0	36	145	28	335	820	80.4		3000	10000	216
ZWMD016016-256	6.0	31	145	23	340	729	71.5	46.9	5000	10000	256	20
ZWMD016016-384	6.0	20	145	16	340	1094	107		5000	10000	384
ZWMD016016-576	6.0	14	145	10	340	1640	161		5000	10000	576
ZWMD016016-864	6.0	9	145	7	340	2460	241		5000	10000	864
ZWMD016016-1296	6.0	6	145	5	340	3500	343		3500	10000	1296

above specifications just for reference and customizable according to requirements.

2)2D Drawing


3)Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments

Our Services
ODM & OEM
Gearbox design and development
Related technology support
Packaging & Shipping
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Company Information
Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages
18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
 2) Main Products
Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.
Certifications
We Have passed to hold ISO9001, ISO14001 and TS16949.
and more...
FAQ
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry .
