| Prod Model: |
fr4 pcb assembly |
| Assembly: |
SMT, DIP, COB, BGA |
| Size: |
200*304mm |
| Copper Thickness: |
Rigid:0.5-12 Oz |
| Biz Type: |
Factory |
| Supported Files: |
Protel Autocad Powerpcb Orcad Gerber |
| Heat Shock: |
288c,10sec |
| Dimension Tolerance: |
+/-0.13mm |
| Inner Layer Copper Thickness: |
17.5 to 175µm |
| Outer Layer Copper Thickness: |
8.75 to 175µm |
| Board Thickness: |
1.6mm |
| Structure: |
Double-Sided Rigid PCB |
| Material: |
Epoxide Woven Glass Fabric Laminate |
| Production Process: |
Subtractive Process |
| Insulation Materials: |
Pl=Olymide |
| Brand: |
Rigao |
Product Description

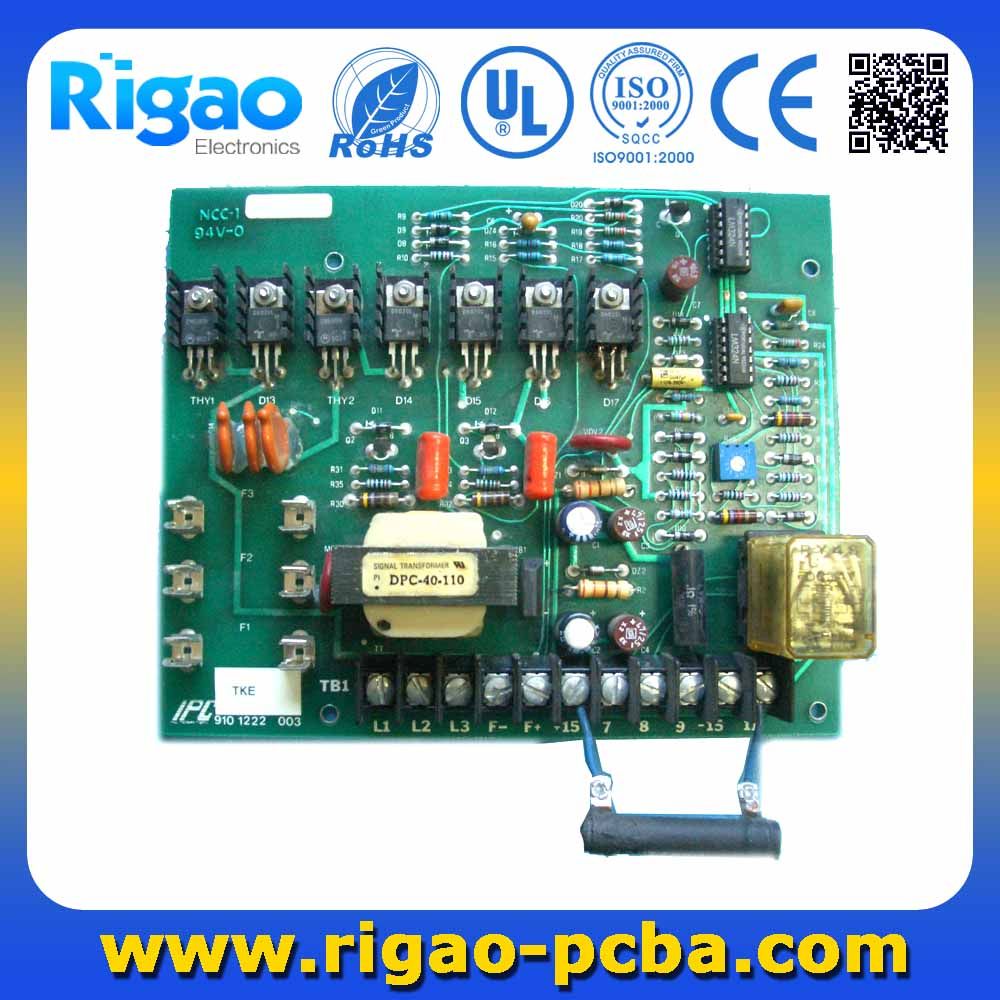

94V0 PCB Board Fr4 PCB Assembly from pcb company
Rigao-pcba electronic Co.,Ltd is a newly company which founded in 2008 ,which is THE best PWB manufacturer and supplier. At beginning we were only focus on manufacturing Printed Circuit Boards. But now GWC has become a rapidly growing worldwide provider of solutions in three principal areas - Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
We have years of experiences in Electronic board field. From prototype to production and scheduled deliveries we are able to guarantee a complete service with technical backup, offering a cost advantage and continuity of supply.
Company's Culture:
The Core Values: Integrity, Responsibility, Close attention
Our core competitiveness: 0Quality, Technology, Speed, Cost, Flexibility
Quality Policy:
High quality, High efficiency; Promise keeping and Sustainable PCB produce and SMT services development
Detailed Specification of 94V0 PCB Board:
| Rigid PCB Capability |
| No. | Item | Capability |
| 1 | Layer Count | 1-30Layers |
| 2 | HDI Type | 1+N+1, 2+N+2 |
| 3 | Material | CEM3, FR-4, Halogen Free, Aluminum-based, Teflon,Rogers, etc |
| 4 | Board thickness | 0.2~5.0mm |
| 5 | Board Size | Max | 600*1000mm (24"x40") |
| Min | 30x50mm |
| 6 | Copper Thickness | Outer layer | 1oz~6oz |
| Inner layer | 0.5oz~5oz |
| 7 | Min. Line Width/Space | 4/4mil(0.1/0.1mm) |
| 8 | Finished Hole size | Mechanical | 0.20~6.30mm |
| Laser | 5mil, 6mil |
| 9 | Blind/buried via(Mechanical) | | 0.2mm (min) |
| 10 | Aspect Ratio | 10:1 |
| 11 | Hole Dia.Tolerance | PTH | ±0.075mm(3mil) |
| NPTH | ±0.05mm (2mil) |
| 12 | Hole Position Tolerance | ±0.05mm (2mil) |
| 13 | Bow & Twist | ≤0.75% |
| 14 | Peel strength | 1.4N/mm |
| 15 | Thermal stress | 288 degrees centigrade & 20 Sec |
| 16 | Test Voltage | 50-300V |
| 17 | Soldermask color | Green, Red, Blue, Black, White,Yellow |
| 18 | Outline Tolerance | ±0.10mm (4mil) |
| 19 | Surface Finish | HASL, Lead free HASL, Immersion Gold/Tin/Silver, OSP, Flash Gold, Gold fingers, Plating Hard Gold, Carbon lnk, Peelable mask |
Detail specification of 94V0 PCB Board:
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
Q&A:
What products Rigao can supply?
Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
Rigao can make HASL lead/lead free,gold finishing.
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
Requested information for fr4 PCB Assembly:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
5. ODM Capability:
Till now we have successfully developed Analogue high performance FM transmitter, Wide frequency
stereo transmission circuit, SSB communication system, High performance wave receiving antenna,
Digital Frequency Hopping Radio Set, Digital Addressing communication system, etc. Moreover.
Any needs and questiones ,please feel free to contact me
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
