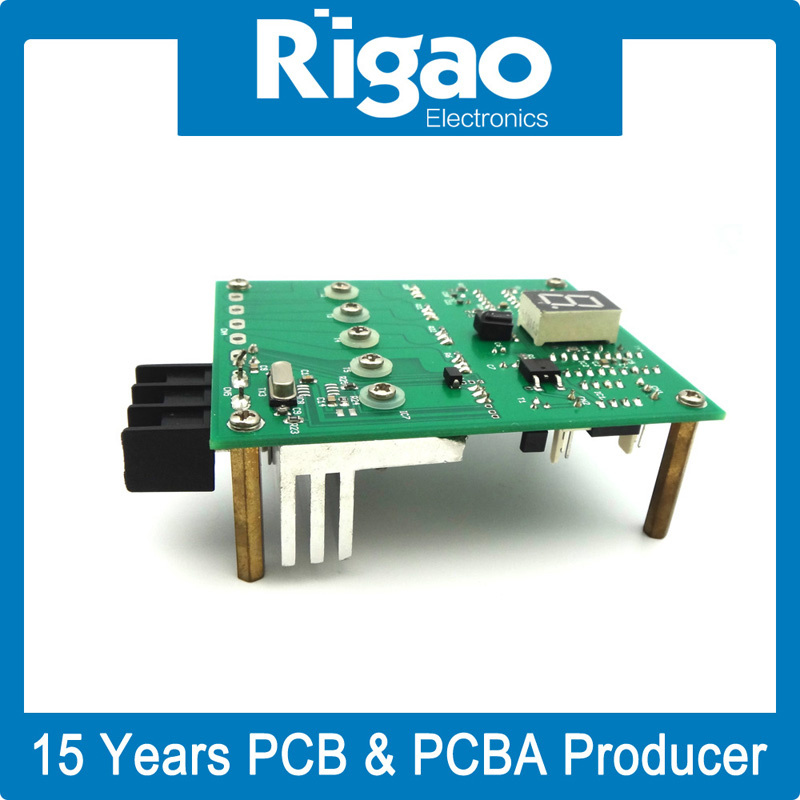

| Prod Model: |
Rigao2 PCBA28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finishing: |
Immersion Gold |
| PCBA Testing: |
X-ray, Aoi |
| Small Order: |
Acceptable |
| PCB Assembly Clone: |
Acceptable |
| Copper Thickness: |
1oz |
| Solder Mask: |
Green, Blue, Black,Red |
| PCB Testing: |
E-Testing |
| Board Thickness: |
1.6mm |
| Products Name: |
94V0 PCBA |
| Silk-Screen: |
White |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Product Description:
| Item | PCB Capability |
| Material | FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, PTFE, TACONIC, F4B, ARLON, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc. |
| ayers (GERBER FILE) | Mass production: 2~58 layers & Prototyping run: 64 layers |
| Board Thickness | 0.2mm - 7mm |
| Copper Thickness | 1/2 oz - 14 oz |
| Surface Treatment | HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver,
ENEPIG, Gold Finger |
| Data File Format | Gerber file, Protel, OrCAD, PADS2000 , Altium, Powerpcb , ODB++, EDA, |
| Min. Hole Size | Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm) |
| Hole Size Tolerance | +/-0.05mm (2 mil) |
| Min. Line Width and Spacing | 0.1mm (4 mil) |
| Min. Solder Mask Clearance | 0.076mm (3mil) |
| Min. Annular Ring | 0.076mm (3mil) |
| Max. Panel Size | 1150mm × 560mm |
| Max. Copper Thickness | UL certificated: 6.0 OZ & Prototyping run: 12OZ |
| Profile and V-Cut | V-Cut, Jump V-Cut, CNC V-Cut CNC-Routing, Stamping and Beveling |
| Special Process | Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control. |
| | |
| | |
| | |
| | |
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) -130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
Our products
HDI board | 1-layer PCB | 2-layer PCB | 4-layer PCB | 6-layer PCB |
| 8- layer PCB | 10- layer PCB | 12- layer PCB | 14- layer PCB | 16- layer PCB |
| Aluminium PCB | Multi-layer PCB | FPC | Rigid-flexible PCB | Copper PCB |
| PCB Assembly | Rigid circuit board | LED PCB
|
Products using range
Our products are widely used in communication apparatus, automobile electronics, computers, medical devices and network devices and consumer electronics class fields.
Quote requirements
1. |
Material |
2. |
Board Thickness |
3. |
Copper Thickness |
4. |
Surface Finishing |
5. |
Quantity |
6. |
Gerber File |
7. |
BOM list |
Lead time for different layer PCB
Layer | Sample | mass production |
| 1 | 4 days | 7 days |
| 2 | 4~5 days | 10 days |
| 4 | 5~6 days | 14 days |
| 6 | 6~7days | 14 days |
| 8 | 8~9 days | 18 days |
| 10 | 12~14 days | 18~20 days |
| 12 | 16 days | 22 days |
| 14 | 18 days | 24 days |
Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
· Gerber file of the bare PCB board
· BOM (Bill of material) for assembly
· To short the lead time, please kindly advise us if there is any acceptable components substitution.
· Testing Guide & Test Fixtures if necessary
· Programming files & Programming tool if necessary
· Schematic if necessary
OEM/ODM/EMS Services for PCBA:
· PCBA, PCB assembly: SMT & PTH & BGA
· PCBA and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
· Custom clearance for material importing and product exporting
Orientronic PCB assembly Equipment:
· SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4
· Reflow Oven: FolunGwin FL-RX860
· Wave Soldering Machine: FolunGwin ADS300
· Automated Optical Inspection (AOI): Aleader ALD-H-350B
· Fully Automatic SMT Stencil Printer: FolunGwin Win-5
FAQ:
Q: What is your MOQ?
A: We accept any quantity you want to order, prototype and mass production both
are welcome.
Q: What do you need for quotation?
A: We need six informations from you as following show:
- Material:
- Board Thickness:
- Copper Thickness:
- Surface treatment:
- Gerber rle or other PCB data hle:
- Quantity:
For PCB assembly, we need BOM of components.
Q: Can you provide reverse engineering?
A: Yes, we do this service and we call it PCB or PCBA clone/copy,we just need the
sample fromyou.
Q: Do you have your owr products?
A: No, we just do the customized PCB and PCBA prodution, also PCB/PCBA design is welcome.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
