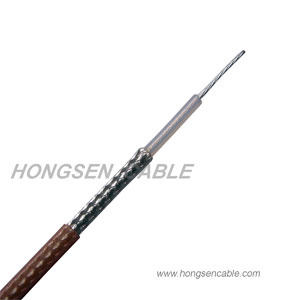

95 Ohm Teflon Coaxial Cable RG180 with PTFE Insulation

95 Ohm Teflon Coaxial Cable RG180 with PTFE Insulation
Price: US $ 1.329-1.603/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1500/Meter
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: RG180
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance: 95 Ohm
Application: RF Cable
Certification: CPR
Conductor Material: silver plated copper-clad steel
Cover Material: FEP
Type: RF CABLE

Product Description

RG180 Coaxial Cable with Solid PTFE Insulated, Silver Plated Copper Braid, 3.58mm FEP Jacket

Physical properties:
Inner conductor: 7/0.10 stranded silver plated copper-clad steel
Insulation: 2.59mm PTFE
Outer conductor: Silver plated copper braid, 91% coverage
Jacket: 3.58mm FEP

Electrical properties:
Capacitance (pF/m) : 50.2
Impedance (Ω ): 95.0
Velocity of Propagation (%) : 70.0
Conductor DCR (Ohm/km): 800.5
Outer Shield DCR (Ohm/km): 21.3
Max Operating Frequency (MHz): 1000.0
Max Operating Voltage (RMS): 1500.0
Operating Temp Range (º C): -55 to 200

Construction

ItemMaterial    Diameter (inch/mm)
Inner ConductorSilver Plated Copper Clad Steel 7/ 0.004± 0.0017/ 0.10± 0.02
DielectricPTFE0.102± 0.0022.59± 0.05
Shield91% Silver Plated Copper Braid0.118± 0.0033.00± 0.08
JacketFEP0.141± 0.0043.58± 0.10

Electrical Characteristics

Capacitance (pF/m)  50.2
Impedance (Ω)  95 ± 5
Velocity of Propagation (%)  69.5
Conductor DCR (Ohm/km)  800.5
Outer Shield DCR (Ohm/km)  21.3
Max Operating Frequency (MHz)  1000.0
Max Operating Voltage (RMS)  1500.0
Corona Extinction voltage (VRMS)  1500.0
Voltage Withstand (VRMS)  2000.0
Spark Test (VRMS)  2000.0
Operating Temp Range (ºC)  -55 to 200


Attenuation ( @ 20 ºC)

Frequency                                          (MHz)Max Attenuation                              (dB/100ft) Max Attenuation                                  (dB/100m)
103.310.8
504.615.1
1005.718.7
2009.631.5
40012.541.0
70016.955.4
90017.958.7
100020.065.6


RG180 B/U coaxial cable are used in wireless communication, broadcast and military equipments for transmission of radio frequency signals. Silver Plated Copper covered steel as inner conductor, PTFE dielectric, Silver Plated copper as braid wire, and FEP as jacket.
Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
