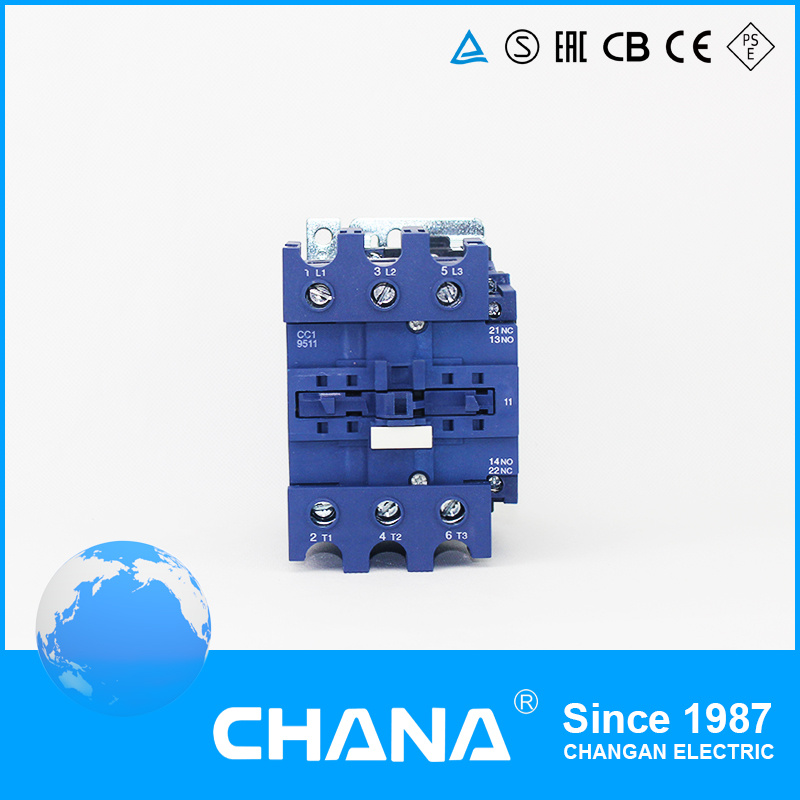

95A AC Contactor DC Contactor with Ce and TUV Approval

Prod Model:	CC1-95

Product Description

95A Industrial Control Contactor

1. Appliacatuon

Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor

2. Specification

Electric Ratings: AC50/60Hz,690V,up to 95A;
Utilization catagory: AC-3,AC-4
Altitude: <2000m,
Ambient temperature: -5ºC~+40ºC;
Mounting Cat: III
Mounting conditions: inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard: IEC/EN 60947-4-1


Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

24

36

42

48

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

B5

C5

D5

E5

F5

G5

M5

P5

U5

Q5

N5

R5

S5

Y5

60Hz

B6

D6

E6

F6

G6

M6

U6

Q6

R6

T6

50/60Hz

B7

D7

E7

F7

M7

P7

Q7

N7

R7



Model No.		CC1-40	CC1-50	CC1-65	CC1-80	CC1-95
Rated Conventional Heating Current	Ith(A)	60	80	80	100	125
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	40	50	65	80	95
	AC-4 Le(A)	18.5	24	28	37	44
Power Controlled 3Ph Cage Motor AC3	220/240 kW	11	15	18.5	22	25
	380/415 kW	18.5	22	30	37	45
	660/690 kW	30	33	37	45	45
Eletrical life(x10^3 operations)	AC-3	800	600	600	600	600
	AC-4	150	150	150	100	100
Mechainical life(x10^3 operations)		8	8	8	6	6
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
	A	63	80	80	100	125
Main Circuit		3P or 4P

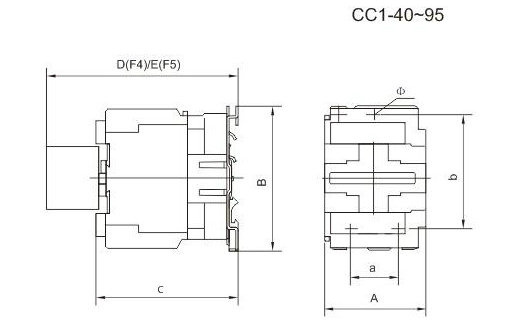

3. Dimension(mm)




Model	A max	B max	C max	D max	Emax	a	b	Φ	L	P	S
CC1-40~65	77	129	116	154.5	174.5	40	100/110	6.5	78	20	8.6
CC1-80~95	87	129	127	165.5	185.5	40	100/110	6.5	83	23.5	12

4. Our Services

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

5. Company Profile

Changan Group Co., Ltd,Establised in 1987,Comprising more than 62 factories with over 2500 employees and the whole corporaion occupies 82000m2 ground during past 30years.we manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,Contactor,Relay,Switch,Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia,Turkey,Europe,south america,Mid-east and Africa Market.
