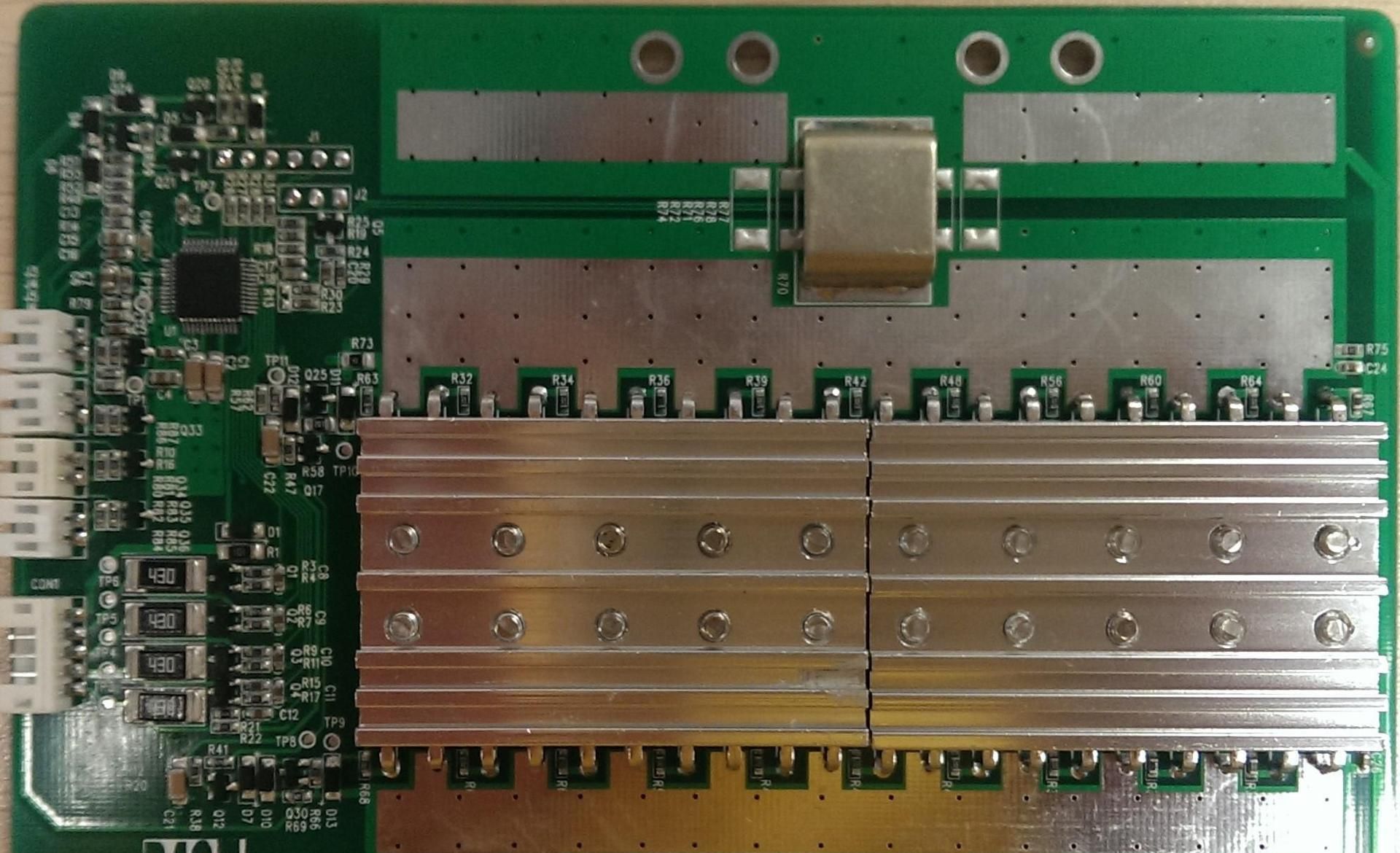

96.2V 26s Li-ion Battery BMS (Battery Management System)

96.2V 26s Li-ion Battery BMS (Battery Management System)
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: L26S
Metal Coating: Tin
Mode Of Production: SMT
Layers: Single-Layer
Certification: CCC
Customized: Customized
Condition: New

Product Description

we can offer 1S-26S BMS For Li-ion LiFePo4, please send message to enquiry for the BMS you need.


Charging voltage    DC:109.2V  CC/CV
Balance voltage for single cell      4.20±0.025V
Balance current for single cell       42±5mA
Current consumption     ≤20μA
Maximal continuous charging current   60A
Maximal continuous Discharging current    100A
Over charge detection voltage for single cell       4.25±0.025V
Over charge detection delay time  0.5S-1.5S
Over charge release voltage for single cell    4.05±0.05V
Over discharge detection voltage for single cell   2.50±0.062V
Over discharge detection delay time     10mS-150mS
Over discharge release voltage for single cell       3.00±0.062V
Over current detection voltage      0.20±0.015V
Over current detection current      70±10A
Detection delay time    5ms-15ms
Release condition   Cut load
Detection condition       Exterior short circuit
Detection delay time      200-500us
Release condition   Cut load
Resistance       Protection  circuitry(MOSFET)     ≤20mΩ
Operating Temperature Range       -40~+85ºC
Storage Temperature Range   -40~+125ºC
Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
