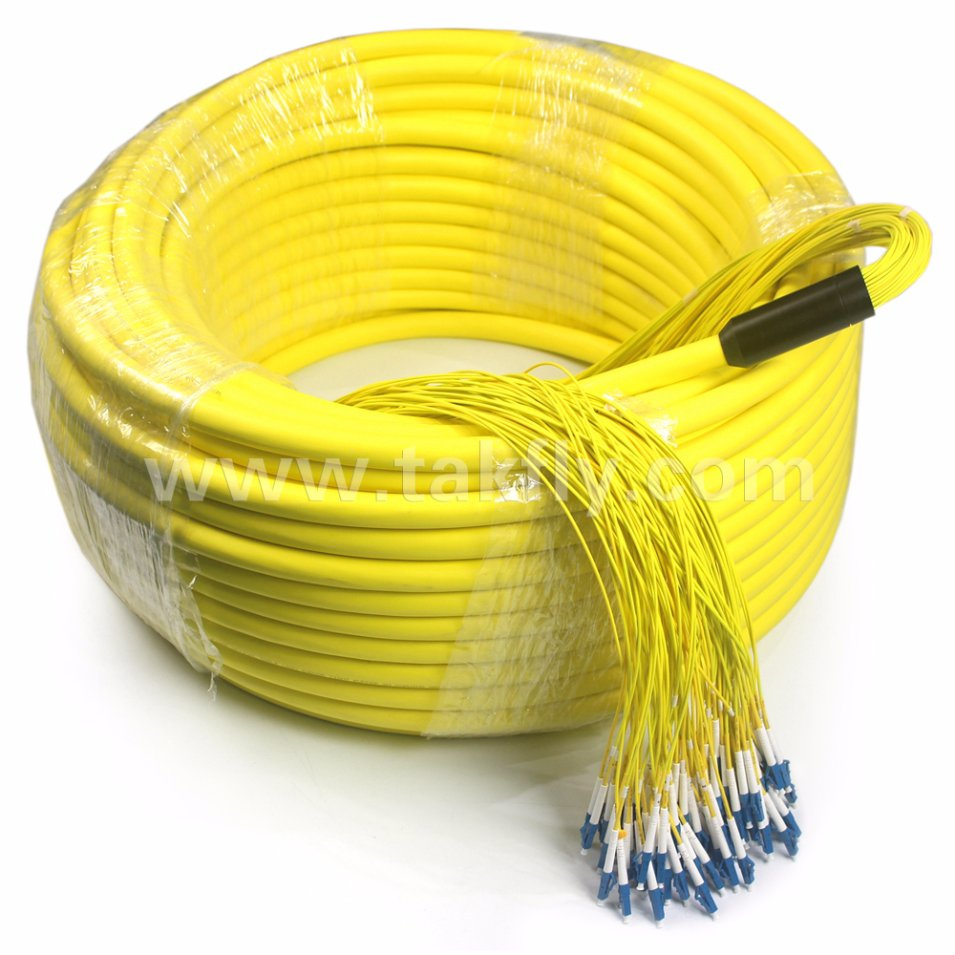

96 Core G652D Indoor Distribution Cable

Name: 96 Core G652D Indoor Distribution Cable
Brand: all-electronics-online.com
SKU: 699909422
Availability: InStock
Rating: 4.6 (80 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,DDP,FCA
Min Order:	1000/Meter
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	96 core GJFJV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor Distribution Cable:	Tight Buffer Cable
FTTX:	Fiber to Home
G657A Fiber Cable:	Indoor Cable
Type:	Bare
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	OEM

Product Description

96 Core G652D Indoor Distribution Cable

Detailed Description
Designed to improve the flexibility and Tensile Load to conveniently use the both of idoor & outdoor installation
The Aramid Yarn is inserted in the number of tight buffered fiber to enhance the Tensile Load
For the cable with over 12 cores, the excellent mechanical & environmental characteristics are provided with the multiple sub unit construction
Description / Features
Single-mode or Multimode optical fiber used
Tight buffered fiber used
Ease of identification using 12 colors
Ease of handling with flexibility & light weight
Coating materials :Flame retardant PVC,PU,LSZH & etc.(Certified with UL-OFNR,GOST)
Operating Temperature Range : -20~70°C

Applications
FTTx Networking
Indoor/outdoor applications
Backbone in a building
LAN
Characteristics

No.of Cores	Outer Diameter (mm)	Weight (kg/km)	Max.Tensile Load (kg.f)	Min.Bending Radius(mm)
No.of Cores	Outer Diameter (mm)	Weight (kg/km)	Max.Tensile Load (kg.f)	Installation	Operation
4	4.7	20	66	D x 20	D x 10
6	5.5	23	66
8	6.1	39	66
12	6.5	40	66
24	12.8	140	132
36	16.0	190	150
48	18.5	260	180

Optical Attenuation

Type/Wavelength(nm)			850	1300	1310	1383	1550	1625
Attenuation (dB/km)	Single-Mode(9/125)		-	-	≤ 0.40	≤ 1310nm	≤ 0.30	≤ 0.35
	Multimode	50.0/125	≤ 3.00	≤ 1.00	-	-	-	-
	Multimode	62.5/125	≤ 3.50	≤ 1.50	-	-	-	-
