96V 8K Solar Battery Controller Integrated Inverter

Name: 96V 8K Solar Battery Controller Integrated Inverter
Brand: all-electronics-online.com
SKU: 830689465
Availability: InStock
Rating: 4.8 (84 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SNS96-8K
Application:	Industrial
Specification:	Normal

Product Description

96V 8000W home use all in one solar controller and inverter

Product introduction :DC and AC isolation design: the power frequency transformer isolation way, safe and reliable, integrated design, built-in efficient photovoltaic controller with pure sine wave inverter, high cost performance.

Function features:DC and AC isolation design: the power frequency transformer isolation way, safe and reliable Integrated design: built-in efficient photovoltaic controller with pure sine wave inverter, high cost performance. Perfect protection function: battery, undervoltage, overvoltage, heat output, output overload, short circuit, battery, battery overcharge, discharge the defence of the filling and a series of alarm and protection function at night. Digital + LED display: dc voltage, inverter, inverter output current, output voltage inverter output frequency, power input voltage, power grid frequency, etc Convenient installation and simple maintenance

Model	SNS96-8000W
Rated power	8000W
DC voltage	96V DC
Input voltage	220V VAC
Input frequency	45-65Hz
Output voltage	220VAC/380vac(three- phase four- wire system)
Output frequency	50Hz +-1%
Switching time	Switching from the main supply mode to the battery mode: 50ms Switching from the battery mode to the mains supply mode: 25ms
Charge current	Maximum 18A
Inverter output protection	Input over voltage/under voltage protection, DC under voltage protection, peak surge protection, overload protection 100-120%, 30s, >120%, 100ms
Noise	<45dB
Ambient temperature for operation	0 to 40 ºC
Ambient temperature for storage	-15 to +15 ºC
Relative humidity for operation/storage	0-90% (no condensation)
Altitude for operation	0-3000m
Attitude for storage	0-15,000m
Net weight/gross weight	29.7/30.7

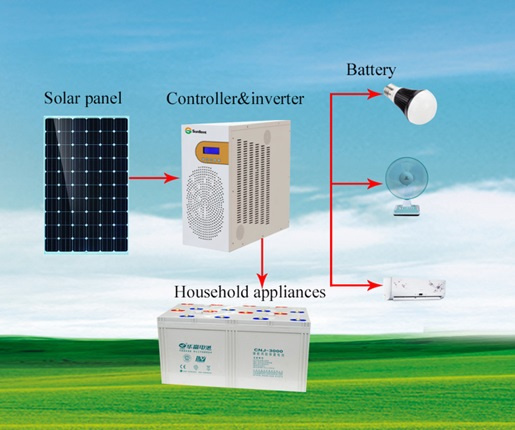

Off-grid Photovoltaic Inverter , is the core component of photovoltaic power systems. It will turn DC power into AC power, and control photovoltaic modules to charge for battery, mainly apply in photovoltaic power station, light, oil, storage complementary power generation system and household photovoltaic power supply system, etc. High conversion efficiency, excellent performance advantages, for the inconvenient traffic, bad environments mountain, pastoral areas, frontier , island and so on without electricity areas use new energy generate power, provide absolutely reliable guarantee.

Jiangsu Sunllent Electrical equipment Co., Ltd is one of the most professional solar power system and solar home system manufacturer in China, with the center of photovoltaic and wind power products, solar inverter, off grid photovoltaic system. Industry covers "energy, electric power, environmental protection, energy saving" four major areas, integrated with "research and development, design, production, sales and system engineering services". Based on independent innovation, has developed a series of products with independent intellectual property rights and leading level.
