| Prod Model: |
ESF |
| Input Voltage: |
110V or 220V |
| Input Plug: |
According to Your Needs |
| Output Voltage: |
According to Your Needs |
| Output Connector: |
According to Your Needs |
| Shell: |
Aluminum |
| Type: |
Lithium Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
According to Your Battery |
| Size: |
300*175*90mm |
| Certification: |
ISO9001 |
Product Description
Specifications:
| size | 344*165*120mm |
| net weight | 6.5kg |
| max output power | 1500W |
| certfication | CE RoHS |
Features:
1. Full automatic,predict,CC,CV,CP,Segmented timing, A variety of charging mode selection. Communication with BMS. .
2. Precise limit of voltage¤t,guarantee full charged and avoid over charger.
3. Over current, over voltage, short circuit, reverse connect protection, overheating protection, safe and reliable
4. LED display, Aluminum shell, beautiful and strong, Vehicle shock, waterproof grade:IP46
5. Active power factor correction PFC, conversion efficiency > 99%, can realize zero pollution to power network, avoid big current impact on power grid.
6. Intelligent temperature compensation, can avoid lead-acid battery charging process appear overcharge or owe charge causes damage. Can greatly prolong the life of battery.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥88 %( full capacity)
Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Apply to:
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car
| ESFP-1800W(PFC/waterproof)Battery charger datasheet |
No. |
Spec |
Constant voltage |
Constant Current |
Conversion/Cut off |
Weight |
Size |
| LA |
Li-Mn |
LiFePo4 |
(Max)A |
LA (A) |
Li(A) | (kg) | (mm) |
| 1 | FP24 | 29.4V | 29.4V | 29.2V | 40 | 8.0 | 4.0 | 6.5 | 344*165*120 |
| 2 | FP36 | 44.1V | 42.0V | 43.8V | 33 | 6.6 | 3.3 |
| 3 | FP48 | 58.8V | 54.6V | 58.4V | 25 | 5.0 | 2.5 |
| 4 | FP60 | 73.5V | 67.2V | 73.0V | 20 | 4.0 | 2.0 |
| 5 | FP72 | 88.2V | 84V | 87.6V | 16 | 3.2 | 1.6 |
| | 1 | Full automatic,predict,CC,CV,CP,Segmented timing, A variety of charging mode selection. Communication with BMS. |
| 2 | Precise limit of voltage¤t,guarantee full charged and avoid over charger. |
| 3 | Over current, over voltage, short circuit, reverse connect protection, overheating protection, safe and reliable |
| 4 | LED display, Aluminum shell, beautiful and strong, Vehicle shock, waterproof grade:IP46 |
| 5 | Active power factor correction PFC, conversion efficiency > 99%, can realize zero pollution to power network, avoid big current impact on power grid. |
| 6 | Intelligent temperature compensation, can avoid lead-acid battery charging process appear overcharge or owe charge causes damage. Can greatly prolong the life of battery. |
| 7 | CE&RoHS certified,Safety and Hige Quanlity |
| Cut-off point Li battery is 5% of CC,and it can be set between 3%-10%. |
We adopt high -rate switching mode technology.Our charger's advantages are high quality,stable,smart,portable and effcient(up to 93%).It has aluminium case,elegant appearance,light weight and small size.We own high-level developing engineers and manufacturing staffs and have abilty to manufacture large order.

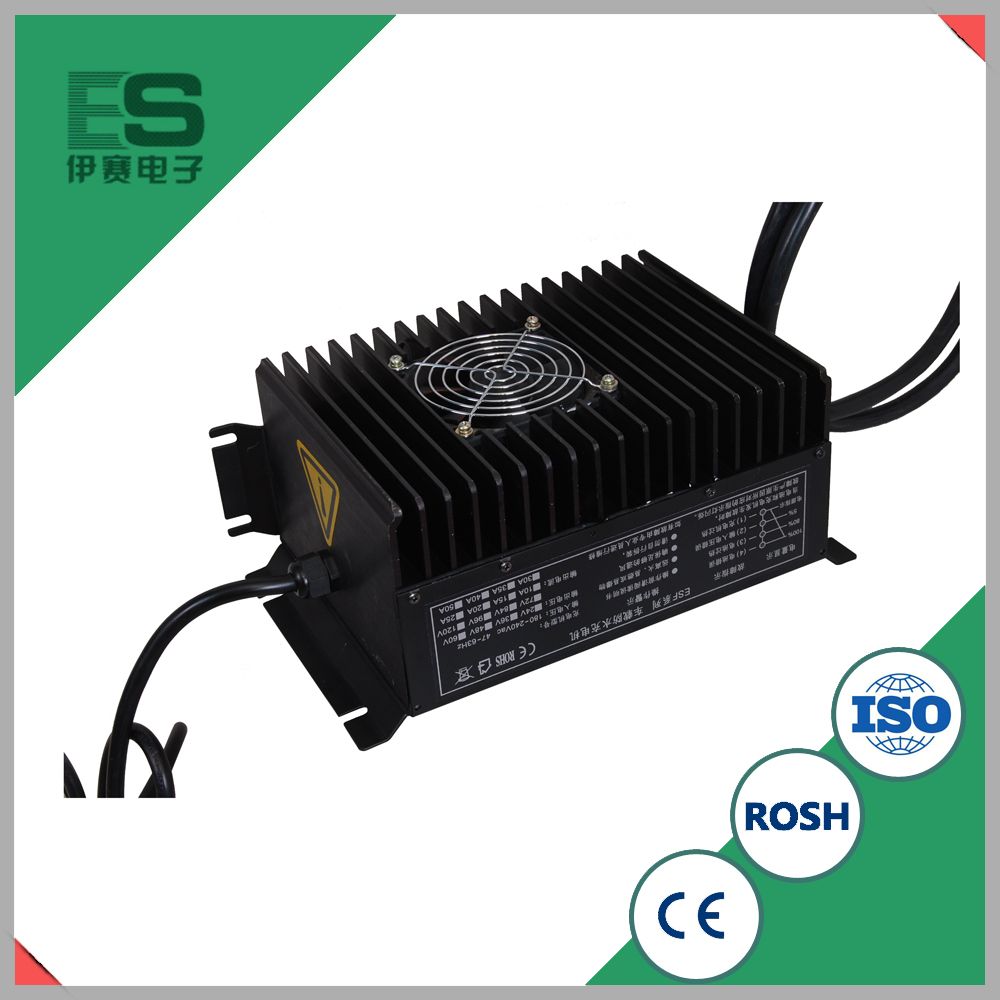

60V Programmable Lead acid Battery Charger with CE&ROSH
JINAN E-SHINE ELECTRONICS Co., Ltd was founded in January, 2009. We are specialized in manufacturing lithium battery chargers which can be largely applied for E-motorcycles, E-sweepers and E-forklifts. We adopt high-rate switching mode technology. Our chargers are high quality, stable, smart, portable and efficient (up to 93%). They have Aluminium case, elegant appearance, light weight and small size.
We own high-level developing engineers and manufacturing staff, and have ability to handle large orders. Our company has a group of engineers who have been in this field for more than 40 years both in production and management, and a group of young and knowledgeable people with doctor degrees who are skilled in high-tech and innovative thinking. Our company also offers tailor-made products according to customers' requirements. OEM is ok with us.
Now our company has supplied high quality, high stable and reliable chargers for North America, Europe and Asia, such as the United States, Canada, Mexico, Germany, Italy, Sweden, Portugal, Japan, South Korea and Taiwan area. All of our products have passed CE, RoHS certification.
