96W 2.4A 20~40V Rainproof Outdoor Constant Current LED Driver

Name: 96W 2.4A 20~40V Rainproof Outdoor Constant Current LED Driver
Brand: all-electronics-online.com
SKU: 804287185
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	US $ 17.03-18.03/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD096-1TAF1-40A
Output Power:	96W
Output Current:	2.4A
Output Voltage:	20~40V
Ingress Protection:	IP67
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	230X49X40.5 mm
Brand:	Fsp-Powerland

Product Description

96W 2.4A 20~40V Rainproof Outdoor Constant Current LED Driver

PLD096-1TAF1-40A offers constant current drivers with wide-range dimmable output current
and 90~305Vac universal input.
The output current of this series is up to 2.4A, and designed for Outdoor applications.

Applications
Outdoor LED lights
Street lights, high bay and low bay lights, LED panels

Features
100,000 hours lifetime at 70oC Tcase

7 years warranty at 70oC Tcase
IP67 ingress protection

Constant current output
Universal input voltage: 90~305Vac

Safety according to UL1310, UL8750, & EN61347-2-13
UL Class 2 Output
Surge voltage rating: L-N 2kV, L/NGND 4kV

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD096-1TAF1-40A
Output Voltage	20~40V
Output Current	2.4A
Output Power	96W
Max. Current Ripple	200mA
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.3A
Max. Input Power	113W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%
Max. Open Circuit Voltage	43V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp, and Type TL
Working Temperature	-40~+70oC
Max. Case Temperature	90oC
Surge Protection	2kV/4kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	230x49x40.5 mm (9.06x1.93x1.59 inch)
Mounting Length	243 mm (9.57 inch)
Overall Length	258 mm (10.16 inch)
Weight	0.87 kg (1.91 lb)
Life Time	100,000 hours @ full load, 70oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

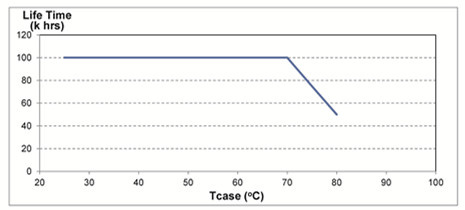

Life Time vs. Case Temperature
