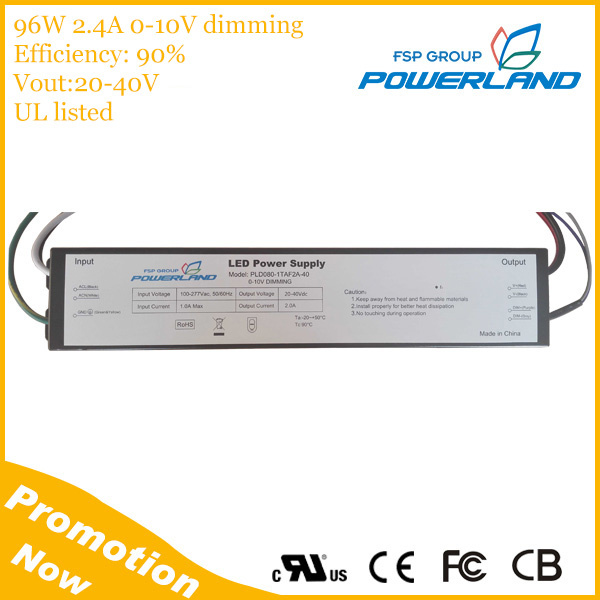

96W 2.4A Cc Dimming LED Driver with 24-40V Output

Name: 96W 2.4A Cc Dimming LED Driver with 24-40V Output
Brand: all-electronics-online.com
SKU: 802386815
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	US $ 14.5-1550/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD096-1TAF2A-40
Dimming Model:	0-10V Dimming
Usage:	Digital Products
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Conventional Step-down Transformer
Power Supply Voltage:	90VAC-305VAC
Brand:	Fsp-Powerland

Product Description

UL Listed 80W 2400mA Constant Current Led Driver
0-10V Dimming

PLD096-1TAF2A-40 offers constant current drivers with wide-range dimmable output current and 90-305Vac universal input.
The output current of this series are up to 700mA, and designed for 0-10V dimming applications.

Applications
Indoor LED lights
High bay and low bay lights, LED panels

Specification

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
90~305Vac	80W	20-40V	2.4A	90%	90ºC	1.3A	113W	<20%	>0.95

* Based on 25ºC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.

Features
100,000 hours lifetime at 70ºC Tcase
5 years warranty at 70ºC Tcase
Constant current output
Compatible with 0-10V dimming (A version)
Universal input voltage:90~305Vac
Safety according to UL1310, UL8750 & EN61347-2-13
UL Class 2 output
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD096-1TAF2A-40
Output Voltage	20~40V
Output Current	2400mA
Dimming	0~10V Dimming
Output Power	96W
Max. Current Ripple	200mA
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.3A
Max. Input Power	113W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%
Max. Open Circuit Voltage	43V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet, and Type TL
Working Temperature	-20~+60ºC
Max. Case Temperature	90ºC
Surge Protection	1kV/2KV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	215x42x30 mm (8.46x1.65x1.18 inch)
Mounting Length	228mm (8.98 inch)
Overall Length	242 mm (9.53 inch)
Weight	0.65kg (1.43lb)
Life Time	100,000 hours @ full load, 65ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Electrical Specification

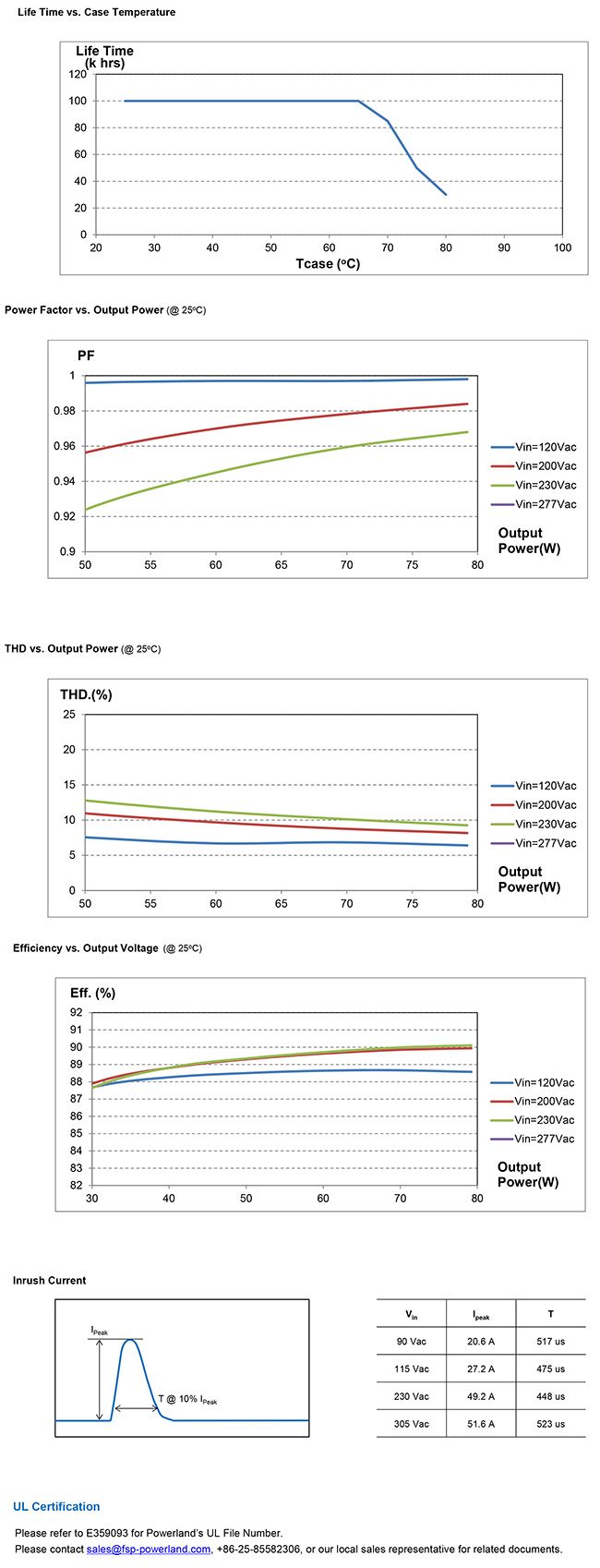

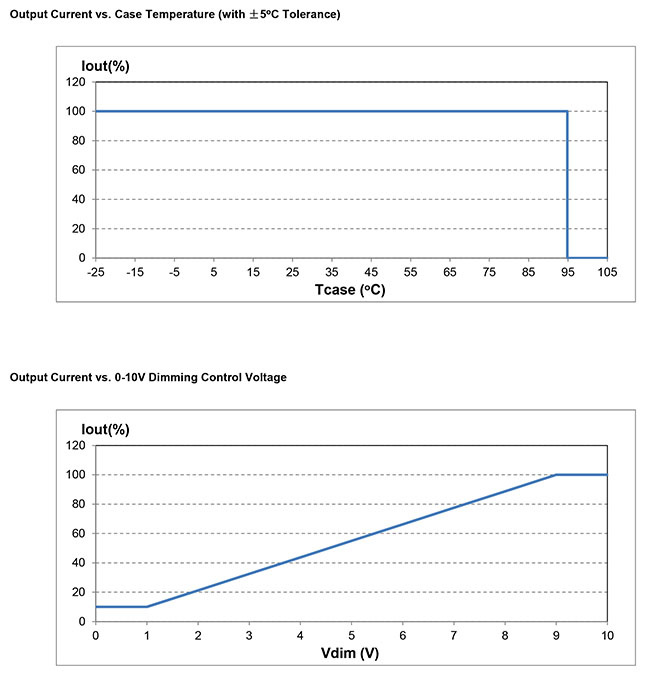

Performance Characteristics (Test wtih PLD080-1TAF2-24)

Glance at Powerland

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
