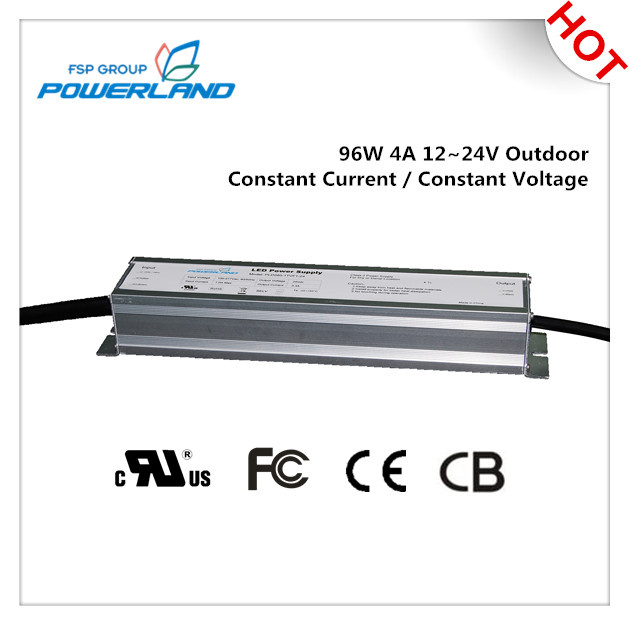

96W 4A Outdoor Rainproof Constant Current LED Driver

Name: 96W 4A Outdoor Rainproof Constant Current LED Driver
Brand: all-electronics-online.com
SKU: 802790515
Availability: InStock
Rating: 4.8 (142 reviews)

Price:	US $ 18.03-28/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD096-1TAF1-24S
Output Power:	96W
Efficiency:	90%
Ingress Protection:	IP67
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	227X49X40.5 mm
Brand:	Fsp-Powerland

Product Description

96W 4A Outdoor Constant Current Rainproof LED Driver

PLD096-1TAF1-24S offers constant current/Constant Voltage drivers with wide-range dimmable output current
and 90~305Vac universal input.
The output current of this series is up to 4A, and designed for Outdoor applications.

Applications
Outdoor LED lights
Street lights, high bay and low bay lights, LED panels

Features

>70,000 hours lifetime at 75oC Tcase

>7 years warranty at 75oC Tcase
IP67 ingress protection

Constant current output
Universal input voltage: 90~305Vac
UL Class 2 Output

Safety according to UL1310, UL8750,& EN61347-2-13
Surge voltage rating: L-N 4kV, L/NGND 4kV

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD096-1TAF1-24S
Output Voltage	12~24V
Output Current	4A
Output Power	96W
Max. Current Ripple	200mA
Max. Voltage Ripple	±0.5%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.3A
Max. Input Power	113W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%
Max. Open Circuit Voltage	26V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp, and Type TL
Working Temperature	-40~+70oC
Max. Case Temperature	90oC
Surge Protection	L-N 4kV, L/N-Earth 4kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	227x49x40.5 mm (8.949.06x1.93x1.59 inch)
Mounting Length	240 mm (9.45 inch)
Overall Length	253 mm (9.96 inch)
Weight	0.87 kg (1.91 lb)
Life Time	>50,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

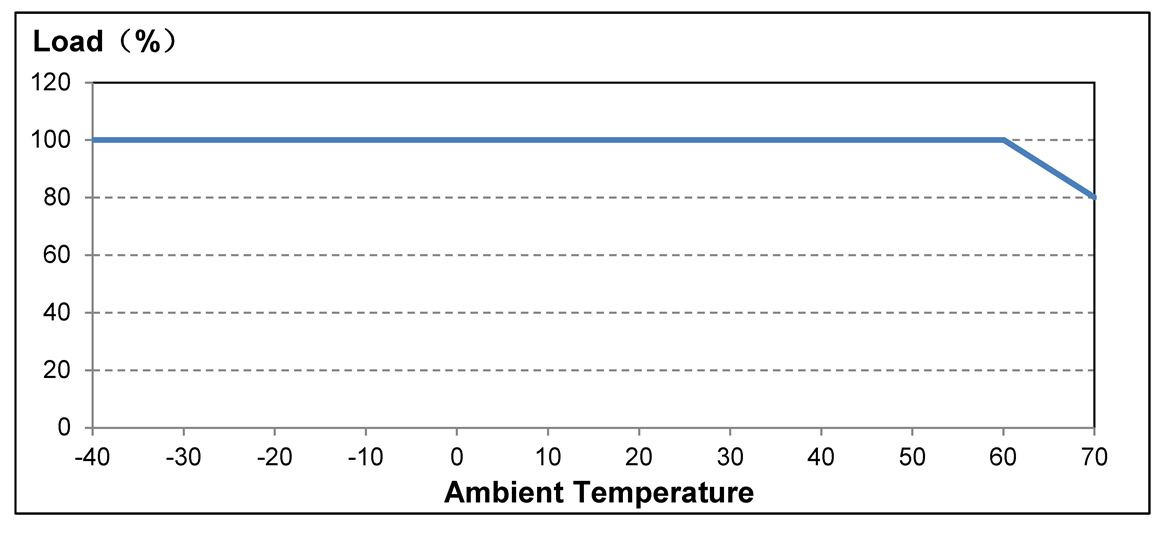

Derating Curve

Static Characteristics

Performance Characteristics

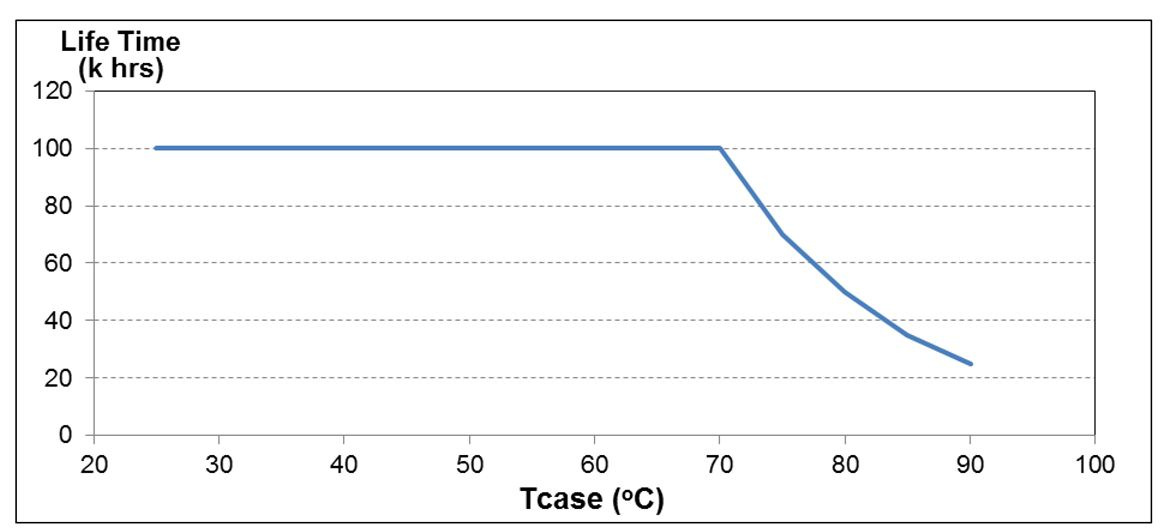

Life Time vs. Case Temperature

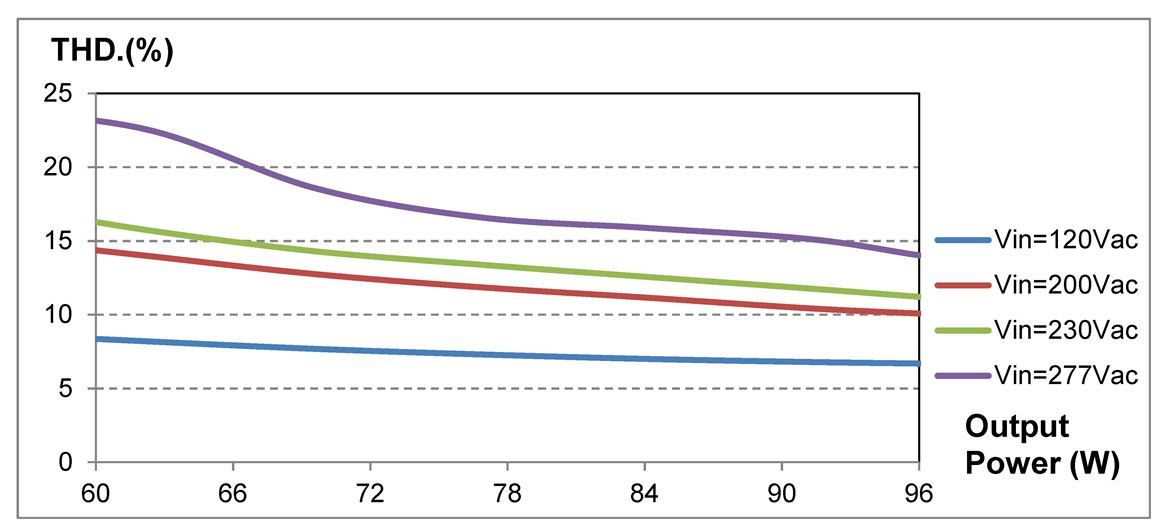

THD VS. Output Power

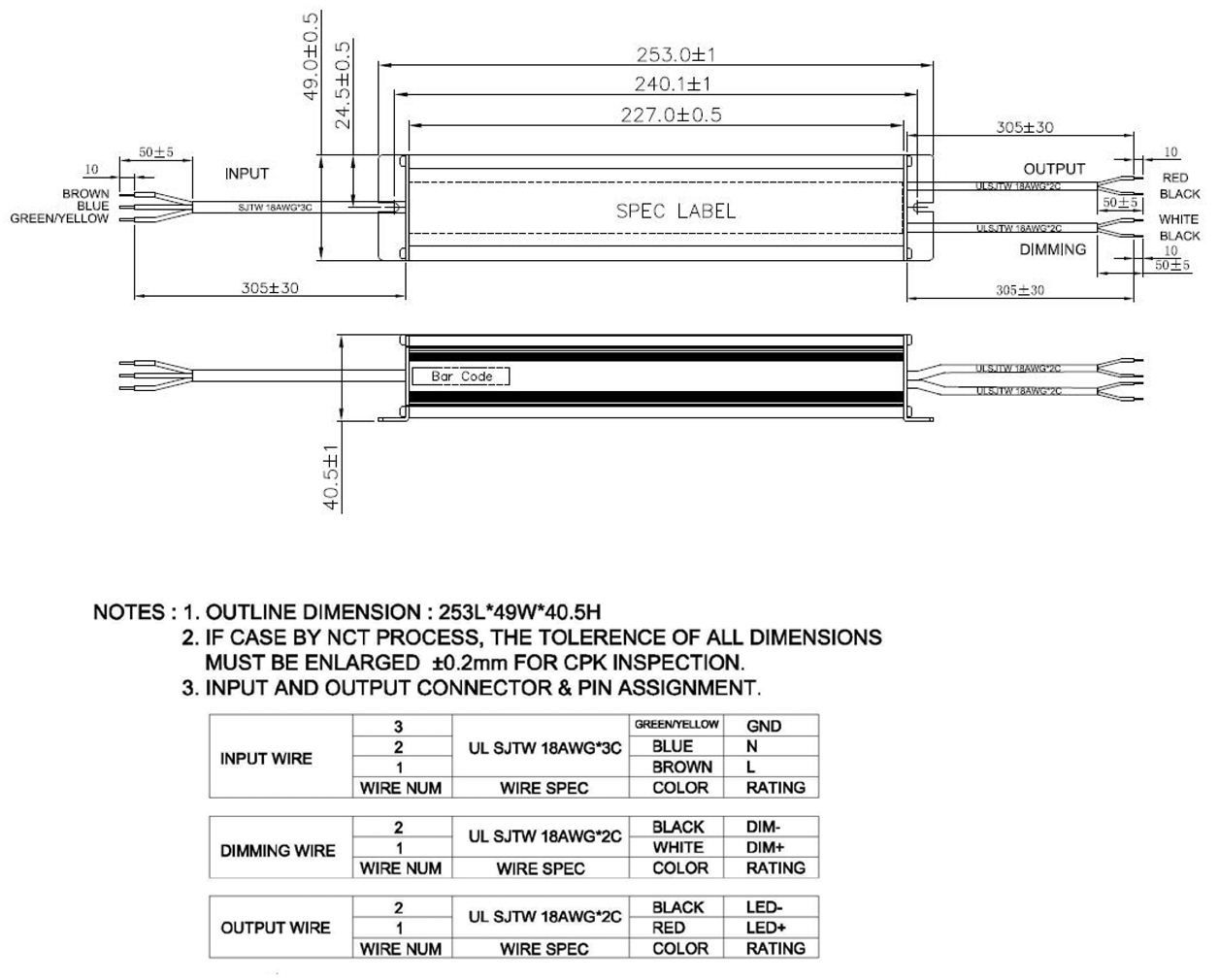

Mechanical Specification
