99.95% Pure Molybdenum Sheet (polished surface) , Moly Plate, Mo Foil

Name: 99.95% Pure Molybdenum Sheet (polished surface) , Moly Plate, Mo Foil
Brand: all-electronics-online.com
SKU: 673313422
Availability: InStock
Rating: 4.7 (73 reviews)

Price:	US $ 60-90/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	molybdenum sheet
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	10.2g/cm3
Surface:	Polished
Thickness:	From 0.1 to 200mm
Width:	10-800mm
Length:	3000mm Max
Usuage:	Electronics, Vacuum Equipment, Semiconductor
Type:	Molybdenum Plate
Powder:	Not Powder

Product Description

Mo has a unique property of which it's melting point can reach 2610C, it is widely applied in high temperature vacuum furnace melting environment such as sapphire growing furnace, quartz glass melting furnace, and rare earth melting furnace. The working temperature of Mo sheet is above 1500.

Physical and chemical properties
(1) Density: 10.2g/cm3
(2) Surface roughness: < 1.6
(3) Purity:Mo99.95%min.
(4) Application temperature environment:1500~1800

Specifications:
Thickness: 0.1mm to 200mm
Width: 10mm to 800mm
Length: 3000mm max

Characteristics

High melting point
High strength
Outstanding thermal conductivity
Excellent resistance to oxidation at high temperatures
Excellent resistance to electrochemical corrosion

Specifications:

Molybdenum sheets/plates
Thickness(mm)	tolerances(mm)	width(mm)	tolerances(mm)	length(mm)	tolerances(mm)	flatness(%)
0.1mm	±0.01	600mm	±1mm	2000mm	±5mm	< 2%
0.2mm	±0.02	600mm	±1mm	2000mm	±5mm	< 2%
0.3mm	±0.02	600mm	±1mm	2000mm	±5mm	< 2%
0.4mm	±0.03	600mm	±1mm	2000mm	±5mm	< 2%
0.5mm	±0.03	600mm	±1mm	2000mm	±5mm	< 2%
0.8mm	±0.05	600mm	±1mm	2000mm	±5mm	< 2%
1mm	±0.06	600mm	±1mm	2000mm	±5mm	< 2%
1.5mm	±0.06	600mm	±1mm	2000mm	±5mm	< 2%
2mm	±0.06	600mm	±1mm	2000mm	±5mm	< 2%
3mm	±0.2	500	±1mm	500	±2mm	< 2%
4mm	±0.2	500	±1mm	500	±2mm	< 2%

Test analysis:

Element	W/%	Element	W/%
Pb	<0.0001	Al	<0.0001
Bi	<0.0001	Si	<0.001
Sn	<0.0001	Ca	<0.001
Sb	<0.0001	Mg	<0.001
Cd	<0.001	P	0.0002
Fe	0.0050	C	0.0016
Ni	0.0007	N	0.0020
O	0.0050	Mo	≮99.98

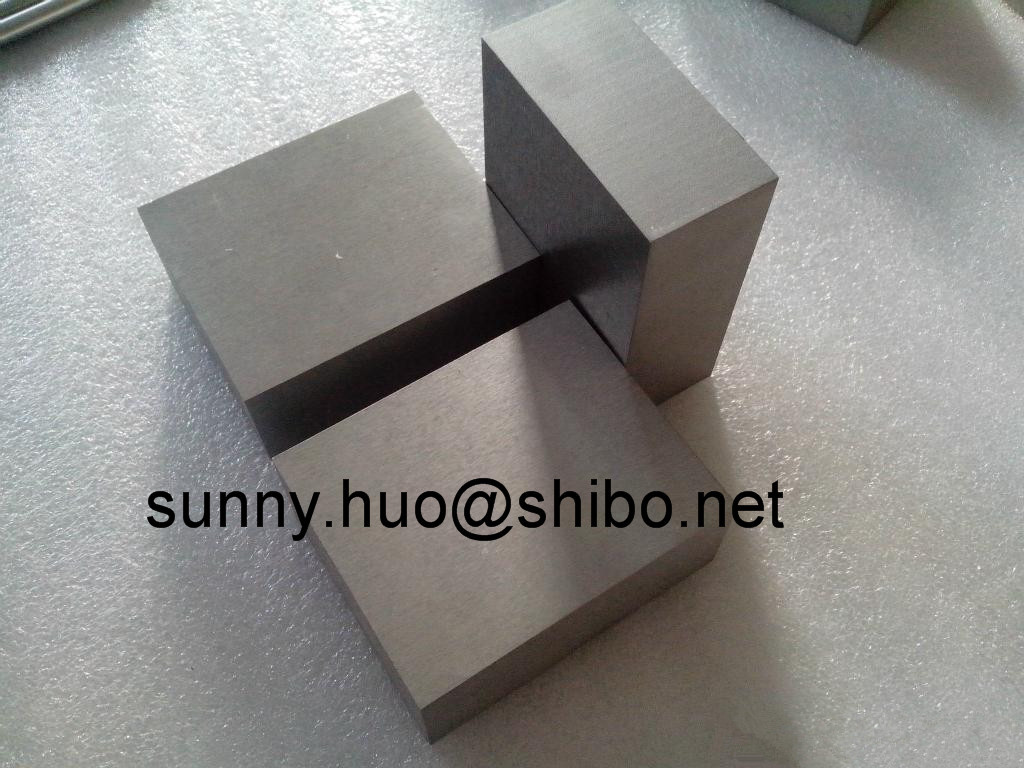

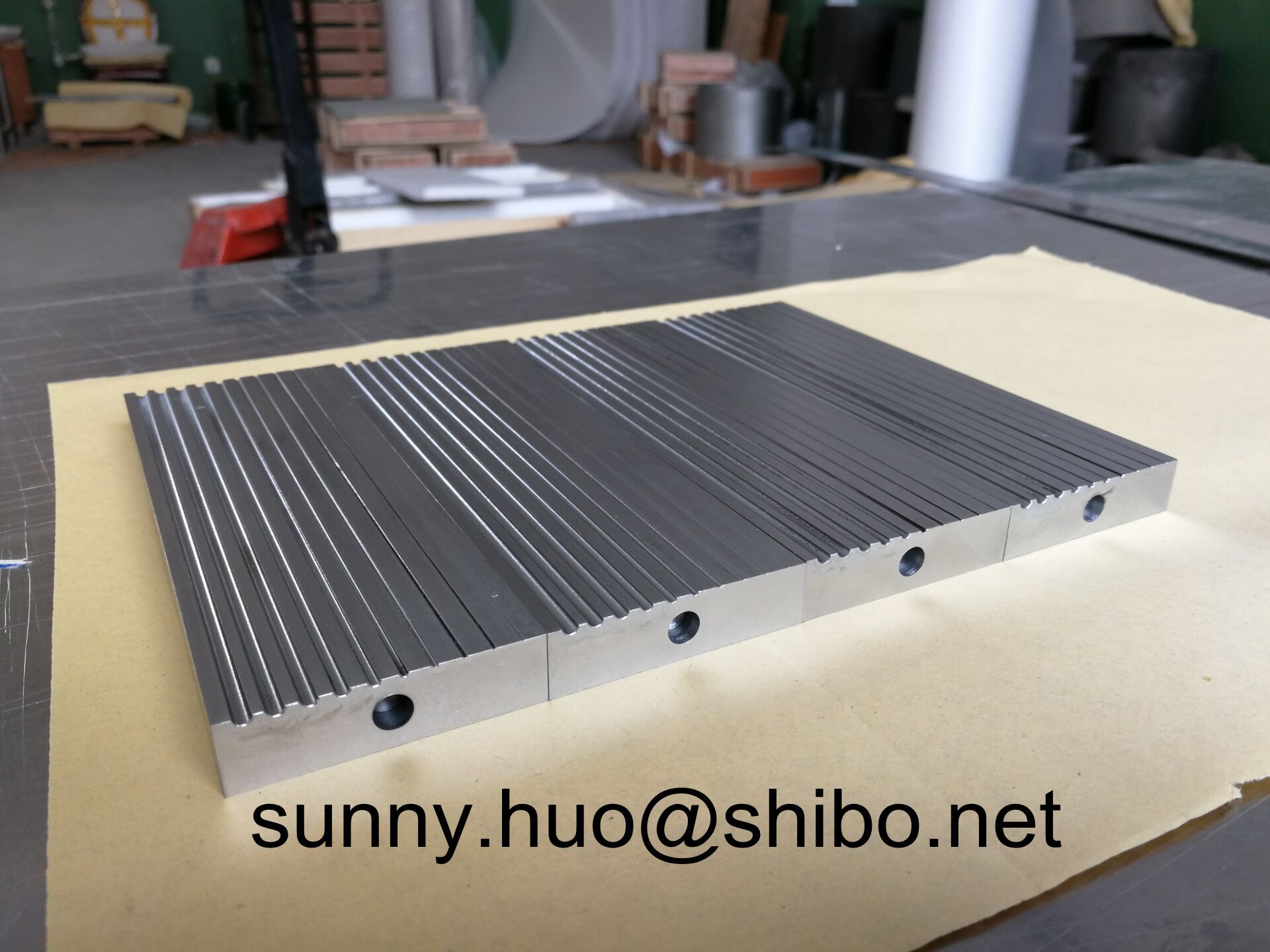

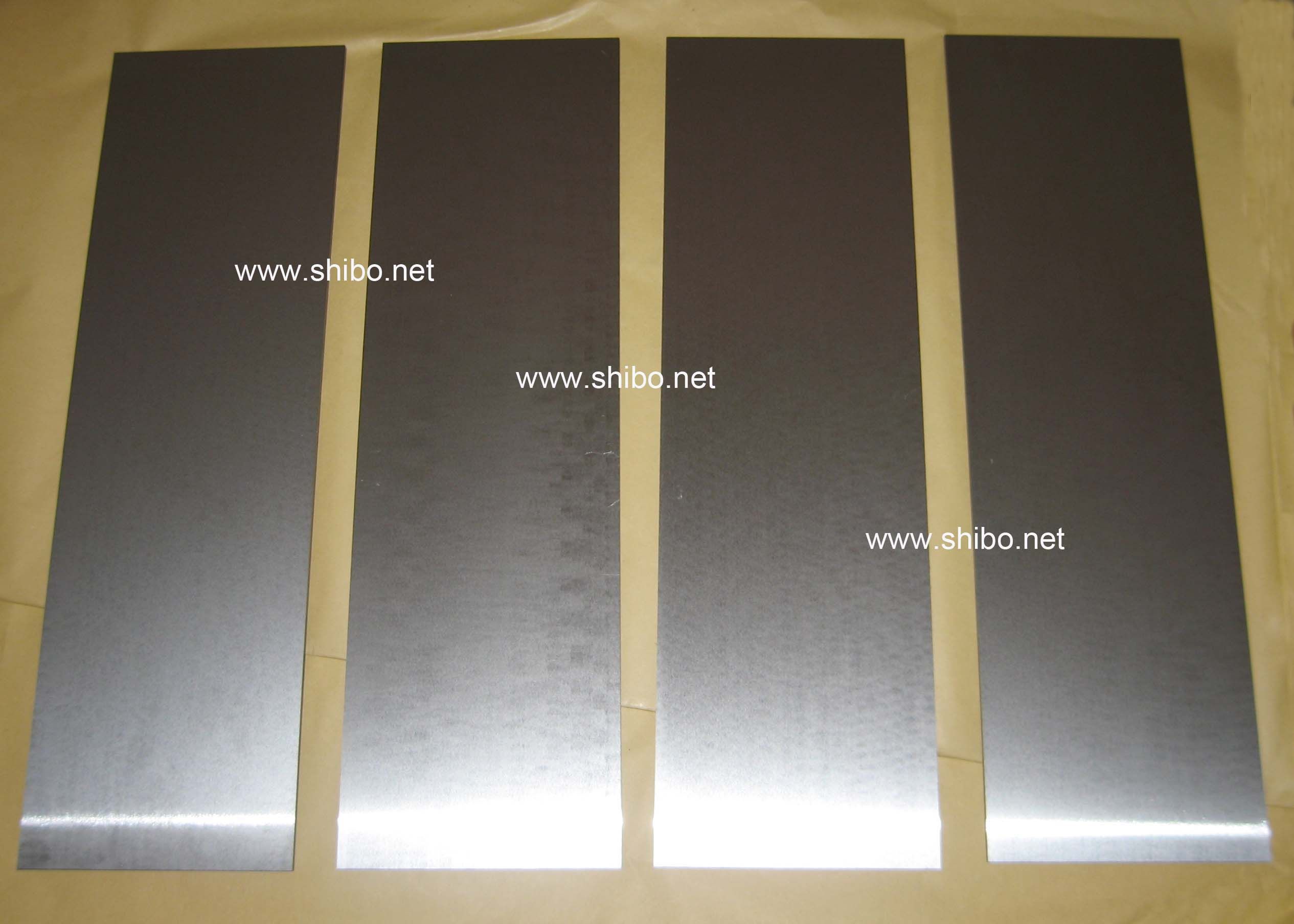

Product picture

Application: Electronics, illumination, vacuum plating, medical devices, semiconductor, etc.

Packing details

Shipment Methods: Sea or Air transportation, train or express

Payment Methods
1) L/C ; 2) T/T ; 3) Paypal ; 4) Money Gram ; 5) Western Union

Other main products

Now contact with us for discount price and best service!

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.

Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.

Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.

Zhengzhou Shibo values product quality and keeps pursuing excellent quality. Holding the concept of "Creating the value for customers and seeking for development with mutual benefit", Zhengzhou Shibo will sincerely serve the customers at home and abroad with quality products for a better future.

We sincerely welcome all the friends at home and abroad to visit our company.
