| Prod Model: |
35BYGE001-A-7 |
| Motor Series: |
35 Byge |
| Step Angle: |
0.9 Degree |
| Shaft End Length: |
7mm (0.27 in) |
| Shaft: |
Plain Shaft |
| Connectors: |
Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Magnetic-Electric |
| Brand: |
Shengyang |
Product Description

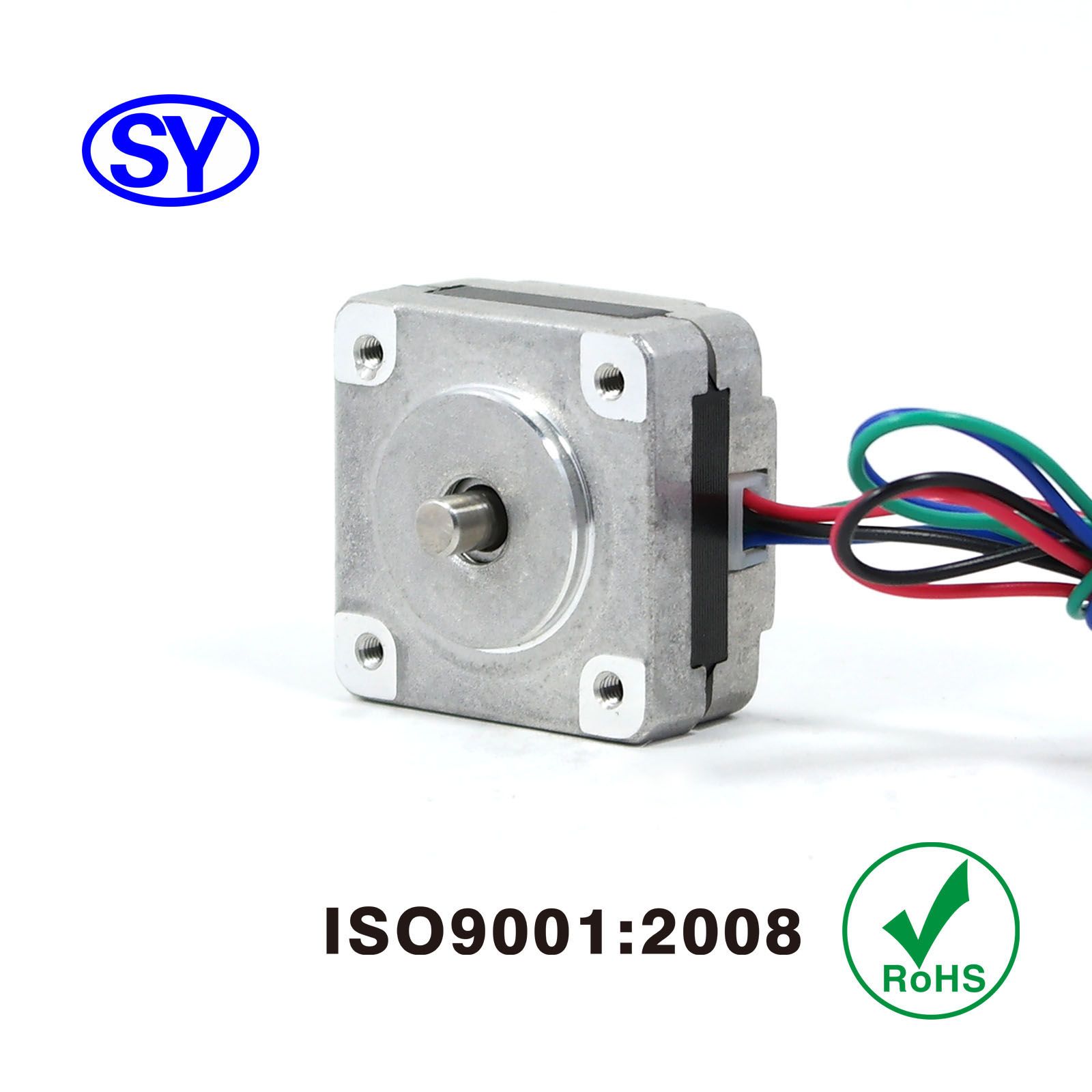

0.9deg 35 MM (NEMA 14 ) Stepper Electrical Motor for CNC
Features:High Accuracy
Low Noise
Smooth MovementProduct Description:
1. Specifications:
Motor Model: 35BYGE001-A-7
Step Angle: 0.9°± 5% full step, no load
Shaft End Length: 7mm (0.27 in)
Shaft: Plain Shaft
Connectors: Lead Wires
Ambient Temperature: -24ºC - +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100mΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA
2.Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all products can be customized, welcome to contact us for more details.
Contacts: Mr. Kanix Ik
Mobile: (+86) 1552 1524 907
shengyangmotor.en.made-in-china.com

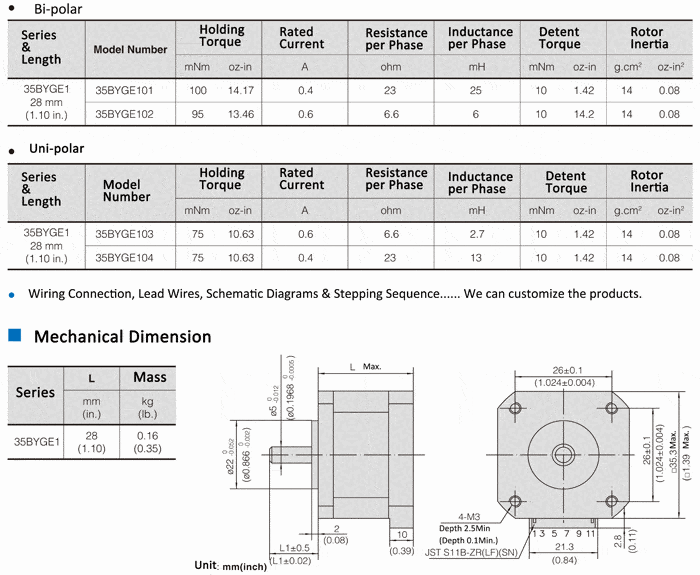

Series
&
Length | Model
Number | Holding
Torque | Rated Voltage /
Rated Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
35BYGE1
21.8 mm
(0.86 in) | 35BYGE101-B-9D | 90 12.74 | 0.3 | 25 | 29 |
35BYGE1
21.8 mm
(0.86 in) | 35BYGE101-B-21 | 65 9.20 | 0.3 | 25 | 25 |
35BYGE3
29.8 mm
(1.18 in) | 35BYGE301-B-13 | 150 21.24 | 0.4 | 22 | 50 |
35BYGE3
29.8 mm
(1.18 in) | 35BYGE306-B-15 | 130 18.4 | 0.4 | 22.5 | 48 |
35BYGE3
29.8 mm
(1.18 in) | 35BYGE306-B-28 | 130 18.4 | 0.4 | 22.5 | 48 |
35BYGE3
29.8 mm
(1.18 in) | 35BYGE307-B-28 | 100 14.16 | 0.38 | 25 | 36 |

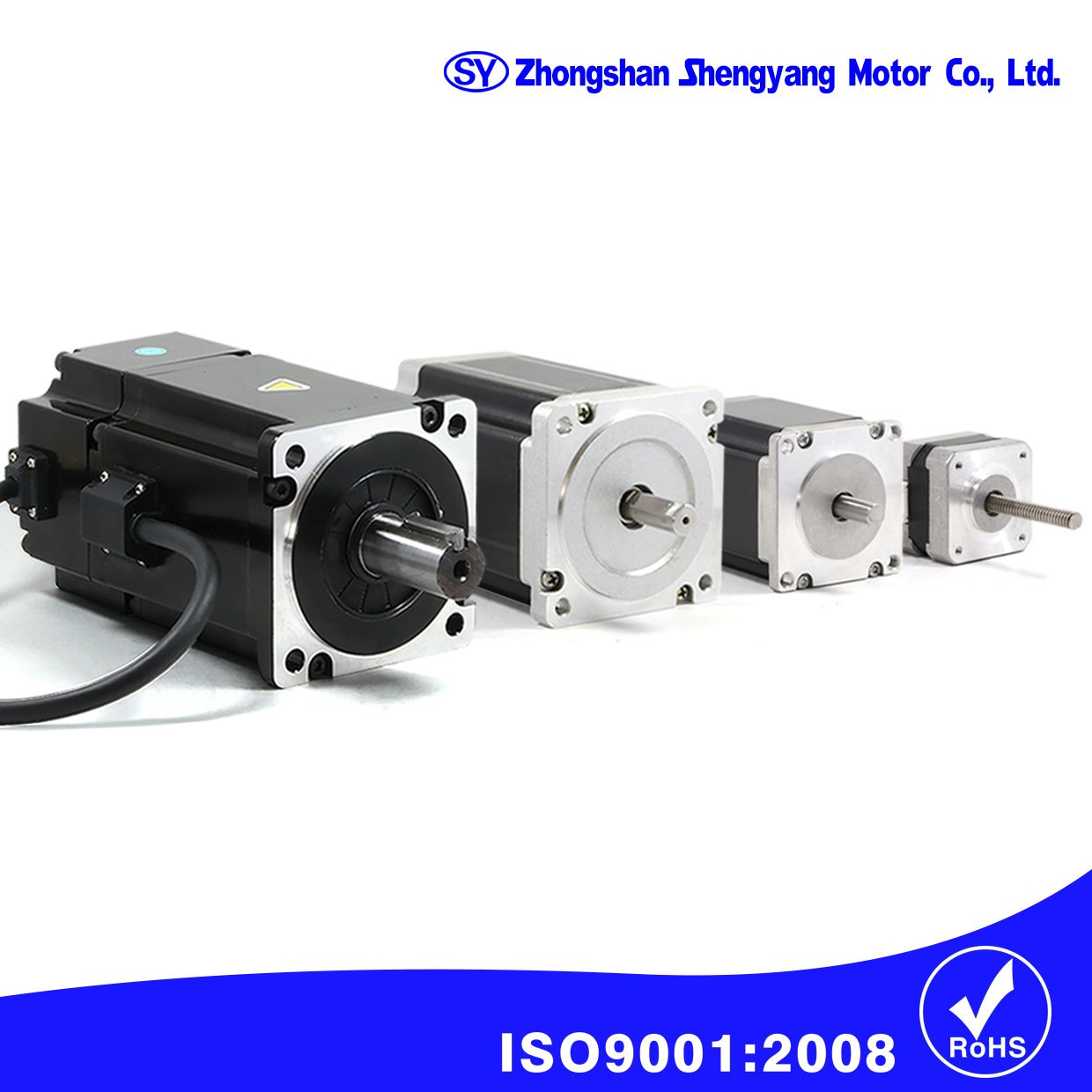

Established in 2011, Shengyang Motor Co., Ltd is a professional manufacturer which produces, researches, develops, and sells various of stepping motors. It is well located in Zhongshan, Guangdong--in the Pearl River Delta where is very beautiful and wealthy with convenient communication.
