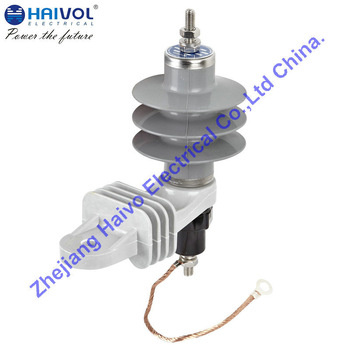

9kv Lightning Arrester

Name: 9kv Lightning Arrester
Brand: all-electronics-online.com
SKU: 825744085
Availability: InStock
Rating: 4.7 (49 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HAIVO
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	B Type Insulator
Color:	Grey
Brand:	Haivol

Product Description

Specifications
Pocelain Surge Arrester
1.Rated volt:3-36KV
2.Ratings:up to 220kv
3.Certificates:ISO9001:2008
4.standards:IEC60099-4

Porcelain Housed Metal-Oxide Surge Arrester without GAPS (3-36kv)
1.Application: For protecting rated voltage up to 220kV power transmission & distribution system from over-voltage.
2.Features:
Reliability and excellent protection based on years of experience and expertise in surge protection.
Good anti-moisture capability, resistant to pollution.
GIS metal oxide surge arrester, composite metal oxide surge arrester and porcelain metal oxide surge arresters are available.
Long life and lightweight.
Easy installation and maintenance.
Good sealing capability to ensure reliable operation.
High energy absorption ability.

3.lightning arrester Technical Specification:

Type	Rated voltage of arrester KV	Nominal voltage of system (virtual value)KV	D.C(U1mA) reference voltage KV not less than	Nominal discharge current	Max residual voltage(peak)			Current impulse withstand discharge capacity
Type	Rated voltage of arrester KV	Nominal voltage of system (virtual value)KV	D.C(U1mA) reference voltage KV not less than	Nominal discharge current	Steep current impulse KV	Lightning impulse current KV	Switching current impulse KV	2000μs (A)	4/10μs (KA)
Y1.5W-0.28/1.3	0.28	0..24	0.6	1.5	1.4	1.3		75	25
Y1.5W-0.5/2.6	0.5	0.42	1.2	1.5	2.7	2.6		75	25
Y5W-3/10	3	2.55	5.5	5	11.3	10	8.9	150	65
Y5W-6/10	6	5.2	11	5	22.6	20	17.8	150	65
Y10W-3/10	3	2.55	5.2	10	11.3	10	8.9	250	100
Y10W-6/20	6	5.2	10.8	10	22.6	20	17.8	250	100
Y5W-9/30	9	7.7	16	5	34	30	26.8	150	65
Y5W-11/36	11	9..4	19.5	5	41.5	36	32.7	150	65
Y5W-12/39	12	10.2	21.5	5	45.3	39	35.7	150	65
Y10W-9/30	9	7.7	16	10	34	30	26.8	250	100
Y10W-11/36	11	9.4	19.2	10	41.5	36	32.7	250	100
Y10W-12/39	12	10.2	21.3	10	45.3	39	35.7	250	100
Y5W-15/42	15	12.75	22	5	47.5	42	35.8	150	65
Y5W-18/50	18	15.3	26	5	57	50	43	150	65
Y10W-15/42	15	12.75	22	10	47.5	42	35.8	250	100
Y10W-18/50	18	15.3	26	10	57	50	43	250	100
Y5W-21/62	21	17.1	33.4	5	70	62	54.2	150	65
Y5W-24/70	24	19.5	38	5	80	70	62	150	65
Y10W-21/62	21	17.1	33	10	70	62	54.2	250	100
Y10W-24/70	24	19.5	37	10	80	70	62	250	100
Y5W-36/100	36	30.4	54.5	5	115	100	86.7	150	65
Y10W-36/100	36	30.4	54	10	115	100	86.7	250	100

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
