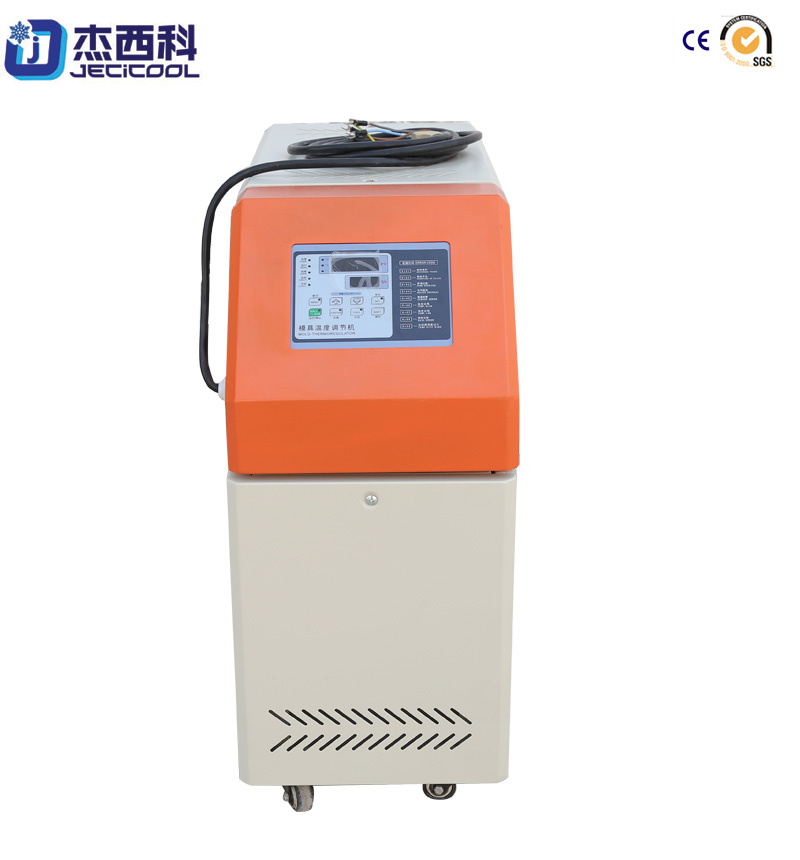

| Prod Model: |
KDE-9KW-W |
| Suit For: |
Injection, Extruder, Blowing Machine |
| Boot Autmatically Exhaust: |
Support |
| Fault Display: |
Support |
| Housing: |
Stainless Steel Tank |
| Motor Capacity: |
0.5HP |
| Power: |
3 Phase 380V 50Hz |
| Heat Conductig Medium: |
Direct Cooling |
| Max Motor Flow: |
120L/Min |
| Cooling Water Pipe: |
1/2" |
| Circulation Water Pipe: |
1/2"X3 |
Product Description
Features:1) Provide two kinds of specifications of water or oil, the customer can choose according to the needs
2) The flow of horizontal pump can be always kept steady, circulate peaceful and its service life keeps long
3) Adopt stainless steel tank, this interior tank will not get rust for long term, which is sure to prevent from any blockade of pipes and keep long-term service of pump
4) Oil type recycle temperature controllers have a level gauge and striking alarm line
5) Micro-computer high-precision automatic temperature control, temperature is stable, fluctuating scope ±1
6) Automatic alarming function, while the system have fault, this device will automatically warn and cut off the electric power , thus to guarantee their safety
7) Compact in size, light in weight, convenient to move and little room to occupy
Details:
Water type Mold temperature controller
1.The Highest use temperature 40-80 Degree, Accuracy: plus or minus 1 degree.
2.Microcomputer touch or button
3.Boot automatically exhaust
4.Water out and return water temperature display
5.OMRON,FUJI,TE control parts
6.Stainless steel pip,reducing pipe addiction and rust scale
7.Fault display,No need professional maintenance
8.Over 100 degree temperature models need to custom-made
Oil type Mold temperature controller
1.Temperature controller adopt touch mode within the reservoir,automatic caculus,can be controlled in precise and reliable within 1 degree.Saving power over 30%.
2.Fast Heating and cooling,Stable temperature
3.Adopt stainless steel tank, this interior tank will not get rust
4.Perfect safety protection system and fault indicator system
5.Adopt import advanced component,long operation life

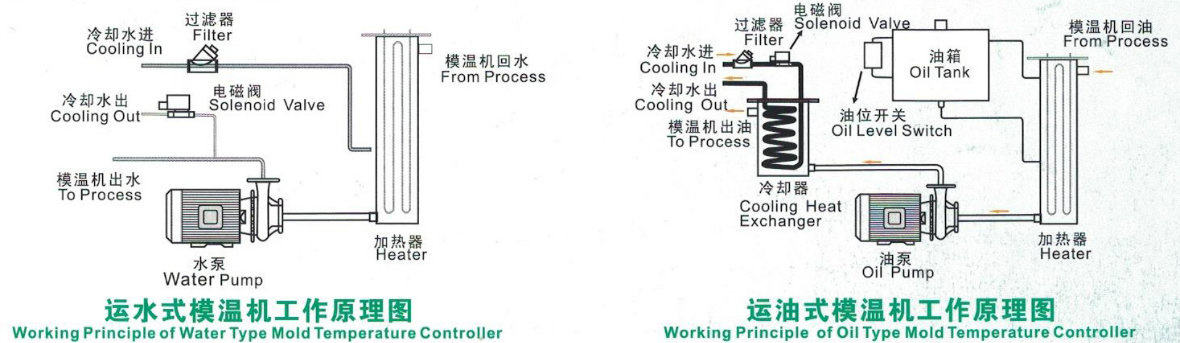

Working Principle:
Application:
Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines, the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tankships, paper making industry, bottle blowing, and so on.
This Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.
Technical Specifications
| Oil temperaturer control |
|
|
|
| Specification Model | KDE-06KW-O | KDE-09KW-O | KDE-12KW-O |
| Temperature control range | 30-100 Degree |
| Control Type | Plus or minus 1 degree |
| Power | 3 Phase 380V 50 HZ |
| Heating conducting Medium | Oil |
| Direct cooling |
| Heating power | 6KW | 9KW | 12KW |
| Motor Capacity | 0.5HP | 0.5HP | 1HP |
| Max Motor Flow | 60L/MIN | 60L/MIN | 120L/MIN |
| Max Motor Pressure | 2.5 KG/CM2 |
| cooling water pipe | 1/2" |
| Circulation water pipe | 1/2"x2 | 1/2"x3 | 1/2"x4 |
| Dimension | 650mmx400mmx650mm | 750mmx400mmx760mm |
| Weight | 45KG | 65KG | 70KG |
| The above products shall be subject to change and improve without any further notice. Special machines can be customized |
| Water temperaturer control |
|
|
|
| Specification Model | KDE-06KW-W | KDE-09KW-W | KDE-12KW-W |
| Temperature control range | 30-100 Degree |
| Control Type | Plus or minus 1 degree |
| Power | 3 Phase 380V 50 HZ |
| Heating conducting Medium | water |
| Direct cooling |
| Heating power | 6KW | 9KW | 12KW |
| Motor Capacity | 0.5HP | 0.5HP | 1HP |
| Max Motor Flow | 60L/MIN | 60L/MIN | 120L/MIN |
| Max Motor Pressure | 2.5 KG/CM2 |
| cooling water pipe | 1/2" |
| Circulation water pipe | 1/2"x2 | 1/2"x3 | 1/2"x4 |
| Dimension | 650mmx400mmx650mm | 750mmx400mmx760mm |
| Weight | 45KG | 65KG | 70KG |
| The above products shall be subject to change and improve without any further notice. Special machines can be customized |
