| Prod Model: |
High Efficiency Strar Series HE33 200K-600Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description

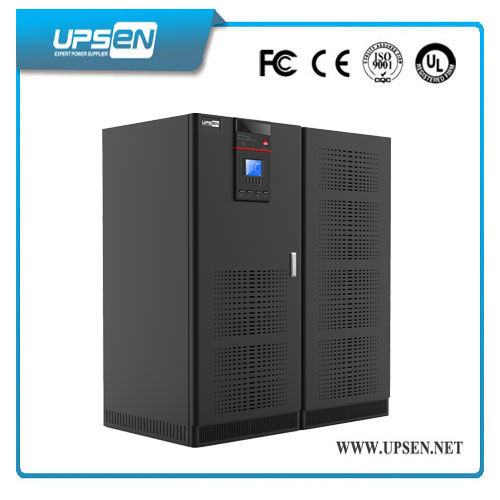

0.9pf low frequency online ups power with input/output filter1:ups, ups power, online ups, 0.9pf ups, low frequency ups, big ups, industry ups, telecom ups, 3 phase ups
2:UPS with Three Phase 380/400/415Vac or 190/208/220Vac Input/Output
3:UPS with parallel function and 0.9 output power factor
4:UPS with 6th generation DSP control
5:UPS with Intelligent battery management
UPS ApplicationMainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.
UPS Key Features1:0.9 output power factor,
2:UP to 6 units in parallel
3:6-inch extra large LCD that display 12 language( English/Russian/Spanish/French)
4:The efficiency of the machine is more than 94%, and reach 98% in ECO mode.
5:6th generation DSP control
6:Intelligent battery management
7:Layered independently-sealed ventilation channel and redundant fan, embedded make it highly efficient to dissipate heat.
8:Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions
9:Extra wide input voltage and frequency range make it adapt to severe power grid environment
10:Standard input/output filter improves the system EMC performance
11:Intelligent battery management maintains battery automatically to prolong the battery life
| Model | HE33 200-400K |
| Rectifier Type | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p |
| Rated Nominal | 120KVA/108KW | 160KVA/144KVA | 200KVA/180KW | 300KVA/270KW | 400KVA/360KW |
| Rated input voltage | 380/400/415VAC 3-phase 4-wire |
| Rated frequency | 50/60HZ |
| Input parameters |
| Input voltage range | ±25% |
| Input frequency range | 45Hz~65Hz |
| Input soft start function | 0-100% 5-300settable |
| Input power factor | >0.98(If harmonic filter is added) |
| Input harmonic current (THDi) | 4.5%(If harmonic filter is added) |
| Bypass |
| Bypass voltage range | -20%~+15% |
| Bypass frequency range | 50/60HZ±10% |
| Output parameters |
| Inverter output voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage stability | ±1%(Steady status),±3%(Transient status) |
| Frequency | 50/60Hz |
| Mains power synchronization window | ±5% |
| Actually measured frequency accuracy (internal clock) | 50/60Hz±0.01Hz |
| Output power factor | 0.9(Output 90kW per 100kVA) |
| Transient response time | <5ms |
| Inverter overload capability | At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s |
| Short circuit current from inverter | 3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds |
| Maximum Bypass capability | 1000% for 100ms |
| Phase shift characteristic | With 100% balanced load | <1° |
| With 100% imbalance load | <1° |
Total harmonic
Distortion(THDv) | 100% linear load | <1% |
|
| 100% non-linear load | <3% |
| System efficiency (full load) | Up to 94% (inverter efficiency is up to 98%) |
| Rectifier output parameters |
| Charger output voltage stability | 1% |
| DC ripple voltage | ≤1% |
| Operating environment |
| Operating temperature range | 0~40°C |
| Storage temperature | -25~70°C(Without battery) |
| Relative humidity | 0~95% No condensation |
| Noise (1m) | 58-68dB |
| Protection level | IP20 |
| Standard | Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3 |
| *Specification changes without further notice |
Competitive Advantages:
1: Three Years' warranty, free Vedio for overseas customers of installation instruction
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
