| Prod Model: |
9v |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ni-MH Batteries |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
9V |
Product Description
Specifications
1, 9v 160mAh nimh battery in recahrgeable batteries
2. OEM/ODM service is available
3, High quality& low price

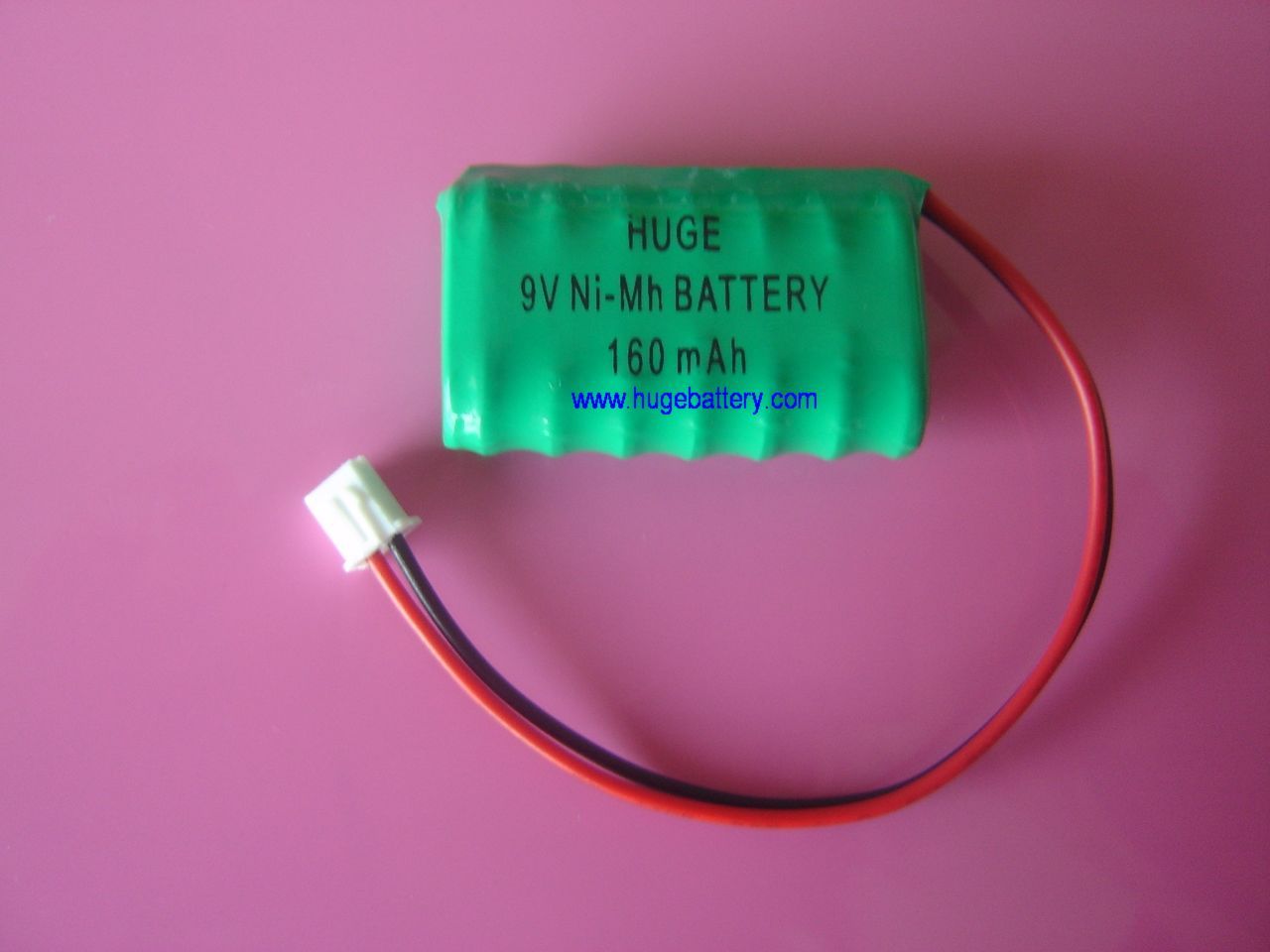

9v 160mAh nimh battery in recahrgeable batteries
1, Type: Nickel Hydrogen Cylindrical Battery
2. Package: Industrial Package, PVC Green
3. Shelf life: 5 years
4. OEM/ODM service is available
5.0% mercury
6. Widely application, especially in industrial use
. 7. Mainly used in LED LIGHTS, monitor instrument and noise control instrument and so on.
| Type | Size | Nominal capacity | Dimensions(mm) | | Standard charge | Time (h) | Rapid charge | Time (h) | Approx weight(g) |
| (mAh) | Height | Diameter | Current (mA) | Current |
| (+0/-1.0) | (+0/-0.5) | | (mA) |
| 18650 | 18650 | 3500 | 65.2 | 18.5 | 350 | 16 | 1750 | 2.4 | 51 |
| 18670 | 18670 | 4200 | 67 | 18.5 | 420 | 16 | 2100 | 2.4 | 64 |
| A | A | 1800 | 50 | 17 | 180 | 16 | 900 | 2.4 | 32 |
| A | 2/3A | 1000 | 28.5 | 17 | 100 | 16 | 1000 | 1.2 | 21 |
| A | A | 2200 | 50 | 17 | 220 | 16 | 1100 | 2.4 | 38 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 4000/8000 | 30/15(min) | 28 |
| AA | AA | 2500 | 50.5 | 14.5 | 250 | 16 | 500 | 7 | 31 |
| AA | AA | 2300 | 50.5 | 14.5 | 230 | 16 | 1150 | 2.4 | 30 |
| AA | AA | 2200 | 50.5 | 14.5 | 220 | 16 | 1100 | 2.4 | 30 |
| AA | AA | 2100 | 50.5 | 14.5 | 210 | 16 | 1050 | 2.4 | 29 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 1000 | 2.4 | 28 |
| AA | AA | 1800 | 50.5 | 14.5 | 180 | 16 | 900 | 2.4 | 28 |
| AA | AA | 1700 | 50.5 | 14.5 | 170 | 16 | 850 | 2.4 | 27 |
| AA | AA | 1600 | 50.5 | 14.5 | 160 | 16 | 800 | 2.4 | 26 |
| AA | AA | 2100 | 50.5 | 14.5 | 210 | 16 | 1050 | 2.4 | 29 |
| AA | AA | 1800 | 50.5 | 14.5 | 180 | 16 | 900 | 2.4 | 27 |
| AA | AA | 1600 | 50.5 | 14.5 | 160 | 16 | 1600 | 1.2 | 26 |
| AA | AA | 1500 | 50.5 | 14.5 | 150 | 16 | 1500 | 1.2 | 25 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 1000 | 2.4 | 28 |
| AA | AA | 1200 | 49 | 14.5 | 120 | 16 | 600 | 2.4 | 23 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 1000 | 2.4 | 28 |
| AAA | AAA | 950 | 44.5 | 10.5 | 95 | 16 | 190 | 7 | 13 |
| AAA | AAA | 800 | 44.5 | 10.5 | 80 | 16 | 400 | 2.4 | 13 |
| AAA | AAA | 850 | 44.5 | 10.5 | 85 | 16 | 170 | 7 | 13 |
| AAA | AAA | 900 | 44.5 | 10.5 | 90 | 16 | 180 | 7 | 13 |
| AAA | AAA | 700 | 44.5 | 10.5 | 70 | 16 | 1400/2800 | 30/15(min) | 15 |
| AAA | AAA | 700 | 44.5 | 10.5 | 70 | 16 | 350 | 2.4 | 12 |
| AAA | AAA | 650 | 44.5 | 10.5 | 65 | 16 | 325 | 2.4 | 13 |
| AAA | AAA | 600 | 44.5 | 10.5 | 60 | 16 | 300 | 2.4 | 12 |
| AAA | AAA | 650 | 44.5 | 10.5 | 65 | 16 | 650 | 1.2 | 13 |
| AAA | AAA | 600 | 44 | 10.5 | 60 | 16 | 600 | 1.2 | 12 |
| AAA | AAA | 600 | 44.5 | 10.5 | 60 | 16 | 600 | 1.2 | 13 |
| AAA | AAA | 600 | 44 | 10.5 | 60 | 16 | 600 | 1.2 | 12 |
| AAA | LL-AAA | 900 | 67 | 10.5 | 90 | 16 | 900 | 1.2 | 17 |
| AAA | AAA | 650 | 44 | 10.5 | 65 | 16 | 650 | 1.2 | 13 |
| C | C | 4000 | 50.5 | 22.5 | 400 | 16 | 2000 | 2.4 | 82 |
| D | D | 8000 | 61 | 32.5 | 800 | 16 | 1600 | 7.5 | 150 |
| D | D | 10000 | 61.5 | 33 | 1000 | 16 | 2000 | 7.5 | 165 |
| D | D | 9000 | 61.5 | 33 | 900 | 16 | 1800 | 7.5 | 155 |
| F | F | 13000 | 91 | 33 | 1300 | 16 | 2600 | 7.5 | 235 |
| SC | SC | 3300 | 43 | 22.5 | 330 | 16 | 3300 | 1.2 | 64 |
| SC | SC | 3000 | 43 | 23 | 300 | 16 | 3000 | 1.2 | 57 |
| SC | SC | 3000 | 43 | 23 | 300 | 16 | 1500 | 2.4 | 52 |
| SC | SC | 2800 | 43 | 23 | 280 | 16 | 1400 | 2.4 | 54 |
| Type | Size | Nominal capacity | Dimensions(mm) | | Standard charge | Time (h) | Rapid charge | Time (h) | Approx weight(g) |
| (mAh) | Height | Diameter | Current (mA) | Current |
| (+0/-1.0) | (+0/-0.5) | | (mA) |
| 18650 | 18650 | 3500 | 65.2 | 18.5 | 350 | 16 | 1750 | 2.4 | 51 |
| 18670 | 18670 | 4200 | 67 | 18.5 | 420 | 16 | 2100 | 2.4 | 64 |
| A | A | 1800 | 50 | 17 | 180 | 16 | 900 | 2.4 | 32 |
| A | 2/3A | 1000 | 28.5 | 17 | 100 | 16 | 1000 | 1.2 | 21 |
| A | A | 2200 | 50 | 17 | 220 | 16 | 1100 | 2.4 | 38 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 4000/8000 | 30/15(min) | 28 |
| AA | AA | 2500 | 50.5 | 14.5 | 250 | 16 | 500 | 7 | 31 |
| AA | AA | 2300 | 50.5 | 14.5 | 230 | 16 | 1150 | 2.4 | 30 |
| AA | AA | 2200 | 50.5 | 14.5 | 220 | 16 | 1100 | 2.4 | 30 |
| AA | AA | 2100 | 50.5 | 14.5 | 210 | 16 | 1050 | 2.4 | 29 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 1000 | 2.4 | 28 |
| AA | AA | 1800 | 50.5 | 14.5 | 180 | 16 | 900 | 2.4 | 28 |
| AA | AA | 1700 | 50.5 | 14.5 | 170 | 16 | 850 | 2.4 | 27 |
| AA | AA | 1600 | 50.5 | 14.5 | 160 | 16 | 800 | 2.4 | 26 |
| AA | AA | 2100 | 50.5 | 14.5 | 210 | 16 | 1050 | 2.4 | 29 |
| AA | AA | 1800 | 50.5 | 14.5 | 180 | 16 | 900 | 2.4 | 27 |
| AA | AA | 1600 | 50.5 | 14.5 | 160 | 16 | 1600 | 1.2 | 26 |
| AA | AA | 1500 | 50.5 | 14.5 | 150 | 16 | 1500 | 1.2 | 25 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 1000 | 2.4 | 28 |
| AA | AA | 1200 | 49 | 14.5 | 120 | 16 | 600 | 2.4 | 23 |
| AA | AA | 2000 | 50.5 | 14.5 | 200 | 16 | 1000 | 2.4 | 28 |
| AAA | AAA | 950 | 44.5 | 10.5 | 95 | 16 | 190 | 7 | 13 |
| AAA | AAA | 800 | 44.5 | 10.5 | 80 | 16 | 400 | 2.4 | 13 |
| AAA | AAA | 850 | 44.5 | 10.5 | 85 | 16 | 170 | 7 | 13 |
| AAA | AAA | 900 | 44.5 | 10.5 | 90 | 16 | 180 | 7 | 13 |
| AAA | AAA | 700 | 44.5 | 10.5 | 70 | 16 | 1400/2800 | 30/15(min) | 15 |
| AAA | AAA | 700 | 44.5 | 10.5 | 70 | 16 | 350 | 2.4 | 12 |
| AAA | AAA | 650 | 44.5 | 10.5 | 65 | 16 | 325 | 2.4 | 13 |
| AAA | AAA | 600 | 44.5 | 10.5 | 60 | 16 | 300 | 2.4 | 12 |
| AAA | AAA | 650 | 44.5 | 10.5 | 65 | 16 | 650 | 1.2 | 13 |
| AAA | AAA | 600 | 44 | 10.5 | 60 | 16 | 600 | 1.2 | 12 |
| AAA | AAA | 600 | 44.5 | 10.5 | 60 | 16 | 600 | 1.2 | 13 |
| AAA | AAA | 600 | 44 | 10.5 | 60 | 16 | 600 | 1.2 | 12 |
| AAA | LL-AAA | 900 | 67 | 10.5 | 90 | 16 | 900 | 1.2 | 17 |
| AAA | AAA | 650 | 44 | 10.5 | 65 | 16 | 650 | 1.2 | 13 |
| C | C | 4000 | 50.5 | 22.5 | 400 | 16 | 2000 | 2.4 | 82 |
| D | D | 8000 | 61 | 32.5 | 800 | 16 | 1600 | 7.5 | 150 |
| D | D | 10000 | 61.5 | 33 | 1000 | 16 | 2000 | 7.5 | 165 |
| D | D | 9000 | 61.5 | 33 | 900 | 16 | 1800 | 7.5 | 155 |
| F | F | 13000 | 91 | 33 | 1300 | 16 | 2600 | 7.5 | 235 |
| SC | SC | 3300 | 43 | 22.5 | 330 | 16 | 3300 | 1.2 | 64 |
| SC | SC | 3000 | 43 | 23 | 300 | 16 | 3000 | 1.2 | 57 |
| SC | SC | 3000 | 43 | 23 | 300 | 16 | 1500 | 2.4 | 52 |
| SC | SC | 2800 | 43 | 23 | 280 | 16 | 1400 | 2.4 | 54 |
Your best partner and friend, Kingbolai Battery Industrial Co., Ltd., established in 1997, is a professional battery manufacturer and exporter with 15 years' experience! Our factory with an area of over 3, 500 square meters and over 800 staff, including over 120 advanced R&D engineers.
Our company has introduced several advanced fully automatic battery production lines, including the FUJI production lines from Japan and the Hibar production lines from Canada, and the annual output is about 550 million pieces. Our factory is supported by advanced equipment, scientific management system, and 100% inspection quality control. Our battery products execute IEC60086 series standards. You can enjoy our quality guarantee.
In addition to dedication to specialization in battery quality, we further pursue better service and prices offered to customers. We can satisfy customers' requirements in product design, packaging and technical issue with our strong R&D capacity and experience in developing OEM services.
We sincerely welcome your visiting and valued suggestion to us. Any questions from you, our experienced salesperson will reply you within 12 hours.
