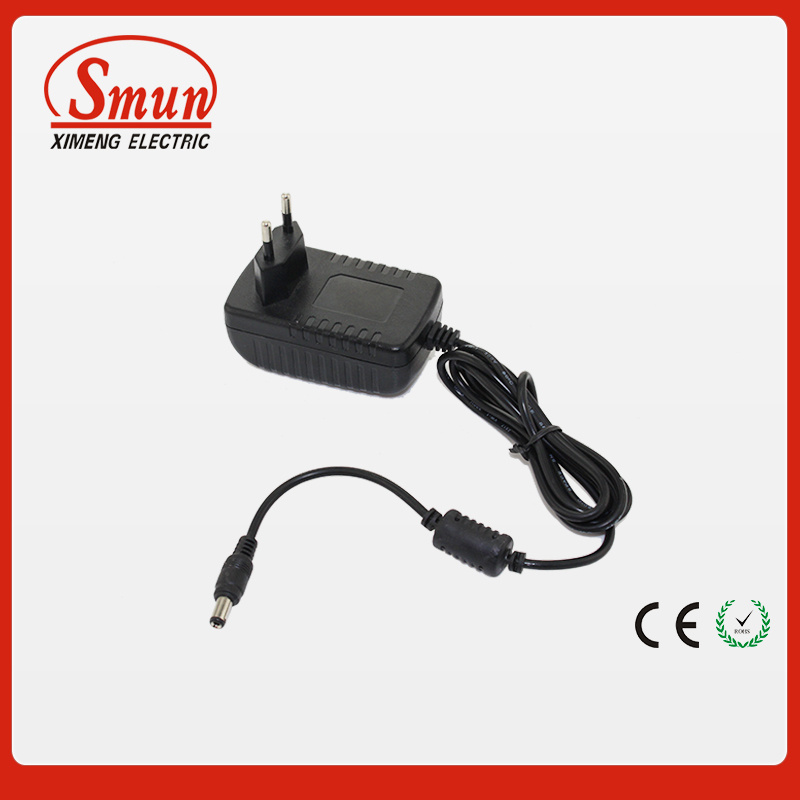

9VDC 1A EU UK Us Plug Universal AC/DC Adapter

Name: 9VDC 1A EU UK Us Plug Universal AC/DC Adapter
Brand: all-electronics-online.com
SKU: 772804845
Availability: InStock
Rating: 4.5 (145 reviews)

Price:	US $ 1.5-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMN-H2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Plastic and Metal
Input:	100V-240VAC 50/60Hz
Output:	9VDC 1A
Power:	9W
Plug:	EU Us UK Plug
Length Of The Cable:	About 1m
Output Connector:	2.1*5.5mm/Your Choice
Customized:	Available
Sample:	Available
Max Case Temperature:	70 Degree C
Usage:	Switching
Output Type:	DC
Connection:	Plug In
Brand:	Smun

Product Description

Model	Input Voltage	Output Voltage	Output Current	Output Power	Housing Size(mm)	Remark
SMN-H2	100-240VAC	5VDC	2A	10W	754030	Can be customized according to customer requirements.
		6VDC	1A	6W
		7VDC		7W
		9VDC		9W
		12VDC		12W
		24VDC	0.5A	12W

Product Description
Features:
*Input voltage: AC 100-240V 50-60Hz
*Suitable for 5V/9V/12V etc LED lighting Application
*100% full load testing
*power factor > 0.9
*Screw terminal for safety connection
*Max case temperature: 70 degree
*Protection: Short-circut &over-load &Over Heat
*Max Power: 9 watt

Specifications:
Name: 9V AC/DC Power Adapter for Switching Power supply
Model: SMN-H2
1. Input Rated Voltage: 100V-240Vac (90-265v)
2. Output: 9V 1A
3. Output power: 9W
4. Input Frequency range: 47-63Hz
5. Input inrush current: 0.3A max
6. Efficiency: 85%(MIN)at rated voltage
7. Ripple and Noise: < 120Mv at full road with 20MHz bandwidth
8. Turn On Delay Time: < 3S (AC: 110V and full load)
9. Safety protection: Over voltage and current protection for ac dc adapter
10. Leakage Current: < 5mA
11. DC cable length: 1.5 meters
12. Operating Temperature: 0° C----+60° C
13. Storage Temperature: -20° C----+85° C
14. Certificate: CE, ROHS, FCC

Technicial parameters:

Name	9V AC/DC Adaptor for Switching Power Adapter
Model	SMN-H2
Input rated voltage	100-240V(90-265V)
Output	DC9V1A
Max	9W
Frenquency	47-63Hz
Ripple&noise	< 120Mv at full road with 20MHz bandwidth
DC cable length	1-1.5 meters
Plug	EU,UK,AU,US,CN plug with etc
