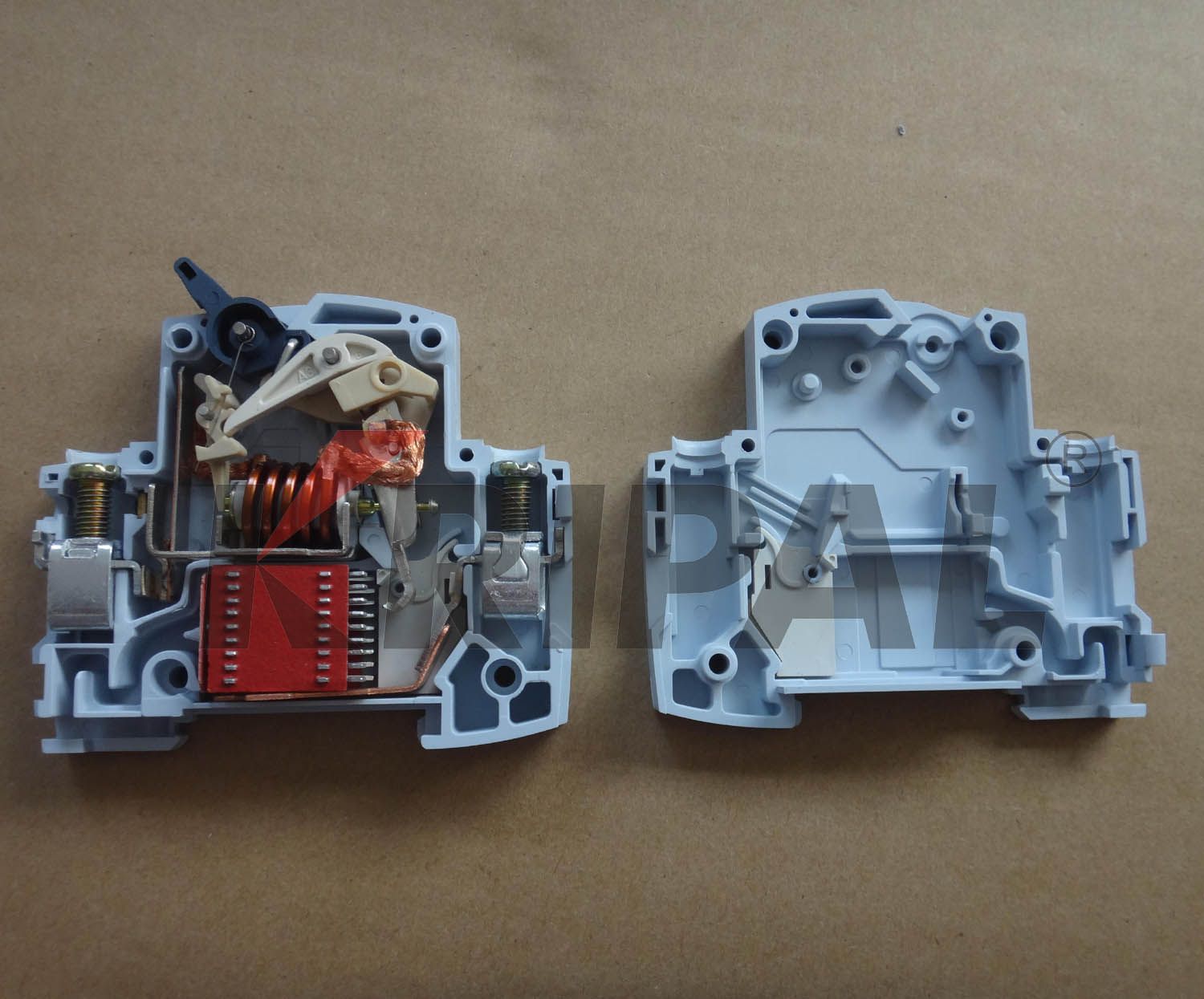

a Class 6ka MCB Switch

Prod Model:	UKB1-63A/2P C32
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	Semko
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	1
Certification:	CE
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

MCB Switch

Number of Poles: 1P, 2P, 3P, 4P
Rated current (A): 1, 3, 6, 10, 16, 20, 25, 32, 40, 50, 63
Voltage (V): 230/400

Technical parameter:
A. Conform to standard: IEC 60898, GB 10963
B. Rated voltage: AC 230V/400V
C. Trip characteristic: MODEL B3-5In instant trip
MODELC5-10In instant trip
MODEL D10-14In instant trip

Rated running short-circuit interrupting capacity

B, C 1-40 Ampere, voltage 230V/400V: 6KA
B, C 50, 63 Ampere, voltage 230V/400V: 4.5KA

Configuration

A. With short circuit current limiting structure high breaking capacity in rated short circuit
B. With overload and short circuit protection device complete protection functions
C. With "frame" connection structure safe and reliable connection

Used environment

A. Environment temperature: -5 to +40
B. Elevation: ≤ 2000 m
C. Relative air humidity: ≤ 95%

Connection capacity: Conductor 25 mm or below.
