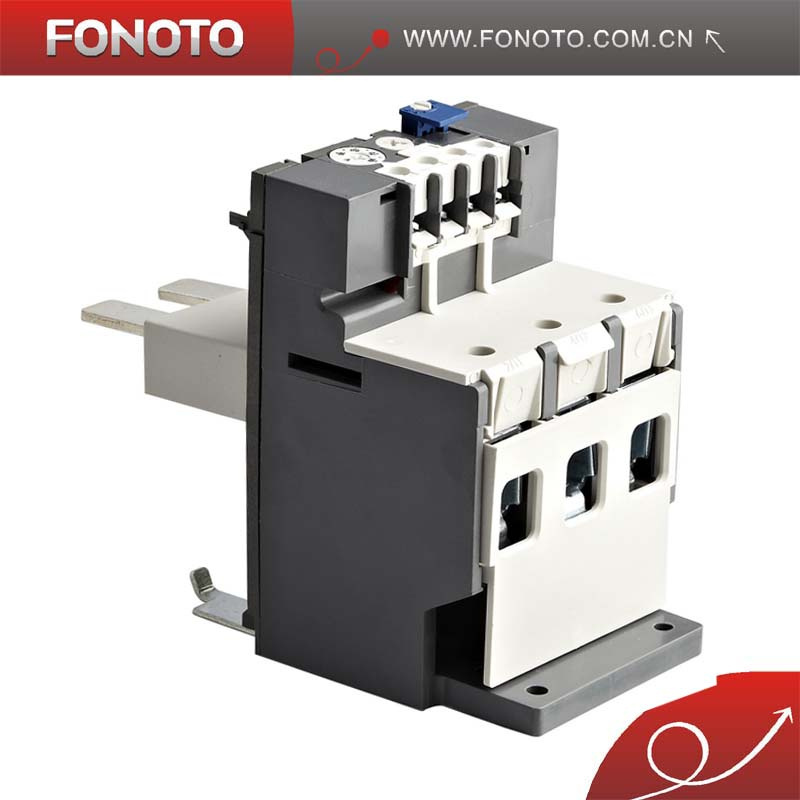

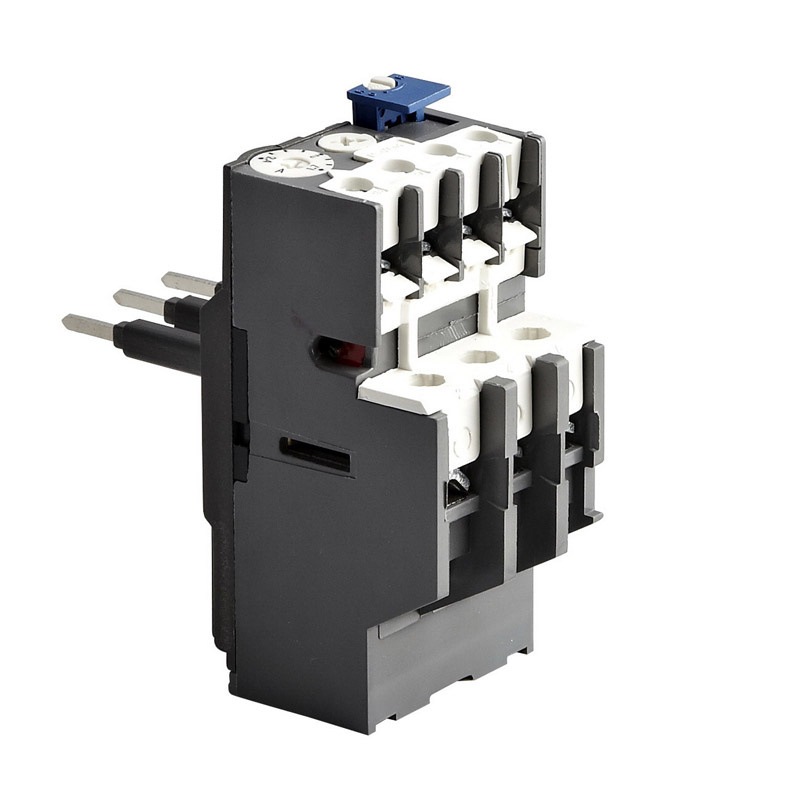

a-Ta Series Thermal Overload Relay a-Ta110

Prod Model:	A-TA110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Magnetic AC Contactor:	Auxiliary Contact

Product Description

TA Series Thermal overload relay TA110
A-TA Series Thermal overload relay A-TA110

Model No.: A-TA110

Features
Three-phase thermal relays with release class 10A.
With differential phase-failure protection.
With continuous current adjusting scale.
With temperature compensation.
With TEST (OFF) button.
With Manual/Auto reset button.

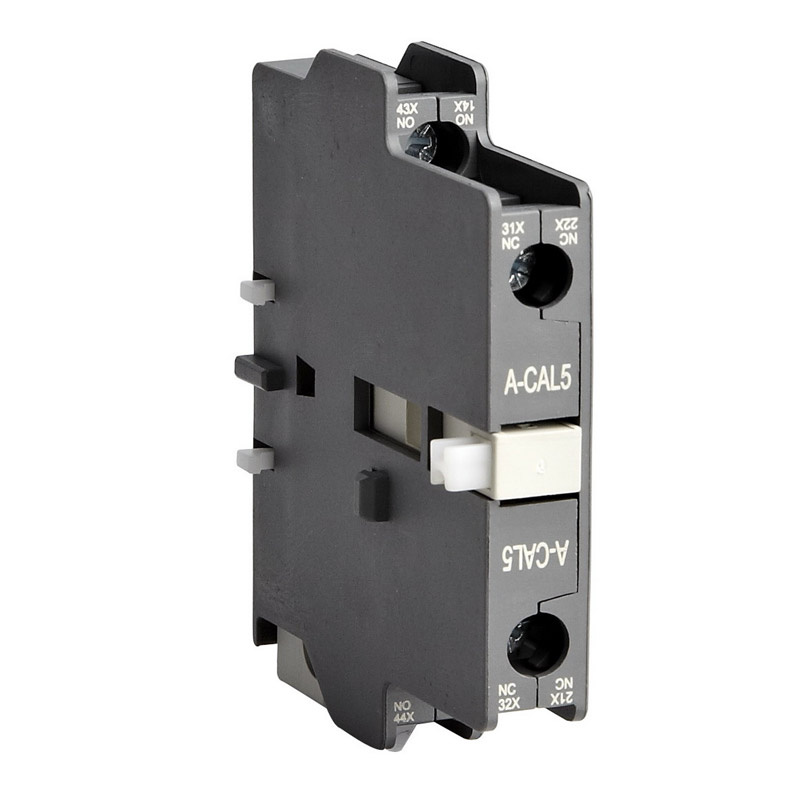

With Auxiliary contacts 1 NO+1 NC insulated each other.
Mounting: Plug in connection with contactor or install as a single unit.

Others:
1 National Standard: GB 14048
2 International Standard: IEC 60947-4-1
3 Fast delive
4. Packaging Detail: Export Standard carton packings or OEM packings
5. Delivery Detail: Within 2-7 days after order confirmed


A-TA Series Thermal overload relay

Application
A-TA series thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690V, current up to 0.1-30A under 8-hours duty or uninterrupted duty
Functions provided by these relays, are phase-failure protection, temperature compensation, ON/OFF indication, and manual/automatic reset.
Applicable Standards
National Standard: GB 14048
International Standard: IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units

Operating Conditions
1 The altitude couldn t exceed 2000m.
2 Ambient temperature: -5 ~+55 and the average temperature no more than +35 in 24 hours
3 Atmosphere: Comparative humidity no more than 50% at max +40, and it may be higher at a lower temperature. The lowest average temperature no more than +20 in the wettest month. The maximum average comparative humidity of this month couldn t exceed 90%, The changeof temperature leading to dew on the product must be considered
4 Class of pollution: Class 3
5 The slope between installation surface and vertical surface couldnot exceed 5degrees
6 Keeping away from explosive, corrosive and electric atomy
7 Keeping dry
8 The product should be used and installed at certain place without any shock, vibration etc.
