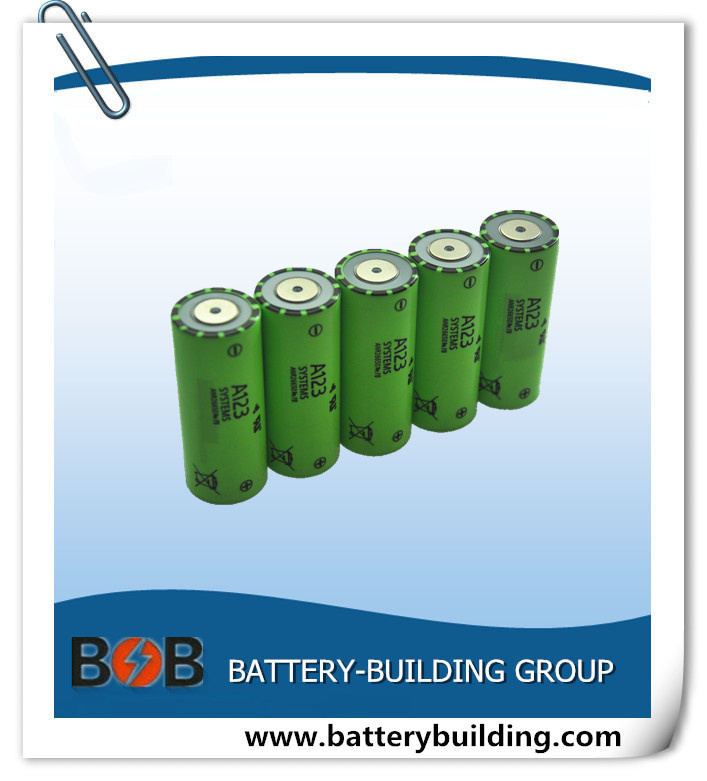

A123 26650M1B 2500mAh LiFePO4 Battery

Name: A123 26650M1B 2500mAh LiFePO4 Battery
Brand: all-electronics-online.com
SKU: 752927175
Availability: InStock
Rating: 4.9 (101 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BB-A123/2500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	A123
Original:	USA
Battery Type:	26650 3.3V 2500mAh
Application:	E-Vehicle, Starter Battery and etc.
Usage:	Power Tool
Discharge Rate:	High Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Type:	LiFePO4
Nominal Voltage:	3.3V
Electrolyte:	LiFePO4

Product Description

A123 ANR26650 M1A 2500mAh battery cell

Specifications:
Cell Dimensions (mm):26mm x 65mm
Cell Weight (g):75
Cell Capacity (nominal/minimum, Ah): 2.5
Voltage (nominal, V):3.3V
Internal Impedance (1kHz AC typical, mΩ): 6
HPPC 10 Sec Discharge Pulse Power 50% SOC: 200 W
Recommended Standard Charge Method: 1C to 3.6V CCCV, 45 min
Recommended Fast Charge Method to 80% SOC: 4C to 3.6V CC, 12 min
Maximum Continuous Discharge (A): 70
Maximum Pulse Discharge (10 seconds, A): 120 A
Cycle Life at 10C Discharge, 100% DOD: >1,000 cycles
Operating Temperature: -30°C to 55°C
Storage Temperature: -40°C to 60°C

Benefits:
Safety: Excellent abuse tolerance and environmentally friendly
Life: Excellent calendar life, 10X cycle life vs. conventional lithium ion

Applications:
Portable high power devices
Stationary battery backup systems
Grid stabilization energy storage systems
Commercial truck and bus hybrid electric vehicles (HEVs)

Other models:

Model.	Description	Weight(g)	discharge


USA K2 IFR 18650P 3.2V	1200mAh	45	30C/60C
IFR 18650P 3.2V	1100mAh	45	20C/30C
IFR 18650E 3.2V	1500mAh	45	3C/5C
USA K2 26650Ev 3.2V	3200mAh	85	5C/10C
USA K2 26650P 3.2V	2600mAh	85	30C/60C
IFR 18650P 3.2V	1500mAh	45	15C
IFR 38120S 3.2V	10Ah	330	5C/8C
IFR 38120P 3.2V	10Ah	330	10C/20C
ICR 18650E 3.7V	2200mAh	45	3C
ICR 26650E 3.7V	4000mAh	82	2C
ICR 26650E 3.7V	4500mAh	82	2C
ICR26700E 3.7V	5000mAh	85	2C
SAMSUNG INR18650-13P/13L	1300mAh	44.5	10/20C
SAMSUNG INR18650-15K	1500mAh	44.5	10C
SAMSUNG INR18650-15Q	1500mAh	44.5	12C
SAMSUNG INR18650-15M	1500mAh	44.5	18C
SAMSUNG INR18650-13Q	1300mAh	44.5	15C
SAMSUNG INR18650-20Q	2000mAh	44.5	8C
SAMSUNG INR18650-20R	2000mAh	44.5	11C
SAMSUNG ICR18650-22FM	22OOmAh	45	2C
SAMSUNG ICR18650-22P 3.7V	2200mAh	45	5C
SAMSUNG ICR18650-26F/26FM/26H	2600mAh	45	2C
SAMSUNG ICR18650-28A	2800mAh	45	2C
SAMSUNG ICR18650-29E	2900mAh	45	2C
SAMSUNG ICR18650-30A/30B	3000mAh	45	2C
SAMSUNG ICR18650-32A	3200mAh	48	2C
Panasonic NCR18650PF	2900mAh	45	2C
Panasonic NCR18650BD	3200mAh	47	3C
Panasonic NCR18650B	34OOmAh	45.9	1C
Panasonic NCR18650A	3100mAh	45	2C
LG 18650 HE2	2500mAh	48	12.5C
LG 18650 D1	3000mAh	48.5	2C
LG 18650 C2	2800mAh	48	2C
LG 18650 B4	2600mAh	48	2C
LG 18650 S3	2200mAh	48	2C
LG 18650 MF1	22OOmAh	48	5C

SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.

Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.

Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "

If you hany any inquiry and question, please just contact us.

We are looking forward to establishing relationships with you in the near future.
