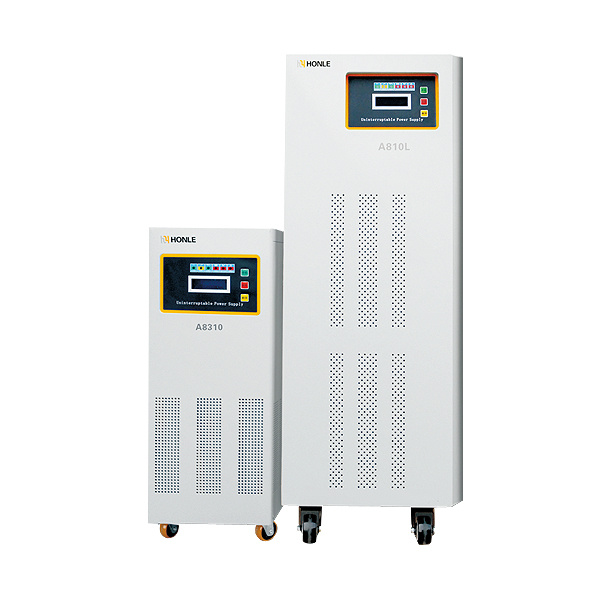

A800 Series Power-Frequency Online Type UPS
| Price: |
US $ 49.8-999.9/Piece |
| Min Order: |
4/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
A800series UPS |
| Color: |
Black &White |
| Warranty: |
2 Years |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage.Short Circuit.Over Current.etc |
| Application: |
Communication.Home.Industry |
| Equipment Mode: |
Decentralizaed,Centralized |
| Brand: |
Honle |
Product Description
General
1.A8900 medium/high-power three-inlet three-outlet series UPS, with capacity from 10KVA to 400KVA.
2.Enjoying large capacity, high reliability and excellent performances.
3.It provides reliable power supply protection for the centralized server rooms, network management centers and computer centers.
4. It makes use of advanced control technologies to realize parallel-machine operation and N+1 parallel redundancy.
Application
Centralized server rooms, network management centers, computer centers, industrial automation equipments, etc.
Technical Index| Rated capacity | 1KVA(A801) 2KVA(A802) 3KVA(A803) 6KVA(A806) 10KVA(A810) |
| Input | Voltage | 220VAC±25% |
| Frequency | 50(60)HZ±5% |
| Power factor | 0.99 |
| Output | Voltage | 220/230V ac(1±2%) |
| Frequency | 50(60)HZ |
| Voltage stability | ±1% |
| waveform distortion | <3% linear load;<5%non-linear load |
| Battery | Type | Valve-control lead acid maintenance-free battery |
| Back up time | > 11min (half load) | External | >11min (half load) | External | >11min (half load) | External |
| Rated voltage | 36V | 72V | 96V |
| Transfer time | 0Technical Index | Model | A801 | A802 | A803 | A804 | A806 | A808 | A810 | | Rated capacity | 1KVA | 2KVA | 3KVA | 4KVA | 6KVA | 8KVA | 10KVA | | Input | Voltage range | 220VAC±25%/380VAC±20% | | Frequency range | 50(60)HZ±5% | | Phase no. | Single-phase +GND | | Output | Waveform | Pure sine wave | | Voltage | 220VAC | | Frequency | 50(60)HZ | | Voltage stability | ±1% | | Frequency stability | ±0.5%(battery power supply) | | Waveform distortion | < 3% linear load; < 5% non-linear load | | Battery | Battery type | Lead-acid battery of maintenance free | | DC voltage | 48V DC | 192V DC | | Battery number | 4pcs | 16pcs | | System | Control mode | PWM(pulse width modulation) | | Overload capacity | Overload 125% for 10min, overload 150% for 1s | | Power factor | 0.7 lag | | Conversion time | 0ms | | Efficiency | >85% | Humancomputer
interface | LCD display | Input/output voltage, frequency, battery voltage, load power, temperature inside, working status | | LED indicator | Utility power, inverse conversion, bypass, battery, overload, abnormal | Functions of Rs232
communication software | 1.Power status analysis
2.Timing switch on/off UPS system
3.Monitoring of UPS
4.Message alarm and sending text messages
5.Automatic save of historical records | | Protection | Surge protection | In conformity with the standard IEEE527 | | Noise signal protection | In conformity with the standard FCC.A | | Noise | <55db(1M for the machine) | | Dim. of equipment | N.T.(no battery) | 35KG | 57KG | 68KG | 62KG | 66KG | 100KG | 110KG | Dim.(mm)
W*D*H | 210*490*500 | 210*580*540 | 230*540*570 | 305*585*870 |
|
| Operating environment | Humidity: 20%-90%, Temperature:0 o C-40 o C |
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 |
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
| Note :*Specification is subject to change without further notice |
ABOUT OUR COMPANY
a).HONLE Electronic co.,Ltd is specified in producing Single phase and three phase voltage stabilizers, voltage regulator, distribution transformers, low-voltage switch gear assembly,complete plant equipment
b)Passed the ISO9001 quality management system certification
c).HONLE insist on the quality of survival ,innovation and development all the time , try our best to be winner to give you the competitive product .
Our service :
a)Quick response to your inquiry
b)best quality with reasonable price
c)long warranty ensure you buy with no hesitation
FAQ:
Q1.WHY CHOOSE US
A--Best quality with reasonable price .You will realize the answer when you compare ours product with others
Q 2. what's the payment term?
A --We usually accept TT, 30% deposit and 70% balance against copy of B/L.We also accept L/C considering the first cooperation between us.
Q 3. how's the delivery time ?
A --Usually it will take about 25 days for production.
Q 3. tell me the standard of package?
A --For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q4. what kind of certificate you have ?
A. Our company already achieve ISO, CCC, and for products, we have CE
Q5.How long is your product warranty
A.2 years warranty after manufacturing date
More question?
PLEASE FEEL FREE TO CONTACT US YOU CAN GET OUR IMMEDIATE REPLY

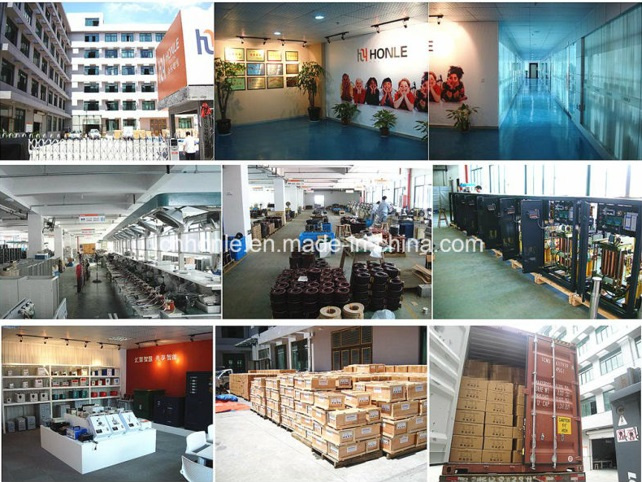

Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.
