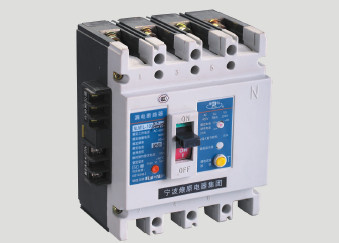

ABS Circuit Breaker with Residual Current Protection
| Price: |
US $ 1-70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
NLM1l Serie |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Insulation Voltage Ui (V): |
AC800 |
| Rated Impulse Withstand Voltage Uimp (V): |
8000 |
| Rated Operational Voltage Ue (V): |
AC400 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Oil-immersed Type |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
GB 14048.2-2008, IEC 60g47-2:2006 |
Product Description
Scope of Application
NLM1L Series ABS circuit breaker with residual current protection hereinafter to be referred as breaker), its rated insulation voltage 800V and is mainly suitable for AC 50Hz, rated working voltage 400V, rated working current 16A-630A and used for infrequent start in circuit.
It also can be used to prevent fire disaster caused by insulation failure of power equipment leading to ground fault. The breaker has functions of protecting from overload, short circuit and under voltage, and protecting lines and circuit equipment from damage.
The breaker has features: compact, high breaking capacity, short arcing, anti-vibration and residual operating current can be adjustable. Having the same specification with NLM1, it has a good interchange ability, tt can be installed in horizontal or vertical.
\
Standard:
GB 14048.2-2008, IEC 60g47-2:2006
Main Specification And Technical Parameters
| Product Model | NLM1L-100 | NLM1L-225 | NLM1L-400 | NLM1L-630 |
| N of poles | 3,4 | 3,4 | 3,4 | 3,4 |
| Rated Current In (A) | 10,16,20,25,32,40,50,63,80,100 | 100,125,160,180,200,225 | 225,250,315,350,400 | 400,500,650 |
| Rated Insulation Voltage Ui (V) | AC800 |
| Rated Impulse Withstand Voltage Uimp (V) | 8000 |
| Rated Operational Voltage Ue (V) | AC400 |
| Arcing Distance (mm) | 50 | 50 | 50 | 50 |
| Limiting Short-circuit Breaking Capacity Icu (kA) | 50 | 85 | 50 | 85 | 65 | 65 |
| Operating Short-circuit Breaking Capacity Ics (kA) | 35 | 50 | 35 | 50 | 42 | 42 |
| Rated Residual Working Current (mA) | 100/300/500 |
| Rated Residual Not Working Current (mA) | 1/2 |
| Rated Residual Short-circuit Making capacity | 1/4 |
| Operation Performance (times) | Loading | 0 | 0 | 0 | 0 |
| Unloading | 0 | 0 | 0 | 0 |
| Shunt Release | 0 | 0 | 0 | 0 |
| Under Voltage Release | 0 | 0 | 0 | 0 |
| Leakage Alarm Modular Units | 0 | 0 | 0 | 0 |
| Auxiliary Contact | 0 | 0 | 0 | 0 |
| Alarm Contact | 0 | 0 | 0 | 0 |
| Mortor Operating Mechanism | 0 | 0 | 0 | 0 |
| Turning Hand Shank Operating Mechanism | 0 | 0 | 0 | 0 |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
