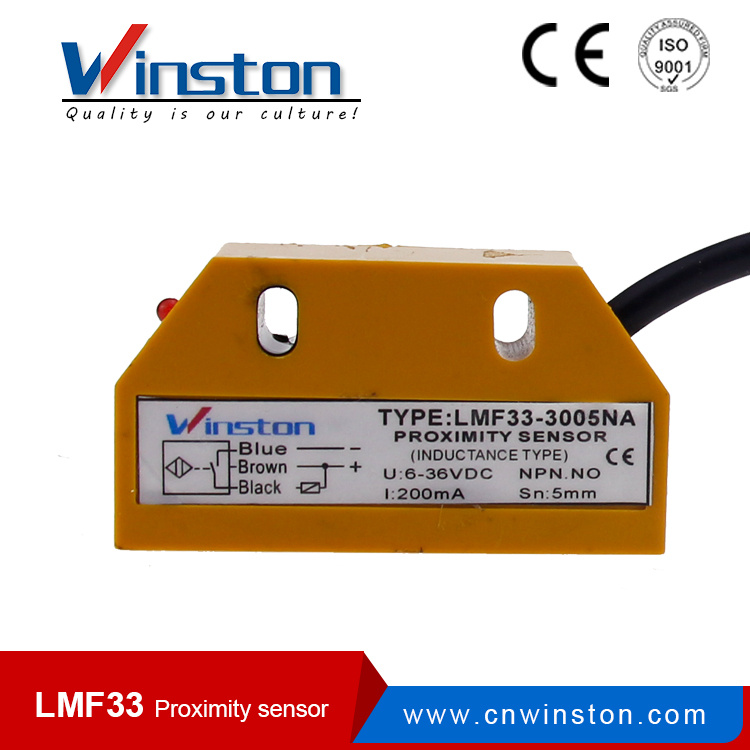

ABS Electrical Inductive Proximity Sensor Swith (LMF33)
| Price: |
US $ 2.9-3.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
LMF33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensing Range: |
5mm,8mm |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Proximity Switch |
| Principle: |
Inductive |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description
Product Description:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Feature:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)
5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)
Technical data
| DETECTION DISTANCE 5mm |
| Flush | DC 10-30V | NPN | NO | LMF33-3005NA |
| NC | LMF33-3005NB |
| NO+NC | LMF33-3005NC |
| PNP | NO | LMF33-3005PA |
| NC | LMF33-3005PB |
| NO+NC | LMF33-3005PC |
| two wire system | NO | LMF33-3005LA |
| NC | LMF33-3005LB |
| AC 90-250V | SCR Control-lable silicon | NO | LMF33-2005A |
| NC | LMF33-2005B |
| NO+NC | |
| Relay output | |
| | DETECTION DISTANCE 8MM |
| Non-Flush | DC 10-30V | NPN | NO | LMF33-3008NA |
| NC | LMF33-3008NB |
| NO+NC | LMF33-3008NC |
| PNP | NO | LMF33-3008PA |
| NC | LMF33-3008PB |
| NO+NC | LMF33-3008PC |
| two wire system | NO | LMF33-3008LA |
| NC | LMF33-3008LB |
| AC 90-250V | SCR Control-lable silicon | NO | LMF33-2008A |
| NC | LMF33-2008B |
| NO+NC | |
| Relay output | |
| Controloutput | DC | 200mA |
| SCR/ Relay | |
| Output voltagc dropDC/AC | NPN/PNP< 3V, Two wire< 3.9V, AC< 10V |
| Consumption current | DC< 15mA, AC< 10mA |
| Standard detected object | |
| Repeated precision | |
| DC/AC | |
| Working environment temperature | -25~+70º C |
| Insulation resistance | |
| Shell material | ABS Resin |
| Protection grade | IP67 |
| Altemative model at home and abroad | |
