| Prod Model: |
ZW8-12C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
People |
| Rated Voltage: |
12kv |
| Rated Current: |
630A,1250A |
| Customized Design: |
Yes |
| Weight: |
210kg |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Function: |
Overload, Shortcircuit |
Product Description

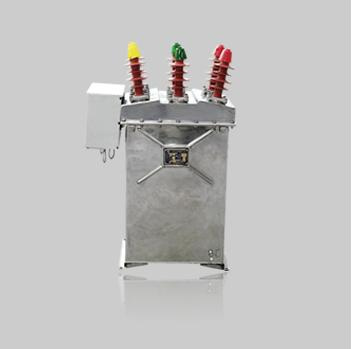

IntroductionZW27 series AC high voltage vacuum automatic recloser,can be used in the AC 50Hz, rated voltage 12kV three-phase electric net. Breaking and close load, with overload and short-circuit protection. The control and protection device for grid net.Consist of 3 parts: circuit breaker (with operation mechanism); controller; control power source.
Controller utilizes micro-processer, digital display panel, convenient for human-computer interaction. All parameters can be adjusted, adding GPRS, GSM communication system function to make connect & breaking and remote data communication via mobile. Can transfer circuit parameters & equipments conditions.
Specification| Rated Voltage | 12KV |
| Power frequency withstand voltage(1min) | phase, to ground | 42KV |
| fracture | 48KV |
| Lightning impulse withstand voltage | phase, to ground | 75KV |
| fracture | 85KV |
| Rated current | 630A, 1250A |
| secondary cycle power frequency withstand voltage | 2KV |
| Rated Frequency | 50HZ |
| Rated short-circuit breaking current | 20KA |
| Rated short-circuit making current(peak) | 50KA |
| Rated short-time withstand current | 20KA |
| Rated withstand current(peak) | 50KA |
| Rated operating order | O-0.3s-CO-180s-CO |
| Rated operating voltage | ~220V |
| Rated short-time duration | 4s |
| All breaking time | <0.125 |
| Mechanical life | 10000 times |
| Overcurrent tripper accuracy | ±10% |
| Overcurrent tripper rated current | 5A |

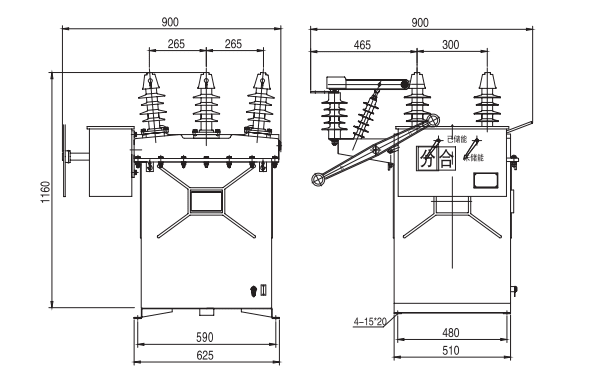

Outline and mounting dimension
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
