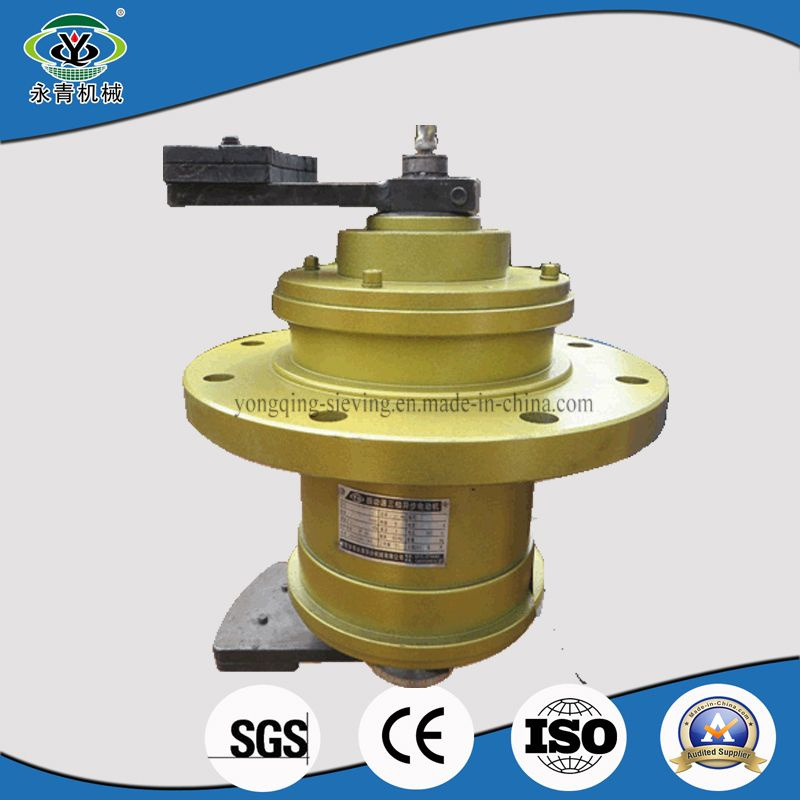

AC 3 Phase Electric Vibrating Screen Motor (YZUL30-4)
| Price: |
US $ 100-2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
YZUL30-4 vibrating motor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Commodity: |
Yzul30-4 Vibrating Motor |
| Excitation Force: |
30kn |
| Pole: |
4 Poles |
| Rotated Speed: |
1440rpm |
| Voltage: |
220/240/380/415/450V |
| Frequency: |
50Hz or 60Hz |
| Power: |
1.2kw |
| Weight: |
85kgs |
| Protective Grade: |
IP55 or IP65 |
| Insulating Grade: |
B or F |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
CE |
| Brand: |
Yongqing |
Product Description
AC 3 phase electric vibrating screen motor (YZUL30-4)
Introduction
1. YZUL asynchronous series vibrating motor is a special motor for rotary vibrating screen.
2. It adopts advanced Single Flange Structure, which makes the vertical motor's outer parts more tight.
3. The single flange structure also simplify the integral structure, decrease the overall size, and reduce the weight. The motor's cost is also decreased.
4. About the power, the single flange structure also reduce the power consumption and enhance the vibrating power, which makes vibrating screen deal with the particle better.
5. At the same time, we also devote ourselves to promoting YZUL's appearance, insulation class, protection class. So that it can be suitable for various work environment.
6. The design of electromagnetic spec is suitable for vertical motor's operating characteristics. Be swift starting and stable operating
Features| YZUL asynchronous series vibrating motor |
| Workable temperature | -20~ -40°C |
| Working Height | below 1000m |
| Voltage | 220/240/380/415/450V are all available |
| frequency | 50HZ or 60HZ |
| Protective grade | IP55 or IP65 |
| phase | 3 |
| Way of connection | Y |
| Insulating grade | B or F |
| Way of working | Continuous |
| Type | AC |

Specifications Sheets| Size | L1 | L2 | B | 1 | 2 | 3 | n | d | L3 | R | Power (kw) | Weight (kg) |
| Model |
| YZUL-1-4 | 231 | 170 | 16 | 190 | 138 | 165 | 4 | 12 | 104 | 70 | 0.12 | 12 |
| YZUL-3-4 | 209 | 144 | 20 | 230 | 155 | 200 | 4 | 12 | 74 | 90 | 0.18 | 23 |
| YZUL-5-4 | 326 | 212 | 22 | 245 | 165 | 210 | 6 | 12 | 85 | 135 | 0.25 | 28 |
| YZUL-8-4 | 340 | 233 | 24 | 270 | 190 | 235 | 6 | 14 | 103 | 140 | 0.55 | 39 |
| YZUL-10-4 | 436 | 290 | 34 | 310 | 220 | 265 | 8 | 18 | 144 | 185 | 0.75 | 65 |
| YZUL-15-4 | 452 | 299 | 34 | 310 | 220 | 265 | 8 | 18 | 144 | 185 | 1.1 | 71` |
| YZUL-30-4 | 488 | 328 | 27 | 370 | 265 | 315 | 8 | 22 | 153 | 200 | 1.5 | 85 |
| YZUL-50-4 | 552 | 374 | 35 | 450 | 330 | 390 | 8 | 26 | 150 | 230 | 2.2 | 160 |

ApplicationVibrating polisher, vibrating crusher, rotary vibration cleaning machine, vibrating dryer, vibration mixer, rotary vibrating screen, etc. FAQ
Please kindly provide the following information for a suitable vibrating motor machine:
1. Your usage?
2. The power (KW)?
3. The rated speed(rpm)?
4. The voltage? (220/240/380/415/450V are all available)
5. Other special requirements? Pls feel free to contact now......................................
As a Chinese screening equipment, conveying unit, and feeding device provider, Yongqing Screen Machine Co., Ltd. Was founded in Xinxiang City, Henan Province, China, in Oct. 2006. We have rich experience in the product research, development, manufacturing, and professional service. Our products include vibrating screen, vibrating motor, belt conveyor and so on. They can be widely used for food screening, impurity removing from ceramic glaze, ore processing, and so on. If clients need special products, our R&D department can either update our existing products or design new products according to the requirements.
We have more than 5 years of international trade experience, while our screening machines and related accessories have entered more than 50 countries and regions. Currently, you can find our first level agencies in Indonesia and Portugal.
Our premium screening equipment, conveying equipment and feeding machine have been widely welcomed by our customers for our processional production techniques, considerate support and service, and reasonable price, In addition, we also provide various services like project design, production technique design, non-standard product design, and on-site technical support.
We have established an efficient quality control system conforming to ISO9001 standard, covering from raw material purchasing, components processing, product assembly, up to the finished products tests. Three quality inspection procedures for the production department, quality insurance department, and our customers, respectively, have been continuously optimized to guarantee the excellent product quality.
In spite of the successes we have accomplished, we will never stop progressing and providing better products. Just contact us if you are interested in our products or have any advice for us.
