AC 3 Phase Vibrating Machinery Vibrator Motor with Exporting Standard (XVM75-6)

AC 3 Phase Vibrating Machinery Vibrator Motor with Exporting Standard (XVM75-6)
Price: US $ 100-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: Xvm75-6
Commodity: Xvm75-6 Electric Vibrating Motor
Excitation Force: 75kn
Pole: 6 Poles
Rotated Speed: 1000rpm
Voltage: 220/240/380/415/450V
Frequency: 50Hz or 60Hz
Power: 5.5kw
Weight: 280kgs
Protective Grade: IP55 or IP65
Insulating Grade: B or F
Number Of Stator: Three-Phase
Function: Driving
Certification: Ce
Brand: Yongqing

Product Description

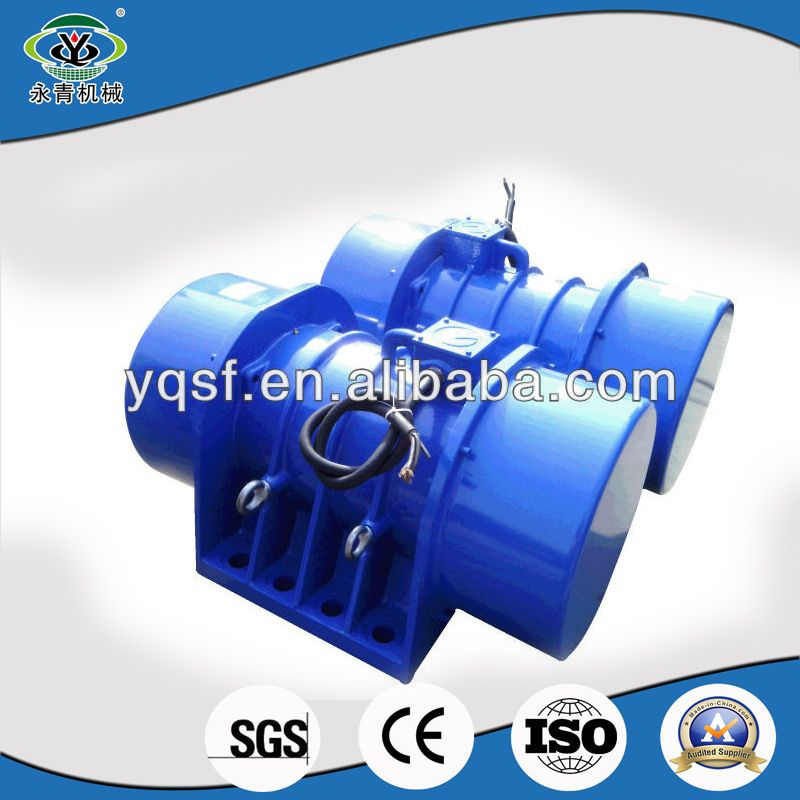

 AC 3 phase vibrating machinery vibrator motor with exporting standard (XVM75-6)



Introduction

  XVM series vibration motor is designed as a high-end vibrating motor.It is available in several types with different specifications, while the most powerful one comes with an exciting force of 300 KN, and is driven by 30kw power.The rotor and stator are made of excellent silicon steel sheet.The heat dissipation is limited.High purity copper wire is used for better performance of the motor.The design of electromagnetic spec is suitable for vertical motor's operating characteristics. Be swift starting and stable operating


Features


Small 3 phase AC electric vibrating motor-XVM
ModelXVM electric vibrating motor
Excitation Force0.7KN-200KN
Poles2 pole/ 4 pole/ 6 pole/ 8 pole
Rotation speed3000RPM/1500rpm/1000rpm/750rpm
Power0.15KW-20KW
Workable temperature-20~ -40°C
Working HeightBelow 1000m
Voltage220/240/380/415/450V are all available
Frequency50HZ or 60HZ
Protective gradeIP55 or IP65
Phase3
Way of connectionY
Insulating gradeB or F
Way of workingContinuous
TypeAC

Application

Vibrating polisher, vibrating crusher, rotary vibration cleaning machine, vibrating dryer, vibration mixer, vibrating screen, vibrating table etc.

Specifications Sheets


ModelRated speed
[rpm]
Vibrating Force
[KN]
Power
[kw]
Current
(A)
EfficiencyWeight
[kg]
Bolt
XVM0.7-230000.70.150.387014M12
XVM1.5-21.50.150.387015M12
XVM2.5-22.50.250.587616M12
XVM 5-250.401.017223M16
XVM 8-280.751.767442M20
XVM 16-2161.102.807058M20
XVM 20-2251.804.307160M20
XVM 30-2322.205.107395M20
XVM 45-2503.508.1873200M24
XVM 1.2-415001.20.070.306014M12
XVM 2.5-420.100.326618M12
XVM 5-450.200.657027M16
XVM 8-480.401.147344M20
XZM-10-4100.51.147446M20
XVM 16-4160.752.087465M20
XVM 20-4201.12.67467M20
XVM 25-4251.53.074111M20
XVM 32-4322.004.7377116M20
XVM-40-4402.25.073135M20
XVM 50-452.506.2573240M24
XVM 75-4754.0010.1474270M30
XVM100-41006.5016.8871390M30
XVM120-41208.0019.4076510M36
XVM140-414010.0024.1675580M36
XVM160-416010.0024.1675620M36
XVM2.5-610002.50.200.707128M16
XVM 5-650.401.237437M16
XVM 8-680.551.57451M20
XVM 10-6100.752.187869M20
XVM 16-6161.103.037883M20
XVM 20-6201.504.1081117M20
XVM 30-6302.206.1080165M20
XVM 40-6403.007.4084189M20
XVM 50-6503.709.6083230M24
XVM 75-67.55.5012.6081290M30
XVM100-61007.5017.9381450M30
XVM120-61209.5021.7083550M36
XVM140-61409.5021.7083615M36
XVM160-616012.0027.3781675M36
XVM180-618014.0031.8781860M42
XVM 5-875050.401.626874M20
XVM 10-8100.752.9072117M20
XVM 16-8161.504.0280172M20
XVM 20-8202.205.9380190M20
XVM 30-8303.008.1082230M24
XVM 50-8504.0010.6082290M30
XVM 75-8756.5017.1081450M30
XVM100-81008.5021.8081690M36


FAQ

Please kindly provide the following information for a suitable vibrating motor machine:
1.Your usage?
2.The power (KW)?
3.The rated speed(rpm)?
4.The voltage?(220/240/380/415/450V are all available)
5.Other special requirements?


Pls feel free to contact now......................................
As a Chinese screening equipment, conveying unit, and feeding device provider, Yongqing Screen Machine Co., Ltd. Was founded in Xinxiang City, Henan Province, China, in Oct. 2006. We have rich experience in the product research, development, manufacturing, and professional service. Our products include vibrating screen, vibrating motor, belt conveyor and so on. They can be widely used for food screening, impurity removing from ceramic glaze, ore processing, and so on. If clients need special products, our R&D department can either update our existing products or design new products according to the requirements.

We have more than 5 years of international trade experience, while our screening machines and related accessories have entered more than 50 countries and regions. Currently, you can find our first level agencies in Indonesia and Portugal.

Our premium screening equipment, conveying equipment and feeding machine have been widely welcomed by our customers for our processional production techniques, considerate support and service, and reasonable price, In addition, we also provide various services like project design, production technique design, non-standard product design, and on-site technical support.

We have established an efficient quality control system conforming to ISO9001 standard, covering from raw material purchasing, components processing, product assembly, up to the finished products tests. Three quality inspection procedures for the production department, quality insurance department, and our customers, respectively, have been continuously optimized to guarantee the excellent product quality.

In spite of the successes we have accomplished, we will never stop progressing and providing better products. Just contact us if you are interested in our products or have any advice for us.
