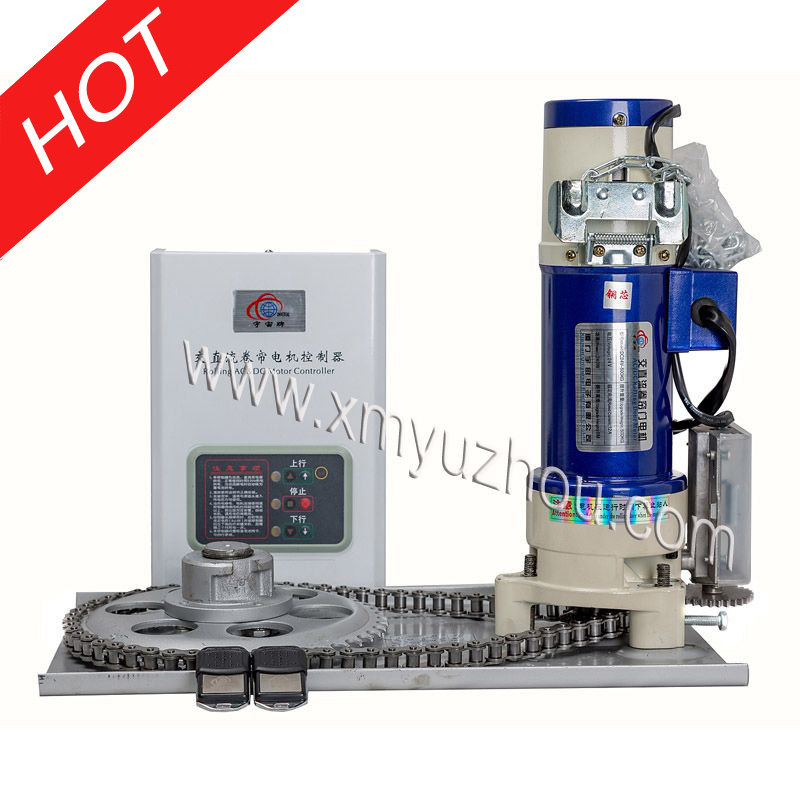

AC 300kg Automatic Door Operator / Rolling Shutter Copper Motor with Ncc Standard 2018

Name: AC 300kg Automatic Door Operator / Rolling Shutter Copper Motor with Ncc Standard 2018
Brand: all-electronics-online.com
SKU: 829600445
Availability: InStock
Rating: 4.9 (89 reviews)

Price:	US $ 70/Set
Min Order:	10/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AC/DC MOTOR 300KG
Theory:	Roller up Door Motor
Type:	Automatic Operators
Phase:	Single Phase
OEM:	Accept
Motor Species:	Asynchronous Motor
Horsepower:	Strong Power Output
Feature:	Remote Control
Number Of Stator:	Single-Phase
Function:	Control
Number Of Poles:	1
Brand:	Universal

Product Description

1)Our Industrial Roller up Door Motor are used to drive roller shutter from 300 KG to 1500kg
2)Our motor are powerful and offer an overheat protection
3)And manual chain release in case of an absence of power
4)High speed door motor are suitable for the automatic rolling door and window system of warehouse office, shops etc

Roller up Door Motor specification:
1) Motor model800kg-1p
2) Max upgrade weight 800kg
3) Max upgrade height 7m
4) Power 370w
5) Current rating 4.5A
6) Output torque: 607Nm

Roller Up Door Motor advantage
-Low noise, small vibration
-Low energy consumption
Electric and manual operation are available

Roller up Door Motor Features
1. Remote control.
2. Low noise, small shaking.
3. With electronic anti-theft apparatus.
4. Good design, advanced struture, strong power.
5. Import electric component, security and credibility.
6. Automatically open or close the doors by pressing relevant buttons.
7. Doors are also workable under the operation of manual control equipment when there is no power supply.

Rolling Door Motor Application
These products are widely used in shopping malls, hotels, warehouses, garages, post and telecommunications, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.

Model No.	Max upgrade weight(kg)	Max upgrade height(M)	Power (W)	Current Rating(A)	Output Torque(N.m)	Rotation (r/min)	CHAIN NO.
220V 50Hz(230V 60Hz)
YZ300-1P	300	6.5	250	3.3	168	6.2	10A
YZ500-1P	500	6.5	250	3.9	343	6.2	10A
YZ600-1P	600	6.5	370	3.9	412	6.2	10A
YZ800-1P	800	7	370	4.5	607	3.4	10A
YZ1000-1P	10000	7	400	4.5	1102	3.2	10A
380V 50Hz(380V 60Hz)
YZ300-3P	300	6.5	180	1.2	168	6.2	10A
YZ500-3P	500	6.5	250	1.3	343	6.2	10A
YZ600-3P	600	6.5	250	1.3	412	6.2	10A
YZ800-3P	800	7	300	2	607	3.4	10A
YZ1000-3P	1000	8	400	2.3	1102	6.5	12A
YZ1300-3P	1300	8	600	3	1372	6.5	12A

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
