AC 50/60Hz 13A Thermal Overload Relay with CB Ce S Approval

Name: AC 50/60Hz 13A Thermal Overload Relay with CB Ce S Approval
Brand: all-electronics-online.com
SKU: 813474815
Availability: InStock
Rating: 4.8 (136 reviews)

Price:	US $ 1.97-3.28/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CR2-13
Standard:	IEC/En 60947-4-1

Product Description

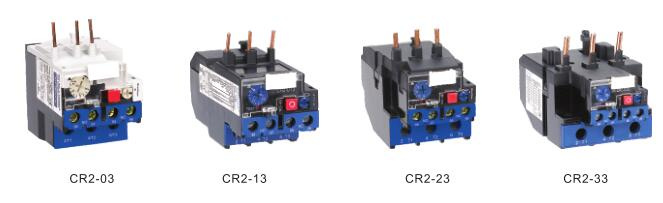

CR2 Thermal Overload Relay

1. Specification

1) Electric ratings: AC 50/60Hz,690V,0.1A~630A
2) Tripping class: 10A
3) Mounting version:
a. Plug-in: Available for CR2-03,13,23,33,43;
b. Independent: Available for CR2-53,63;
4) Standard: IEC/EN 60947-4-1

2. Features

2.1 3-phase bimetal
2.2 Continuously readjustable current settings
   2.3 Temperature compensation
   2.4 Tripping indicator
   2.5 Test button
   2.6 Stop button
   2.7 Manual and automatic reset button
   2.8 Electrically separated 1N/O plus 1 N/C contact

3. Assembly with contactor

Model of overload relay	Code	Rated current (A)	Recommended fuse type (RT16 is recommended)		Contactor Matched
Model of overload relay	Code	Rated current (A)	aM	gG	Contactor Matched
CR2-03	0301	0.1~0.16	0.25	2	CC1-09K CC1-12K
	0302	0.16~0.25	0.5	2
	0303	0.25~0.4	1	2
	0304	0.4~0.63	1	2
	0305	0.63~1	2	4
	0306	1~1.6	2	4
	0307	1.6~2.5	4	6
	0308	2.5~4	6	10
	0310	4~6	8	16
	0312	5.5~8	12	20
	0314	7~10	12	20
	0316	9~13	16	25
CR2-13	1301	0.1~0.16	0.25	2	CC1-09 CC1-12 CC1-18 CC1-25 CC1-32
	1302	0.16~0.25	0.5	2
	1303	0.25~0.4	1	2
	1304	0.4~0.63	1	2
	1305	0.63~1	2	4
	1306	1~1.6	2	4
	1307	1.6~2.5	4	6
	1308	2.5~4	6	10
	1310	4~6	8	16
	1312	5.5~8	12	20
	1314	7~10	12	20
	1316	9~13	16	25
	1321	12~18	20	35
	1322	17~25	25	50

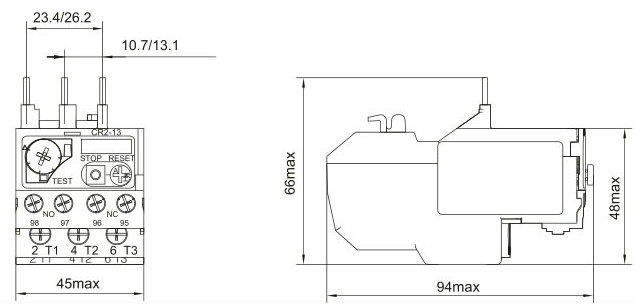

4. Mounting dimensions(mm)

5. Wiring

Items			CR2-03	CR2-13	CR2-23	CR2-33	CR2-43	CR2-53	CR2-63
Cross section area of conductor mm²	Main circuit	Single core or stranded wire	1~4	1~4	4~10	4~35	25~95	25~95	70~2*240
	Main circuit	Wiring screw	M3.5	M4	M4	M10	M6/M8	M8	M10
	Auxiliary circuit	Single core or stranded wire	0.5~2.5	0.5~0.25	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.5
	Auxiliary circuit	Wiring screw	M3.5	M3.5	M3.5	M3.5	M3.5	M3.5	M3.5

6. Certificates

7. Sample

Free sample can be provided for avaliable model but the freight charge is on your own.

Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2. If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also accept
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of good

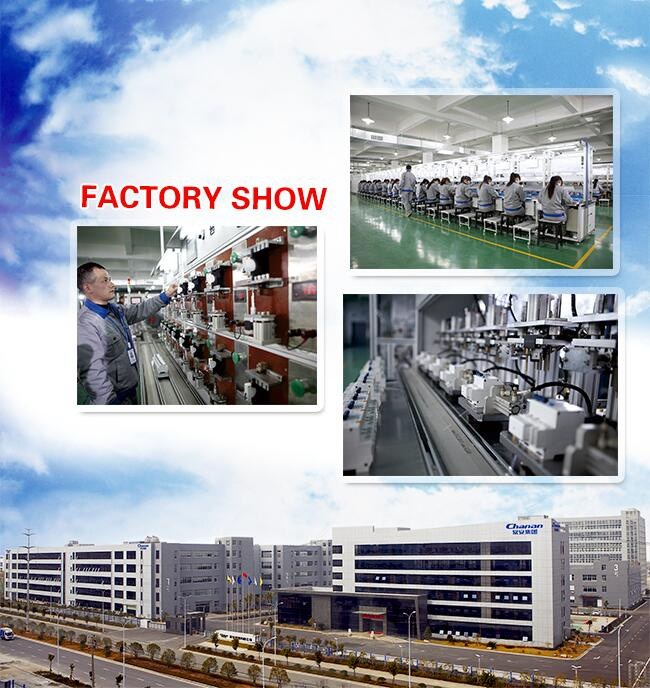

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
