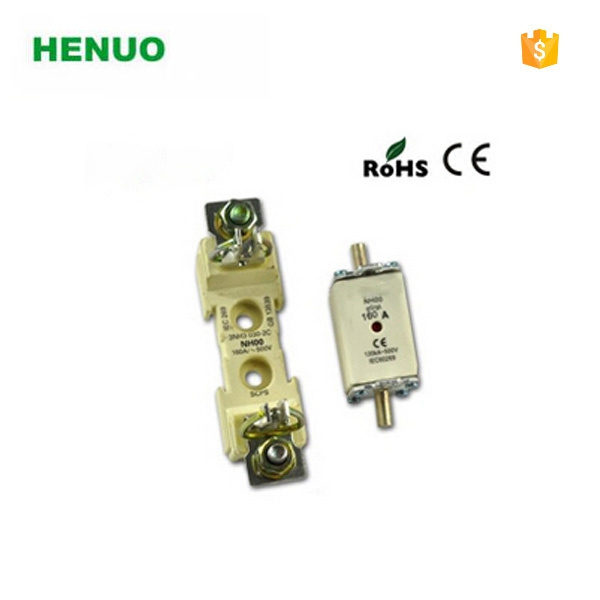

AC 50 Hz 100V 2500A RS0 Ngtd Ngt00 Fast Acting Fuse
| Price: |
US $ 0.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
RS0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Curerent: |
200A,400A,630A |
| Rated Voltage: |
AC 400V/500V/690V |
| Breaking Capacity: |
High |
| Type: |
Temperature Fuse |
| Usaga: |
High Voltage |
| Standard: |
GB13539\IEC60269 and BS88 |
Product Description
Square Pipe Bolt Fast Fuse
Scope of application
This series fuse is suitable for AC 50Hz, rated voltage to 100V,rated current to2500A.It is mainly used in the electrical circuit for protecting the semiconductor device and it's the complete set installment from short-circuit(aR).The rated breaking capacity is up to 100KA.They conform to national standard GB 13539.1/GB13539.4 and international electical committee standard IEC60269-1/IEC60269.4.
Construction Feature
The variable cross-section fuse body made by pure copper/silver piece(or silver wire) is sealed in the fusion tube which is made by the high strength porcelain;there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube.The two sides of the fuse use the spot welding to reliably connect with the contact.The model of fuse body have square tube knife shape contact and squareflat contact.The fuse body may have indicator or striker,when the fuse element fusing the indicator or the striker can act immediately to display the fuse body has been
blown out (indicator) and push the micro switch(striker) to send out each kind of signal or automatically transfer the circuit.
Main technical parameter
1. NGT series
fuse model | models of similar products at home and abroad | rated vltage
(V) | rated current
(A) | overall dimension/size(mm)
|
| drawing NO. | A | B | C | D | E | F | H | Φd |
| NGT00 | RS711B RS6-00 | 380/800 | 2~160 | 5.1 | 50 | 77 | 100 | 29 | 27 | 2 | 51 | 10 |
2. RS0 series
fuse model | models of similar products at home and abroad | rated vltage
(V) | rated current
(A) | overall dimension/size(mm) |
| drawing NO. | A | B | C | D | E | F | H | Φd |
| RS0-50 RS3-50 | 500 | 10~50 | 5.3 | 66 | 120 | 135 | 25 | 16 | 2 | 45 | 7 |
fuse model | models of similar products at home and abroad | rated vltage
(V) | rated current
(A) | overall dimension/size(mm) |
| drawing NO. | A | B | C | D | E | F | H | Φd |
| RS0-100 RS3-100 | 500 | 60~100 | 5.4 | 70 | 120 | 140 | 40 | 20 | 2 | 43 | 7×10.5 |
| RS0-200 RS3-200 | 500 | 120~200 | 5.4 | 72 | 120 | 145 | 46 | 29 | 3 | 50 | 9×13.5 |
| RS0-400 RS3-400 | 500 | 200~400 | 5.4 | 72 | 120 | 150 | 55 | 30 | 3 | 60 | 9×13.5 |
| RS0-600 RS3-600 | 500 | 300~600 | 5.4 | 76 | 120 | 155 | 66 | 40 | 5 | 72 | 13×19.5 |
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
