AC 500kg Rolling Shutter Side Motor / Backup Battery Rolling Door Motor

Prod Model:	ZD-M01
Number Of Stator:	Single-Phase
Function:	Control

Product Description

AC roiling door motor is develop base on the demand of market .widely used in supermarket ,warehouse ,garage ,post, bank, factory , etc.. it not only effects on anti-theft but also has action of self-locking and drop protection .Low consumption with unique design .Safe and reliable .easy to maintain, strong overload capacity with elegant appearance . Maked up with advanced technology and have complete functions.It utilizes the most advanced production techniques with the latest techniqued available to provide reliability with diverse functionality.The product is known for its quality,it is simple to install,and it has proven to be a reliable accessory in a wide varirty of applications.

Features of Motor:

1. Overheat protection;
2. Low-voltage and high-powerDC moter, low noise , small vibration, low consumption;
3. Easy manual operation when power failure and it also can be equipped with electrical storage devices;
4. Limit switch unit enables precise adjustment of door in up and down positions;
5. Attractive appearance , advanced structure ,strong horsepower , easy to install;
6. With convenient , stable function of remote control ,long distance remote operation is available;
7. Many Types of rolling door motor for choosing: 300kg/500kg/600kg/800kg/1000kg/
1500kg.
8. They are the ideal accessory products for shopping malls, hotels, stores, warehouse and other buildings.
.

Export Type Rolling Door Motor
Model	Voltage	Output Torque	Power	Bracket board size (mm)	Max lifting height  (M)
	V	N.m	W
AC200KG-1P	220	168	250	510*285*3.5	6.5
AC300KG-1P	220	168	250	510*285*3.5	6.5
AC400KG-1P	220	343	250	510*285*3.5	6.5
AC500KG-1P	220	343	250	510*285*3.5	6.5
AC600KG-1P	220	412	370	530*320*3.5	6.5
AC800KG-1P	220	607	370	600*320*4	7.0
AC1000KG-1P	220	1102	400	600*365*5	7.0
Remark

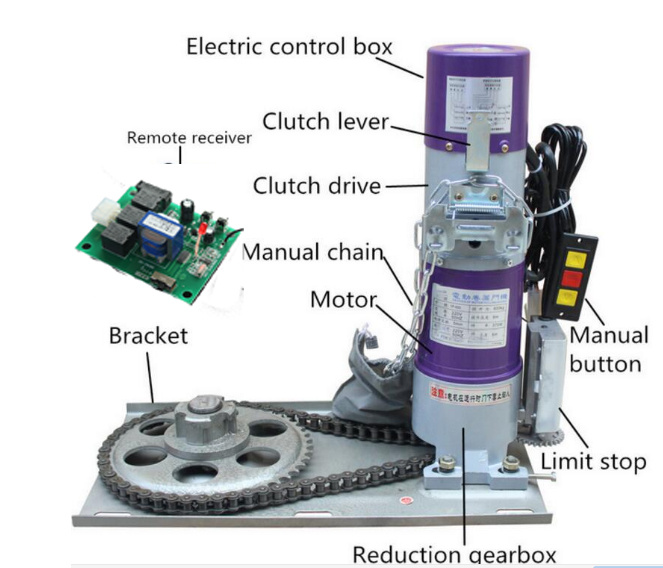

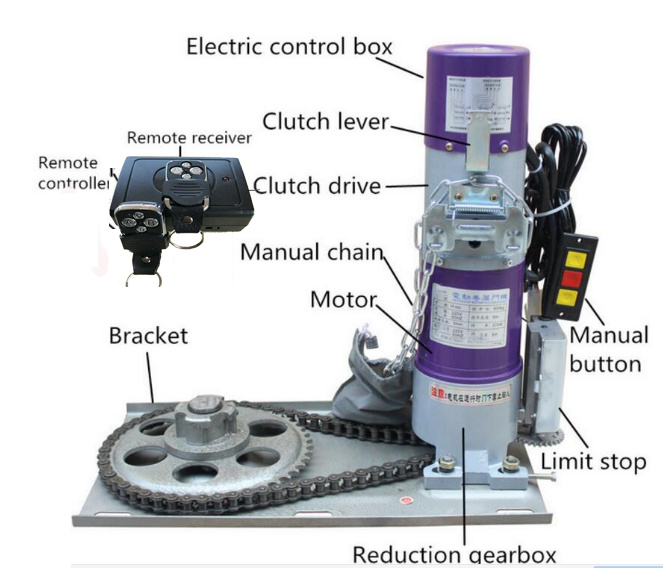

Accessories:  One set of bracket board with sprocket wheel  A driver plate  Two mounting plates  A set of bearing and bearing block A chain  A push button A lock box  A operation instruction All the AC motors with 4 relys and 4 micro switches
2)Package: One set in two cartons, with standard export package
3) Warranty: One year for warranty.
4) Payment Terms: By T/T , 30% deposit and  70% before delivery.
5) Delivery Time:  Shipped in 15-35days after payment, according to the quantity and the request on  products .

Packaging & Shipping

Package: 1pc/color box , 500pcs/carton. carton size:42*39*20cm, .W:18kgs

Shipping: By sea or by  , for your option.

Our service:

1. Testing: 24 hours testing before delivery.
2. Warranty : one year warranty.
3. Samples: samples are available.
4. Samples delivery: by DHL,FEDEX ,TNT ,EMS ,Aramex within 3 days after confirmation.
5. Delivery: 3-7 work days.
6. Trade terms: CIF,CNF,FOB,EXW,DDU
7. Payment terms: T/T, western union,paypal,Escrow
