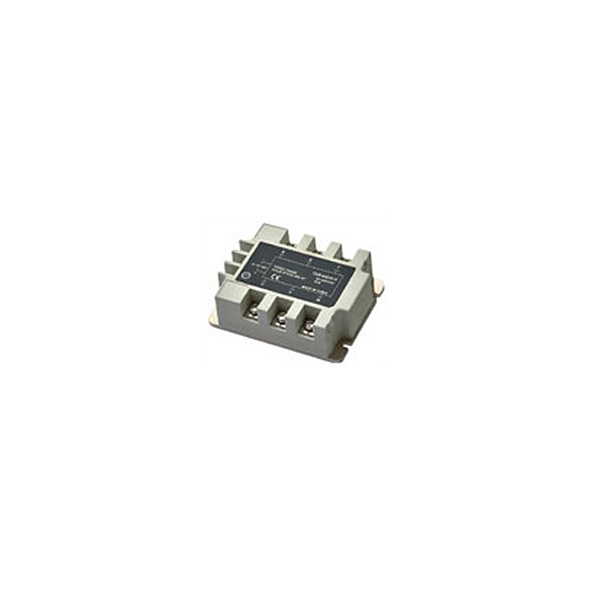

Name: AC-AC Three Phase Solid State Relay
Brand: all-electronics-online.com
SKU: 765992685
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AC-AC Three Phase Solid State Relay
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application :

High rellability by S.M.T & TQC.(Surface Mounting Technology)
High Isolation over than 50MQ/500VDC
High dielectric over than 2.5KV
Low enable current less than 7.5mA/12VDC CMOSIC or TTL Compatible.
Low EMI/EFI& surge by Zeero cross Trigger Method.
High surge current duration,over 10 Times of rated current/one cycle.
High surge voltage duration by snubber circuit.

Guiding of Model :

Control Method :

Zero Cross Trigger Method
Output TURN ON or TURN OFF only on zero cross point of sine wave,may avoid surge or EMI/RFI occurring.
Specially suited to control resistive,capacitive and Non-saturated inductive loads

Variable resistance control method
Power output is controlled by the trigger angle of triac with variable resister 250KQ/110VAC,500KQ/220VAC

Application Hints :

Input	NPN	Output	NO	Input	NPN	Output	NO	Input	NPN	Output	NO

Input	NPN	Output	NO	Input	NPN	Output	NO	Input	NPN	Output	NO

Type	Standard type				High voltage type
Model	TSR-15AA	TSR-25AA	TSR-40AA	TSR-75AA	TSR-15AA-H	TSR-25AA-H	TSR-40AA-H	TSR-75AA-H
Rated load current	15A	25A	40A	75A	15A	25A	40A	75A
Input voltage	80-250VAC, 50/60Hz
Min. on/off voltage	ON>45V, OFF<35V
Trigger current	5.0mA/110V max.
Control method	Zero cross trigger
Operating voltage	24-380VAC				90-480VAC
Min. black voltage	600VAC
Peak voltage	Over 1200V
Max. durated current	175A	275A	410A	820A	175A	275A	410A	820A
Leakage current	12.5mA@380V				15.5mA@440V
Response time	ON<20ms/OFF<20ms
Dielectric strength	Over 2.5KVAC/ 1min.
Isolation strength	Over 50M/500VDC
Operating temperature	-20ºC~+80ºC
Weight	390G

Dimension and connection diagram :
