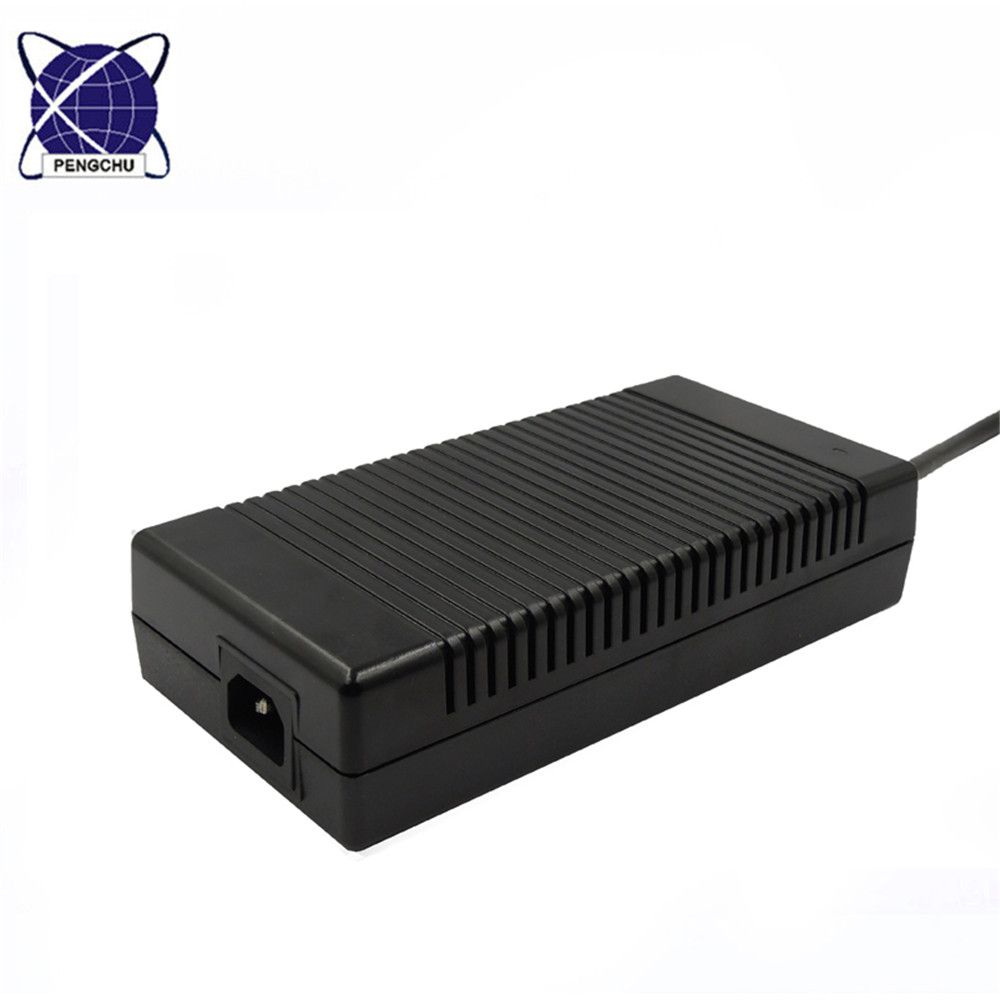

AC Adapter Output 12V 250W 20.8A

Name: AC Adapter Output 12V 250W 20.8A
Brand: all-electronics-online.com
SKU: 839106305
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	US $ 36-38/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-120208
Input Voltage:	100-240V
Output Power:	250W
Output Voltage:	12V
Output Current:	20.8A
Efficiency:	88% Min
Aging Test:	100% Full Load Test
Material:	100% PC

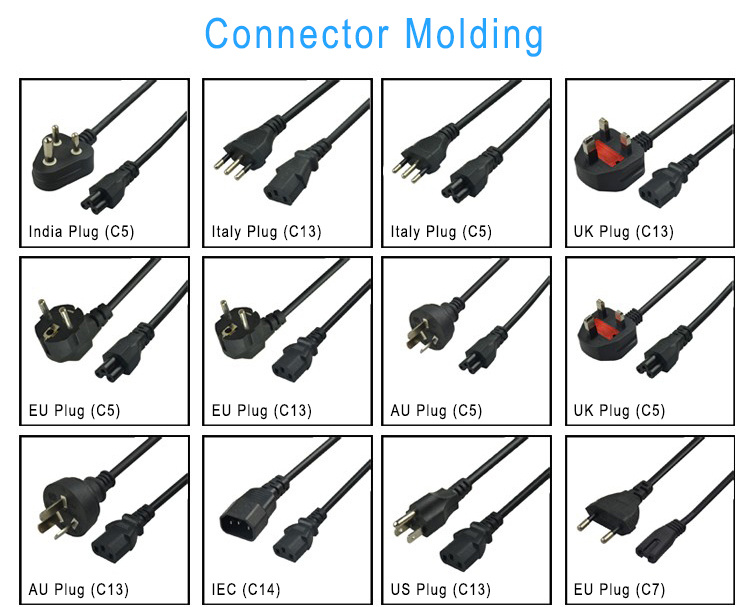

AC Plug:	EU,UK,US,AU Plug or Your Demand
DC Power Cord:	0.9m,1.2m,1.5m or Your Demand
Product Dimension:	20010045mm
Usage:	LED Strip Light,POS Machine
Certification:	Ce,FCC

Product Description

ac adapter output 12v 250w 20.8A

Features:

(1)High efficiency, High reliability, Long life time

(2)Efficiency: 88% min
PFC:>0.99

(3)Approved CE RHOS FCC certification

(4)Warranty: 1 year

(5)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.

(6) Real power, high reliablity, long life
IEC320-C14, IEC320-C6 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).

(7)Suit for: Laptop adapter, LED, LCD, CCTV camera, Motor, Computer, etc.

Part NO.	PC-120208
DC Voltage	12V
Rate Current	20.8A
Current range	0~20.8A
Rate power	250W
Voltage tolerance	±5%
Line Regulation	±1%
Load Regulation	±5%
Ripple & noise	<195mvp-p
AC Input	100~240Vac 50/60Hz max: 90~264Vac 47/63Hz
Efficiency	>88%
Short Circuit Protection	Shall be protected when any output operation in circuit short condition,and shall be auto restart when the fault condition is removed.
Over Current Protection	130%-150%
Over Voltage Protection	115%-135%
Operating Temperature	-10-50ºC (±10ºC)
Relative Humidity	20%-90% RH
Storage Temperature	-40-80ºC (±10ºC)
DC Connector	4 PIN Connector (Customized Available)
DC Cable	0.9m,1.2m/1.5m(Customized Available)
AC Cable	1.2m ac power cord with USA/UK/EU/AU/India plugs

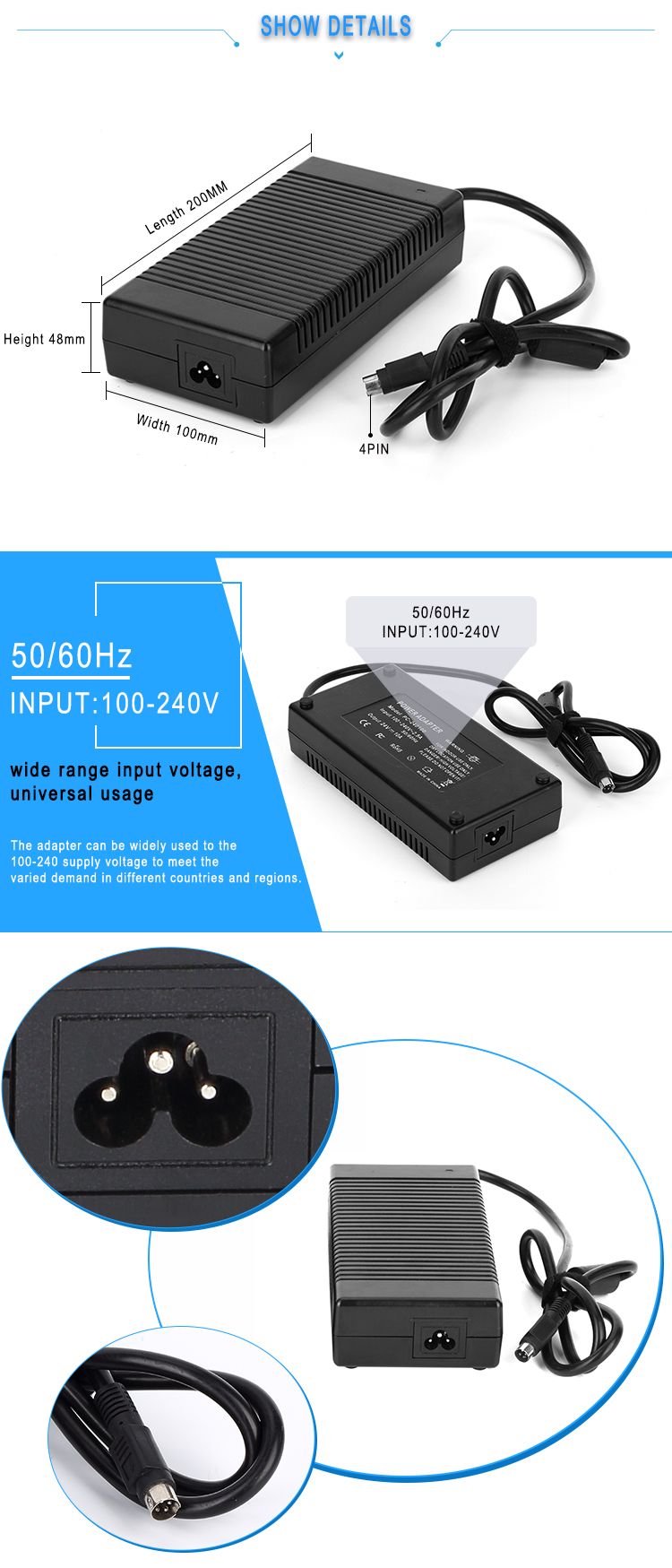

Product show:

Shenzhen Pengchu Industry Co., Ltd. Was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001: 2000 international quality system certification.

We specialize in developing, producing and exporting switching power supply and power adapters for laptops, as well as other related accessories. As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.

All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.

"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.

Shenzhen Pengchu Industry Co., Ltd is always here to help you!
