| Prod Model: |
YZ-300KG-1P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Theory: |
Roller Door Motor |
| Brand Name: |
Universal |
| Max Upgrade Weight Of Shutter Motor: |
300kg |
| Max Upgrade Height Of Shutter Motor: |
6.5m |
| Motor Species: |
Asynchronous Motor |
| Charateristic: |
Compact and Vogue |
| Drive: |
Electricity Supply |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |

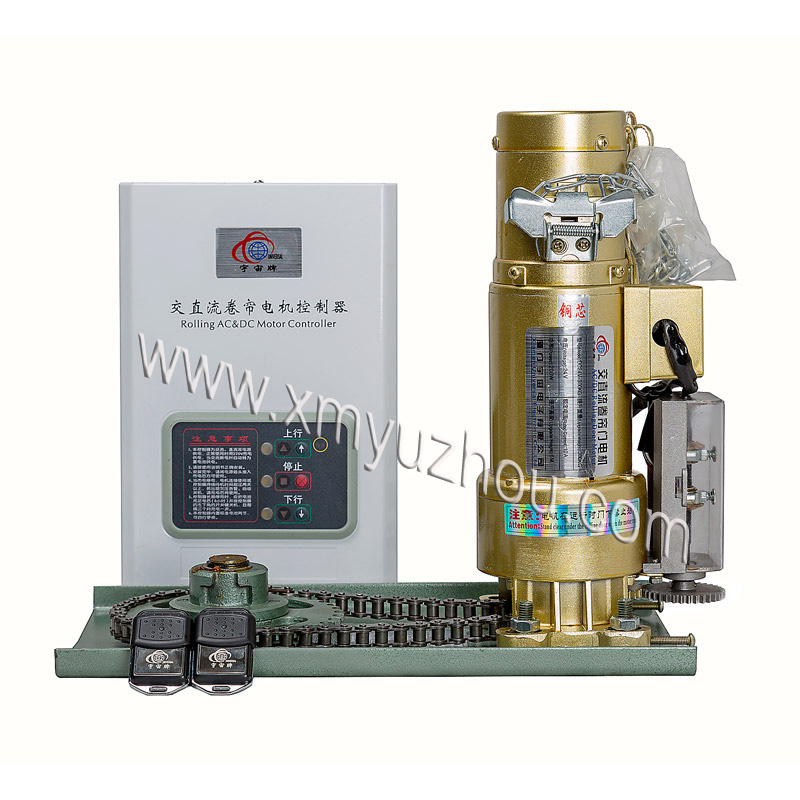

Product Description
Roller Shutter Motor Specification:1)Max Upgrade Weight:600KG
2)Max Upgrade Height:6M
3)Rated Power:370W
4)Rated Current:3.5A
5)Output Torque:412 N.m
6)Rotation Speed:5.2 r/min
7)Chain Number:10A Function and Features:1. Remote control.
2. Low noise, small shaking.
3. With electronic anti-theft apparatus.
4. Good design, advanced struture, strong power.
5. Import electric component, security and credibility.
6. Automatically open or close the doors by pressing relevant buttons.
7. Doors are also workable under the operation of manual control equipment when the power failed.Package Information: 555mm*255mm*194mm(for Motor); 510mm*297mm*110mm(for Accessory)Delivery Modes:By Sea, Air or Express

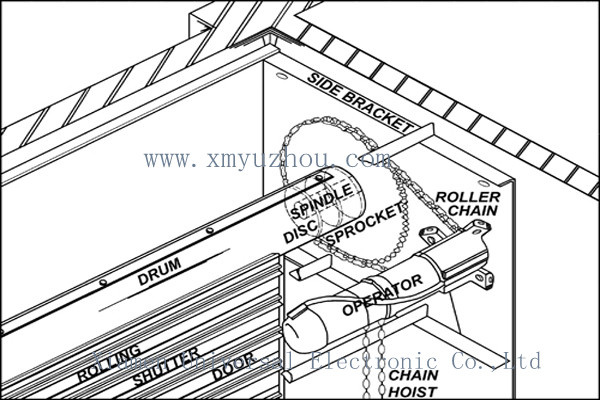

Motor Installation Layout:
Application of motors:
Widely used in shopping malls, hotels, warehouses, garages, post and telecommunications, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.Why Choose Us?
Xiamen Universal Electronic Co.,Ltd, with our strong R&D capabilities and strict product quality control, our Motors have been well received and have been gaining popularity both at home and overseas. All products passed numerous insulation tests in heat, sound and wind, which meet the recent trend of energy saving. Our good reputation in innovation and quality has brought in numerous exporting business and inland trade. If you have any interest in our motors, please browse our website for further imformation or contact us immediately.
Xiamen Universal Electronic Co.,Ltd
No.318. South Tongji Road, Jimei District, Xiamen City, Fujian,China
Mobile: 86-15606003688
Tel: 86-592-5782488
Fax: 86-592-5664223
| (KG) | (M) | (W) | (A) | (N.m) | (r/min) |
|
| Model No. | Max upgrade weight(kg) | Max upgrade height(M) | Power (W) | Current Rating(A) | Output Torque(N.m) | Rotation (r/min) | CHAIN NO. |
| 220V 50Hz(230V 60Hz) |
| YZ300-1P | 300 | 6.5 | 250 | 3.3 | 168 | 6.2 | 10A |
| YZ500-1P | 500 | 6.5 | 250 | 3.9 | 343 | 6.2 | 10A |
| YZ600-1P | 600 | 6.5 | 370 | 3.9 | 412 | 6.2 | 10A |
| YZ800-1P | 800 | 7 | 370 | 4.5 | 607 | 3.4 | 10A |
| YZ1000-1P | 1000 | 7 | 400 | 4.5 | 1102 | 3.2 | 10A |
| 380V 50Hz(380V 60Hz) |
| YZ300-3P | 300 | 6.5 | 180 | 1.2 | 168 | 6.2 | 10A |
| YZ500-3P | 500 | 6.5 | 250 | 1.3 | 343 | 6.2 | 10A |
| YZ600-3P | 600 | 6.5 | 250 | 1.3 | 412 | 6.2 | 10A |
| YZ800-3P | 800 | 7 | 300 | 2 | 607 | 3.4 | 10A |
| YZ1000-3P | 1000 | 8 | 400 | 2.3 | 1102 | 6.5 | 12A |
| YZ1300-3P | 1300 | 8 | 600 | 3 | 1372 | 6.5 | 12A |
| YZ1500-3P | 1500 | 8 | 600 | 3.2 | 1610 | 5.7 | 12A
|
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
