AC Contactor 9A -95A 380V 3phase
| Price: |
US $ 18/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
MC1-D series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model 1: |
Mc1-D09: 20A |
| Model 2: |
Mc1-D12:25A |
| Model 3: |
Mc1-D18:32A |
| Model 4: |
Mc1-D25:40A |
| Model 5: |
Mc1-D32: 50A |
| Model 6: |
Mc1-D40:60A |
| Model 7: |
Mc1-D50: 80A |
| Model 8: |
Mc1-D65:100A |
| Model 9: |
Mc1-D80:125A |
| Model 10: |
Mc1-D95: 150A |
| Load: |
High Power Relay |
| Theory: |
Time Relay |
| Size: |
Miniature |
| Usage: |
Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay |
| Action Principle: |
Electronic Type |
Product Description

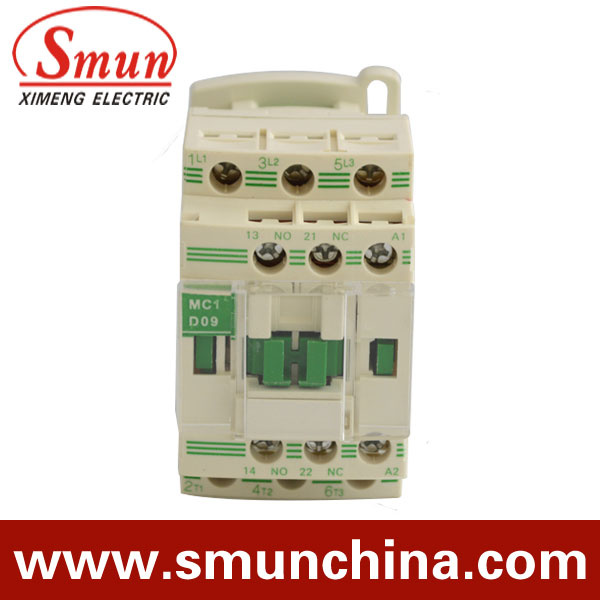

MC1-D Magnetic AC Contactor
1) Rated voltage 660V AC50/60Hz, rated current up to 95
2) OEM
3) CE, CB, ISO9001, 14001, IEC
| Type | MC1-D09 | MC1-D12 | MC1-D18 | MC1-D25 | MC1-D32 |
| Rated operational current(A) | 380V | AC-3 | 9 | 12 | 18 | 25 | 32 |
| AC-4 | 3.5 | 5 | 7.7 | 8.5 | 12 |
| 660V | AC-3 | 6.6 | 8.9 | 12 | 18 | 21 |
| AC-4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 |
| Rated conventional thermal current(A) | 20 | 20 | 32 | 40 | 50 |
| rated insulation voltage (V) | 690 | 690 | 690 | 690 | 690 |
| Rated operational power in category AC-3KW | 220V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380V | 4 | 5.5 | 7.5 | 11 | 15 |
| 660V | 5.5 | 7.5 | 10 | 15 | 18.5 |
| Operation cycles (timers/hour) | Electrical | AC-3 | 1200 | 1200 | 1200 | 1200 | 1200 |
| AC-4 | 300 | 300 | 300 | 300 | 300 |
| Mechanical | 3600 | 3600 | 3600 | 3600 | 3600 |
| Electrical life (*10*5times) | AC-3 | 100 | 100 | 100 | 100 | 100 |
| AC-4 | 20 | 20 | 20 | 20 | 20 |
| Mechanical life(*10*5times) | 1000 | 1000 | 1000 | 1000 | 1000 |
| matching fuse model | RT16-20 | RT16-20 | RT16-32 | RT16-40 | RT16-50 |
|
|
|
|
|
|
|
|
| Type | MC1-D40 | MC1-D50 | MC1-D65 | MC1-80 | MC1-D95 |
| Rated operational current(A) | 380V | AC-3 | 40 | 50 | 65 | 80 | 95 |
| AC-4 | 18.5 | 24 | 28 | 37 | 44 |
| 660V | AC-3 | 34 | 39 | 42 | 49 | 49 |
| AC-4 | 9 | 12 | 14 | 17.3 | 21.3 |
| Rated conventional thermal current(A) | 60 | 80 | 80 | 95 | 95 |
| rated insulation voltage (V) | 690 | 690 | 690 | 690 | 690 |
| Rated operational power in category AC-3KW | 220V | 11 | 15 | 18.5 | 22 | 25 |
| 380V | 18.5 | 22 | 30 | 37 | 45 |
| 660V | 30 | 37 | 37 | 45 | 45 |
| Intermittent periodic duty-type motor frequency AC-4KW | 380V | 1.5 | 2.2 | 3 | 4 | 5.5 |
| 660V | 1.1 | 1.5 | 3.7 | 4 | 5.5 |
| Operation cycles (timers/hour) | Electrical | AC-3 | 600 | 600 | 600 | 1200 | 600 |
| AC-4 | 300 | 300 | 300 | 300 | 300 |
| Mechanical |
| 3600 | 3600 | 3600 | 3600 | 3600 |
| Electrical life (*10*5times) | AC-3 | 80 | 60 | 60 | 60 | 60 |
| AC-4 | 15 | 15 | 15 | 10 | 10 |
| Mechanical life(*10*5times) | 800 | 800 | 800 | 600 | 600 |
| matching fuse model | RT16-63 | RT16-80 | RT16-80 | RT16-100 | RT16-125 |
