AC Contactor Definite Purpose Contactor with UL Certificate

Name: AC Contactor Definite Purpose Contactor with UL Certificate
Brand: all-electronics-online.com
SKU: 779042615
Availability: InStock
Rating: 4.5 (137 reviews)

Price:	US $ 33.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCJX9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Items:	Scjx9 Purpose Contactor for Air-Conditon
Rated Current:	20A ,30A ,40A
Pole No.:	1p 2p 3p
Service:	OEM and ODM
Applications:	HVAC Parts
Warranty Time:	2 Years
Certificate:	Ce and UL
Quality Grade:	a and B Grade Quality

Product Description

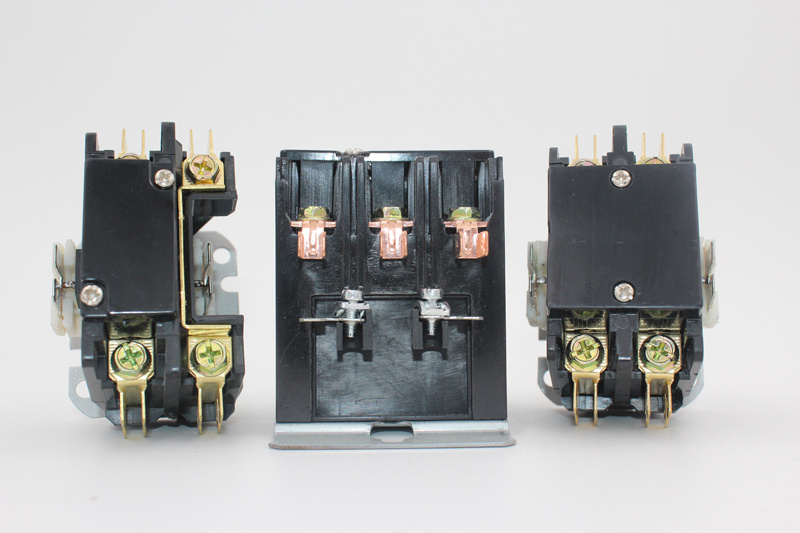

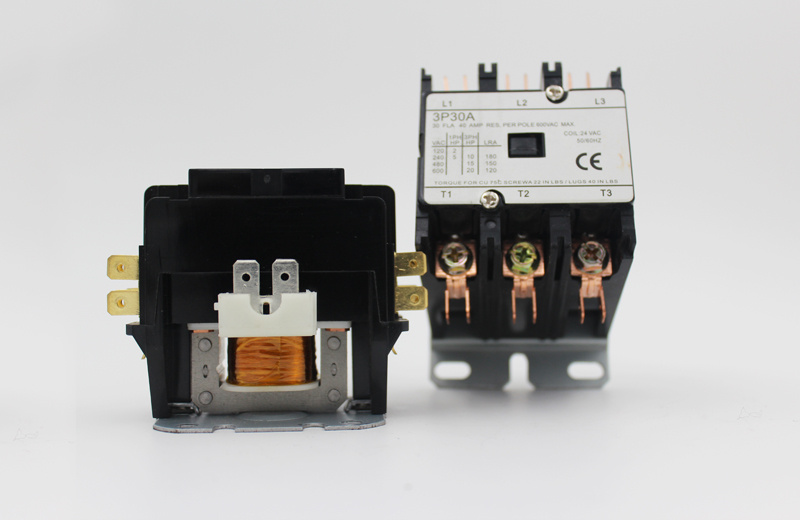

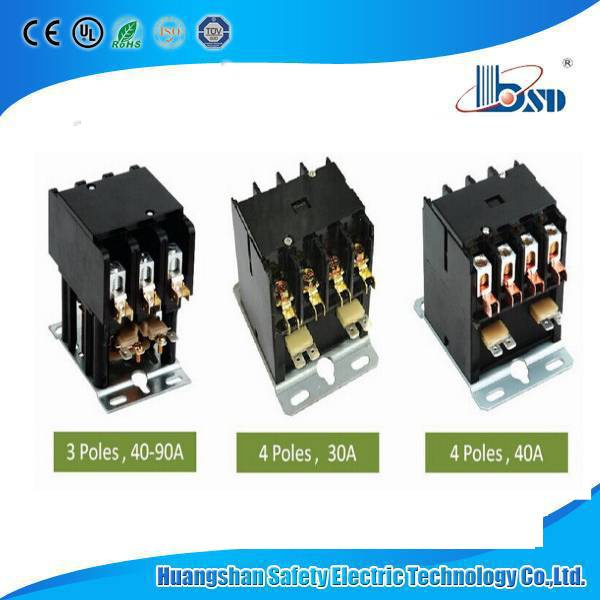

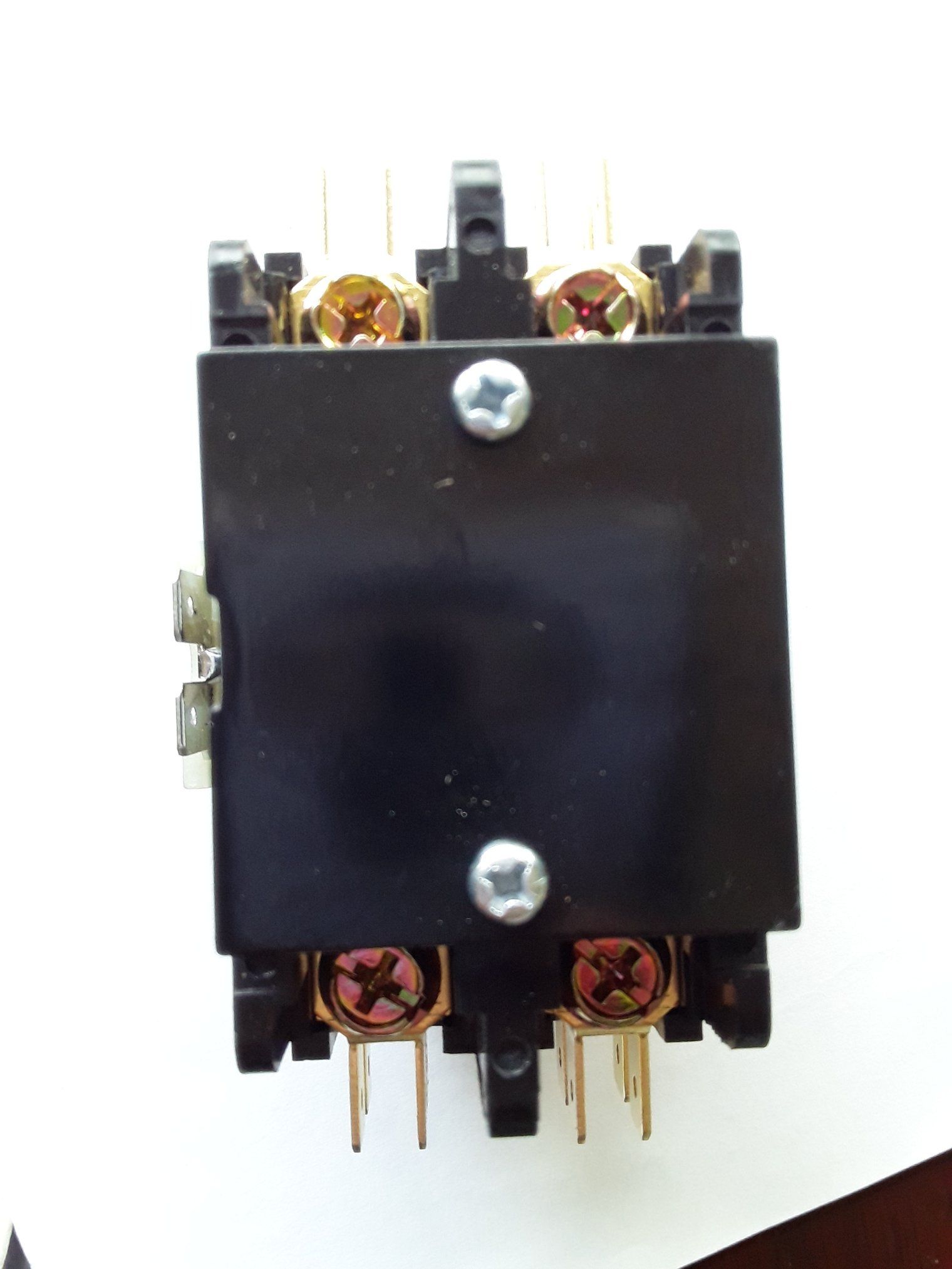

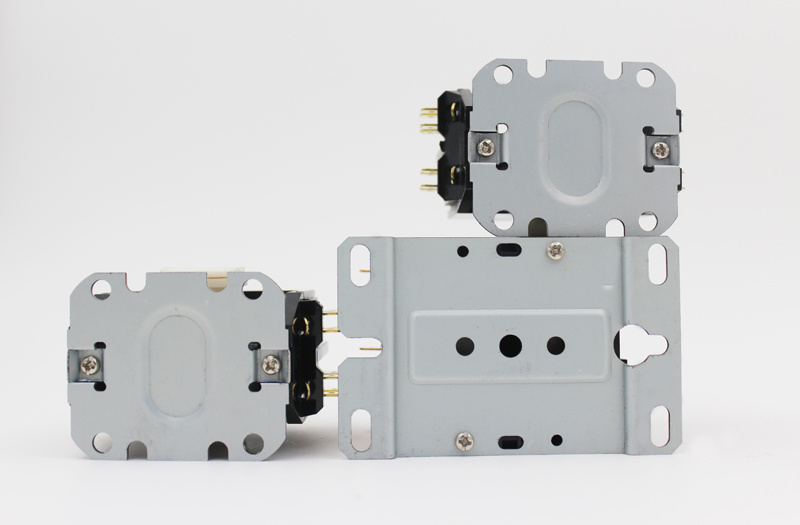

HVAC UL certificate single phase high quality copper parts definite purpose contactor,220v single phase electrical contactor

Application

-----------------------------------------------------------------------------------------------------------------------------------------------

CJX9 definite purpose contactor (Follow defers to DP Contactor),mainly is suitable for 50HZ or 60HZ.When the AC-8A use category fixed working voltage is 204V or 277V the normal current up to the 40A electric circuit is suitable for the starting and the control single - phase motor (or compressor) and other single - phase loads.Mainly uses in the domestic electric appliances profession,specially in air conditioning profession,conforms to IEC60947.

SPECIFICATION

-----------------------------------------------------------------------------------------------------------------------------------------------

Coil rating	1Pole contactors				2 pole contacts
Nominal coil voltage	24	120	208/240	277	24	120	208/240	277
Nominal coil resistance Ohms	18	420	1800	2500	11	237	1000	1600
Maximum pick up voltage	18	88	177	221	18	88	177	221
Maximum drop out voltage	6-15	20-70	40-140	50-165	6-15	20-70	40-140	50-165
Nominal rush Va@50Hz	31	31	31	31	33	33	33	33
Nominal rush Va@60Hz	28	28	28	28	30	30	30	30
Nominal rush Va@50Hz	6	6	6	6	8	8	8	8
Nominal rush Va@60Hz	5	5	5	5	6.5	6.5	6.5	6.5
Maximum coil voltage	30	132	264	300	30	132	132	300

Coil rating	3Pole contactors				4 pole contacts
Nominal coil voltage	24	120	208/240	277	24	120	208/240	277
Nominal coil resistance Ohms	7	180	720	900	6	150	600	750
Maximum pick up voltage	18	88	177	220	18	88	177	220
Maximum drop out voltage	6-15	20-70	40-140	50-165	6-15	20-70	40-140	65-185
Nominal rush Va@50Hz	65	65	65	65	62	62	62	62
Nominal rush Va@60Hz	60	60	60	60	59	59	59	59
Nominal rush Va@50Hz	7.5	7.5	7.5	7.5	9	9	9	9
Nominal rush Va@60Hz	6	6	6	6	7	7	6	7
Maximum coil voltage	30	132	264	300	30	132	264	300

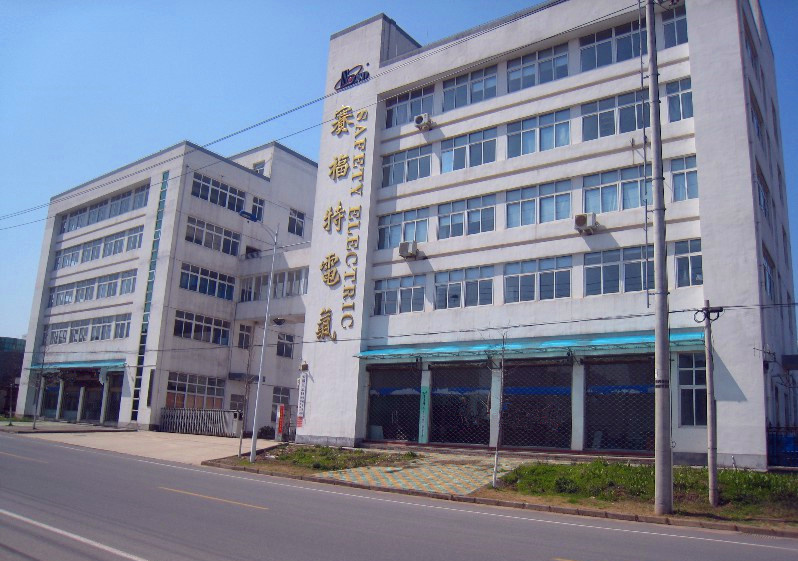

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
