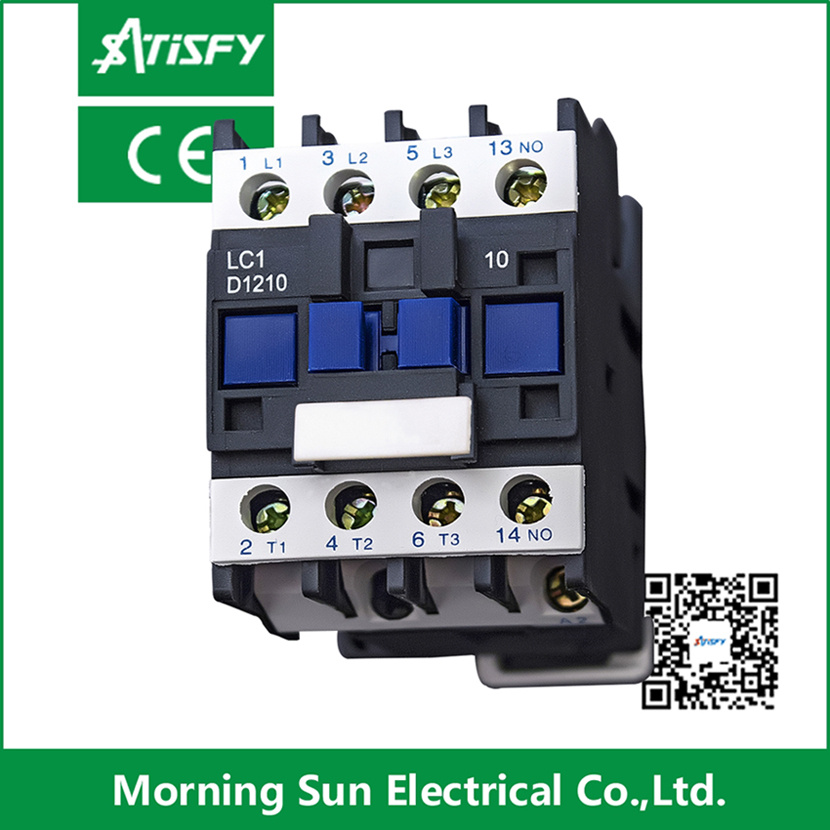

AC Contactor LC1-D1210

Name: AC Contactor LC1-D1210
Brand: all-electronics-online.com
SKU: 782461515
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 1.60/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-D1210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM

Product Description

1) LC1-D95series AC Contactor is suitabie for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor.

2) Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contsctor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4, GB14048-4.

type	rated operation current Ie A AC-3 380V	control power kw					contact volume
type	rated operation current Ie A AC-3 380V	220V	380V	415V	440V	660V	3P+NOor 3P+NC
LC1-09	9	2.2	4	4	4	5.5
LC1-12	12	3	5.5	5.5	5.5	7.5
LC1-18	18	4	7.5	9	9	9
LC1-25	25	5.5	11	11	11	15
LC1-32	32	7.5	15	15	15	18.5
LC1-38	38	9	18.5	18.5	18.5	18.5
LC1-40	40	11	18.5	22	22	30	3P+NO+NC
LC1-50	50	15	22	25	30	33
LC1-65	65	18.5	30	37	37	37
LC1-80	80	22	37	45	45	45
LC1-95	95	25	45	45	45	45
