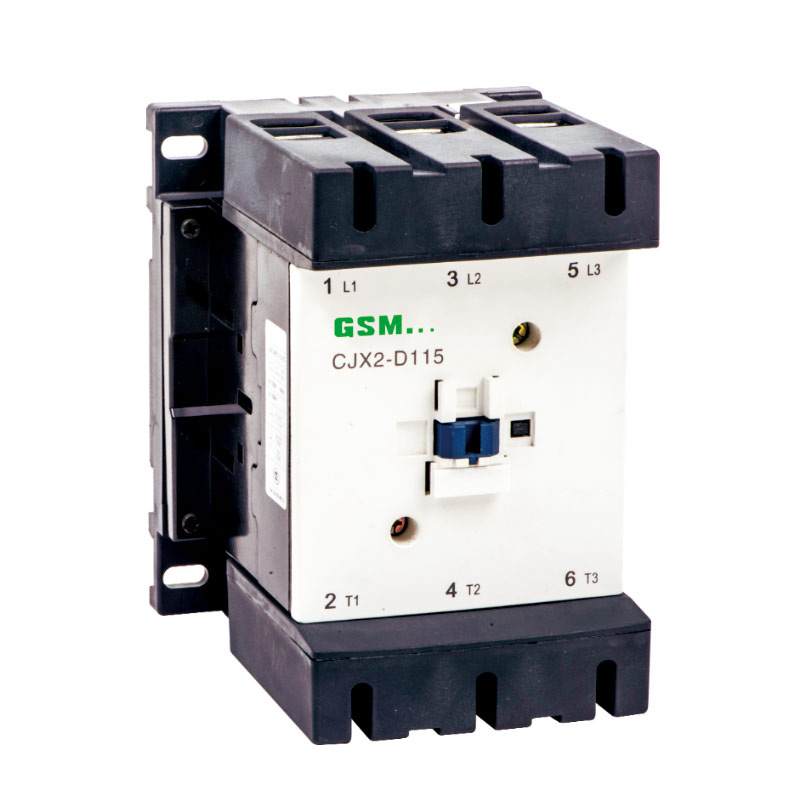

AC Contactor New Type Cjx2-D115-620/ LC1-D115-620

Name: AC Contactor New Type Cjx2-D115-620/ LC1-D115-620
Brand: all-electronics-online.com
SKU: 803302475
Availability: InStock
Rating: 4.3 (146 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-D115

Product Description

Product Description
Hot Sale 3 Pole LC1d Magnetic AC Contactor
LC1D types of AC contactor

APPLICATION
-----------------------------------------------------------------------------------------------------------------------------------------------
LC1-D09 AC Contactor is suitable for using in the circuits up to the rated voltage 660v,AC 50hz or 60hz,rated current up to 95A,for making ,breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking contactor,star-delta starter.with the thermal relay,it is combined into the electromagnetic starter.The contactor is produced according to IEC947-2,VDE0660&BS5442

SPECIFICATION
-----------------------------------------------------------------------------------------------------------------------------------------------
Product Specification

Type	Rated current AC3 Ue≤440V	Rate heating current AC10≤40°	Rated power AC3 3-phase motor 0≤40°						Rated power AC4 3-phase motor 0<40°
	Rated current AC3 Ue≤440V	Rate heating current AC10≤40°	220/240V	380/400V	400V	500V	600/690V	1000V	200/230V	380/400V	440V	500V
	A	A	KW	KW	KW	KW	KW	KW	KW	KW	KW	KW
CJX2-D115	115	200	30	55	59	75	80	75	9	18.5	18.5	30
CJX2-D150	150	250	40	75	80	90	100	90	11	22	22	37
CJX2-D170	170	250	55	90	100	110	110	100	22	40	45	51
CJX2-D205	205	275	63	110	110	120	129	100	25	45	51	59
CJX2-D245	245	315	75	132	132	160	160	147	30	55	63	75
CJX2-D300	300	400	100	160	200	200	220	160	37	63	75	80
CJX2-D410	410	500	110	220	250	250	280	185	40	75	80	90
CJX2-D475	475	700	147	265	280	335	335	335	45	80	100	110
CJX2-D620	620	1000	200	335	400	400	450	450	55	100	110	132

Matching coil volts

Voltage volts

110

220

230

240

380

400

415

440

500

660

50HZ

60HZ

50/60HZ
