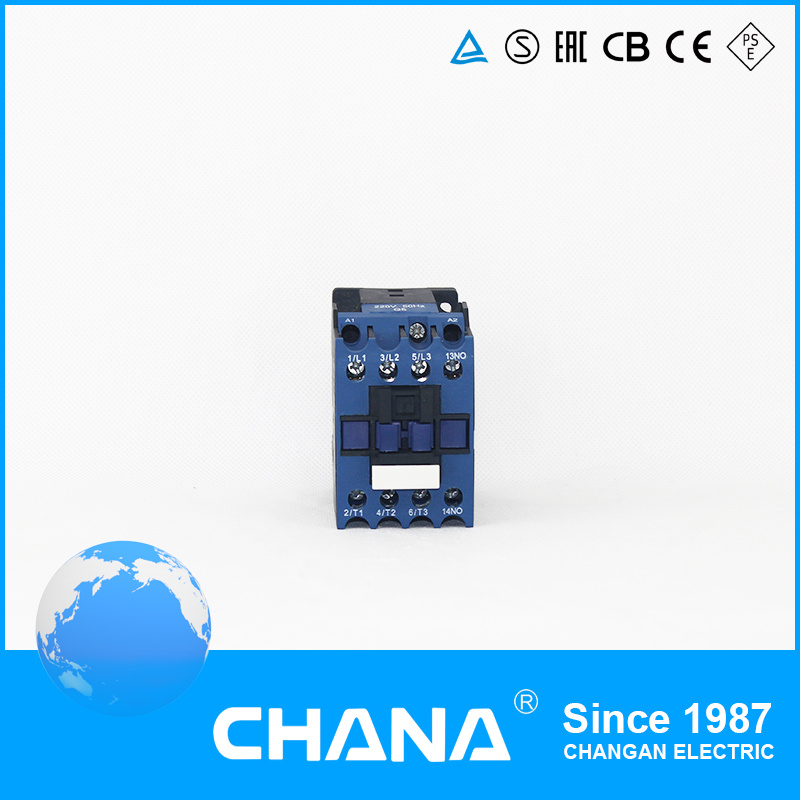

AC Contactor with CB and Ce Approvals (LC1-09)

Name: AC Contactor with CB and Ce Approvals (LC1-09)
Brand: all-electronics-online.com
SKU: 743154235
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	US $ 2.8-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-09 9A 3P+Auxiliary
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard:	IEC60947-4-1
Theory:	Electromagnetic Relay
Action Principle:	Electromagnetic Type
Protective Characteristics:	Contactor
Load:	Motor
Size:	Normal
Usage:	Frequent Start-up and Control of AC Contactor
Brand Type:	Chana or OEM
Contact Quality:	85% Silver Contact/50% Silver Contact

Product Description

1. General

1) Application: remote making & breaking circuits; protect circuit
from over-load when assembling with thermal over-load relay;.
frequent start-up and control of AC contactor;
2) Electric ratings: AC50/60Hz, 690V, up to 95A;
3) Utilization category: AC-3, AC-4;
4) Altitude: ≤2000m;
5) Ambient temperature: -5ºC~+40ºC;
6) Mounting category: III;
7) Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°;

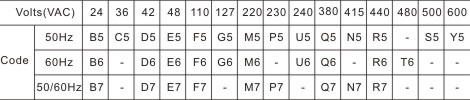

8) Standard: IEC/EN 60947-4-1. .IEC/EN 60947-5-1. 9) Control Coil Voltage(AC Coil Operation)

Control Coil Voltage(DC Coil Operation)

2. Technical Data

Standard	IEC/EN60947-4-1 IEC/EN60947-5-1
Model No.		CC1-09	CC1-12	CC1-18	CC1-25	CC1-32
Rated Conventional Heating Current	Ith(A)	20	20	32	40	50
Rated Voltage Ui (V)	Ui(V)	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Ie(A)	9	12	18	25	32
Rated Operation Current Ue=380/415V	AC-4 Ie(A)	3.5	5	7.7	8.5	12
Power Controlled 3ph cage motor AC-3	220/240V KW	2.2	3	4	5.5	7.5
	380/415V KW	4	5.5	7.5	11	15
	660/690V KW	5.5	7.5	10	15	18.5
Electrial life (×10³ operations)	AC-3	1000	1000	1000	1000	800
Electrial life (×10³ operations)	AC-4	200	200	200	200	200
Mechanical life(×10∧6 operations)		10	10	10	10	8
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
Matched Fuse	A	20	20	32	40	50
Main circuit	3P or 4P
Auxiliary circuit Cat.:AC-15 Ue=415V Ie=0.95A Ith=10A	1NO+1NC

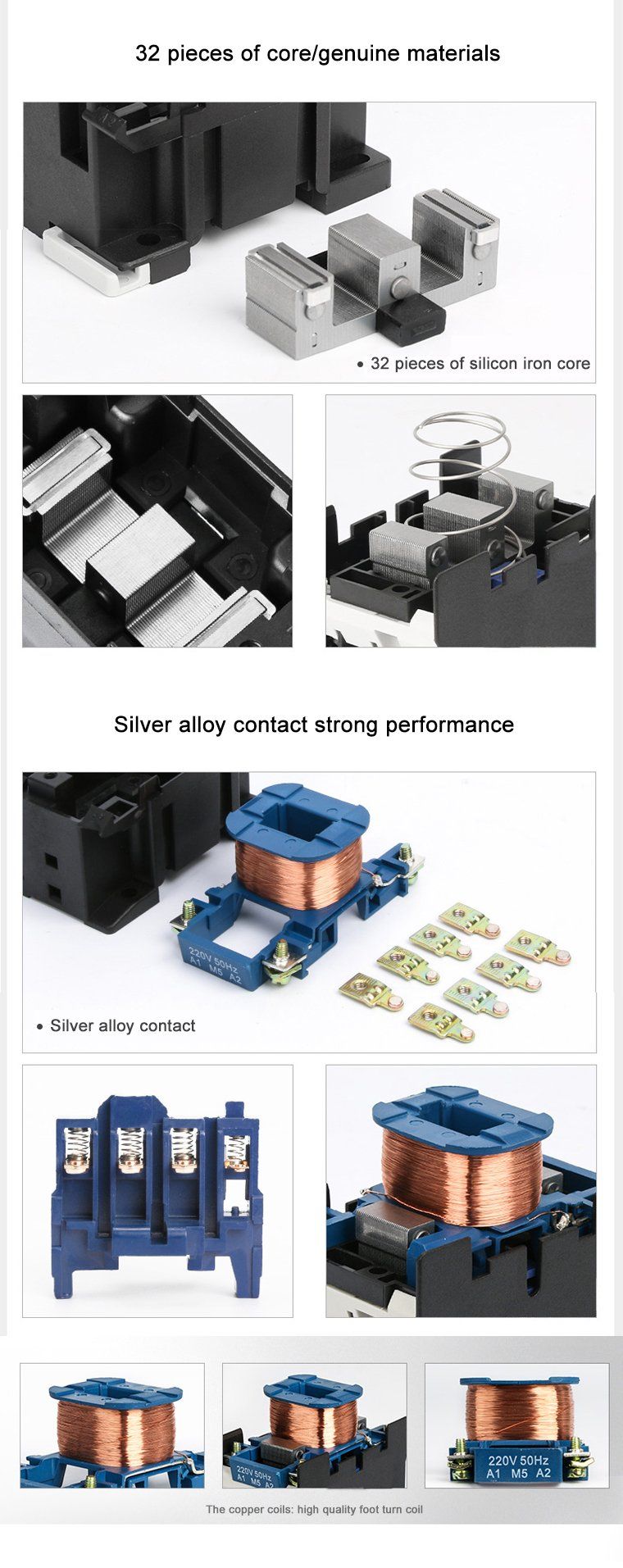

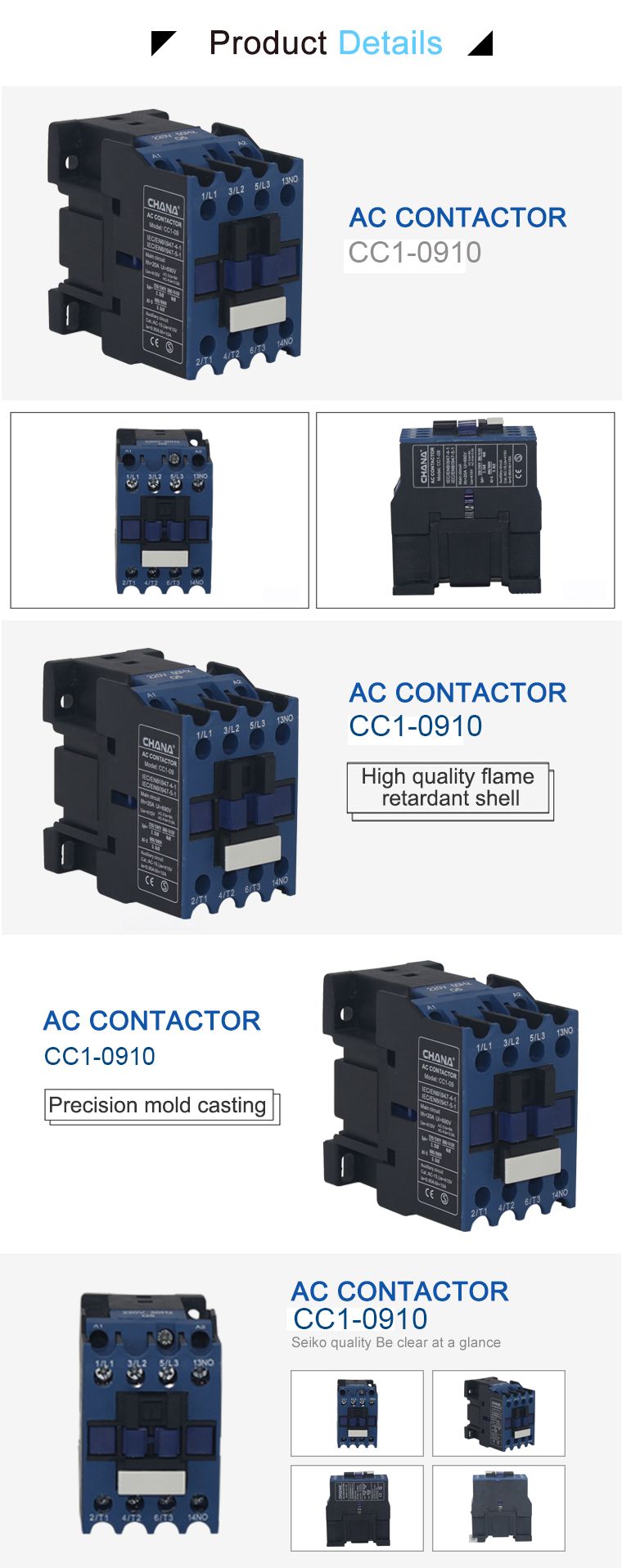

3. Product detalis

4. Company Profiles

5. Our Services

How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed, PI will be sent for payment.
4. After get your deposit, production will be arranged within one day.
5. When goods ready, all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
