| Prod Model: |
YZ-600KG-1P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |

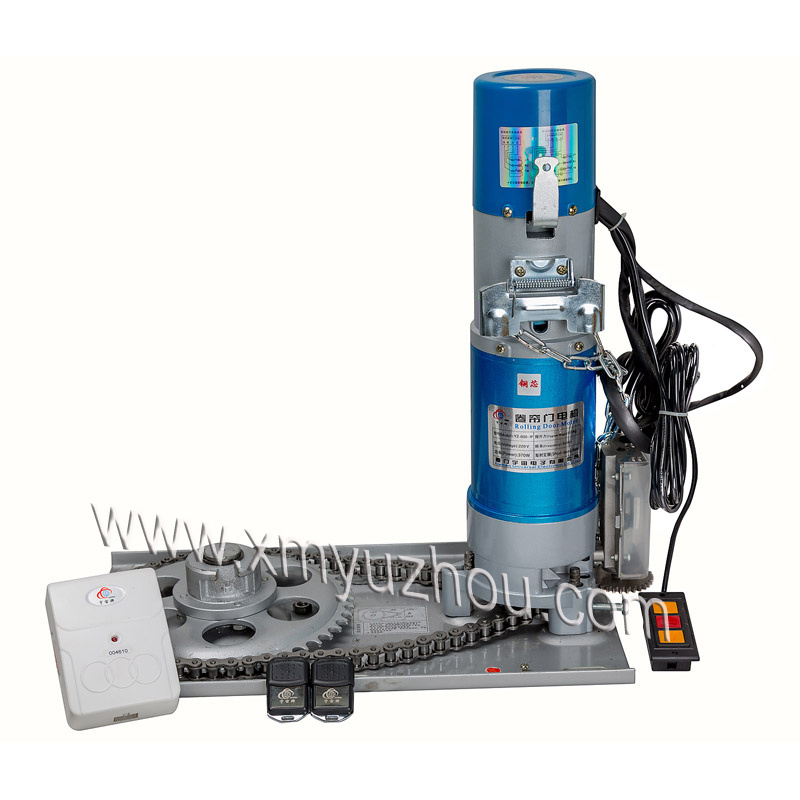

AC Copper Roller Shutter Motor |
| Power Supply: |
220V 50Hz |
| Max Lifting Force: |
600kg |
| Max Lifting Height: |
6m |
| Color: |
Blue |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Application: |
Roller Shutter |
| Brand: |
Yuzhou |
Product Description
Automatic Rolling Door Opener Specifications:
1)Max Upgrade Weight: 600KG
2)Max Upgrade Height: 6M
3)Rated Current: 3.5A
4)Output Torque: 412 N. M
5)Rotation Speed: 5.2 r/min
6)Chain Number: 10A
Working environment and conditions:
1) Voltage and frequency is in line with the product nameplate.
2) Short-time work system, continuous working not exceeding 5 mins.
3) Roller Door Motor are using 220V or 380V AC power supply;
4) Can be matched with manually lock button and security locking;
Motor Functions:
1) Shell: Aluminium alloy, solid and light;
2) Remote control: Long-distance operation;
2) It is convenient to manual operation when power failed;
3) Thermal protection device could protect rolling door from damage and motor burned;
4) Operations are stable, low noise, small vibration.
Application of Motors:
Widely used in shopping malls, hotels, warehouses, garages, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.
Why Choose Us?
Xiamen Universal Electronic Co., Ltd, with our strong R&D capabilities and strict product quality control, our Motors have been well received and have been gaining popularity both at home and overseas. All products passed numerous insulation tests in heat, sound and wind, which meet the recent trend of energy saving. Our good reputation in innovation and quality has brought in numerous exporting business and inland trade. If you have any interest in our motors, please browse our website for further imformation or contact us immediately.
Our Service:
Any inquiry/question will be reply in 24 hours during working days.
Sample order: Available, the customers should charge the sample fee and freight cost.
OEM for customers is available.
Delivery time: 2-4 weeks after order confirmation.
Terms of Payment: T/T, Paypal, Western Union, etc.
Accessory size chosing: 4 inches, 5 inches, 6 inches
Packing: Carton packed fill with foam;
One set in 2 cartons: 1CTN for main motor, 1 CTN for accessories
Terms of Shipping:
By Express: FedEx/DHL/UPS/TNT/EMS, etc.
Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
Contact Information
Name: Bruce Lee
Mobile: 86-15606003688
Tel: 86-592-5782488
Website: http://xmyuzhou.en.alibaba.com
| Model No. | Max
Upgrade
Weight
(KG) | Max
Upgrade
Height
(M) | Power
(W) | Current
Rating
(A) | Output
Torque
(N.m) | Rotation
(r/min) | Chain
NO. |
| 220V 50Hz (230V 60Hz) |
| YZ-300-1P | 300 | 4.5 | 180 | 2.2 | 168 | 3.8 | 08B |
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A |
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A |
| YZ-800-1P | 800 | 6 | 400 | 4.2 | 650 | 4.8 | 10A |
| YZ-1000-1P | 1000 | 10 | 800 | 5.8 | 810 | 4.2 | 10A |
| 380V 50Hz (380V 60Hz) |
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A |
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A |
| YZ-1300-3P | 1300 | 10 | 800 | 2 | 1050 | 4.2 | 12A |
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A |
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
