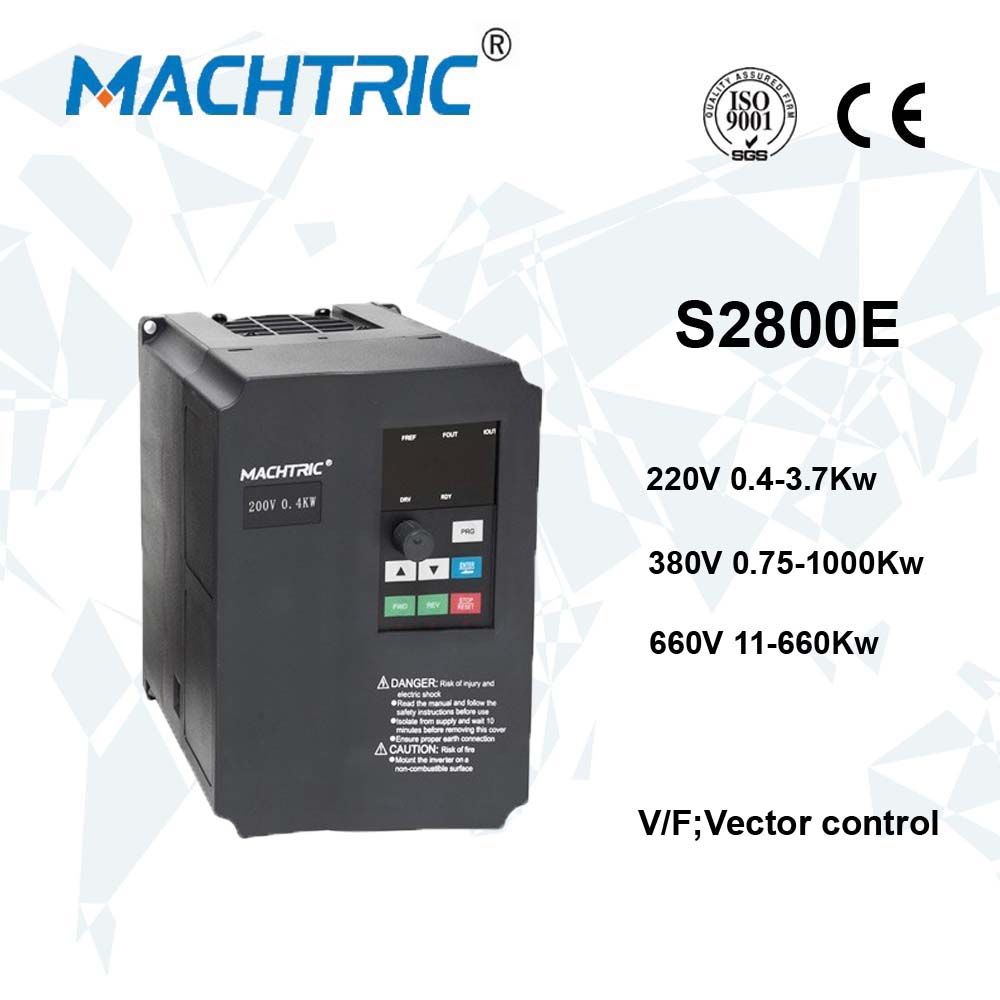

| Prod Model: |
S2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AC Drive: |
AC Motor Drives |
| Power Rate: |
220V 0.4-3.7kw;380V 0.75-1000kw;660V 11-660kw |
| VSD: |
Variable Speed Drive |
| VFD: |
Variable Frequency Drive |
| Vvvf: |
Variable Voltage Variable Frequency |
| Voltage: |
220V, 380V or 660V |
| Control Method: |
V/F;Vector Control |
| Output Frequency Range: |
0-600Hz |
| Carrier Frequency: |
0.5-15Hz |
| Adjustable Frequency: |
Stable Frequency |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
AC-DC-AC |
| Function: |
General Used |
| Brand: |
Machtric |
Product Description
AC-DC-AC 0.75-1000kw Variable Frequency Converter AC Drive for Motors
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Votage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Techinc | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequeny | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |

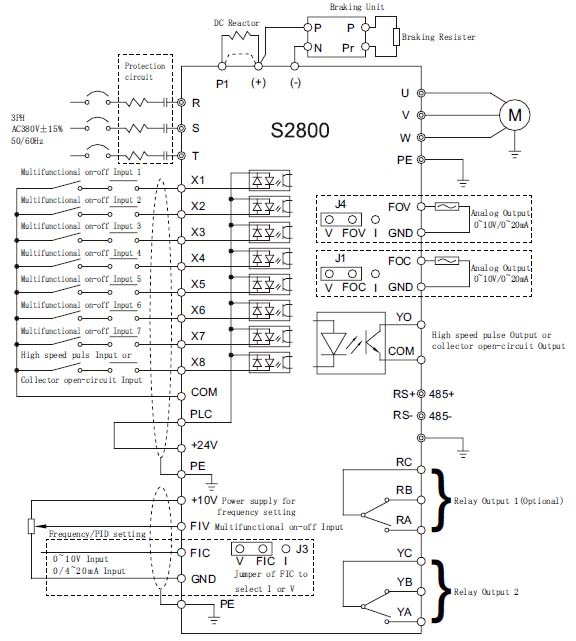

Wiring diagram:
Products advantage:- Certification: ISO9001 & CE
- Reasonable price
- Received the National Invention Award
Company advantage:1.70-80 strong R&D team to meet OEM require
2. OEM accepted
3. Quality as Mitsubishi, Toshiba, LS(LG), Delta.
But price is much competitive compared with them
4. Certificate: OHSAS18000, ISO14001
Shipping way:1. By sea 2 By express: DHL, UPS, FedEx...3 By air
Payment: T/T, Western Union
Target market of S2800 E series Inverter Paper machinery Screw output device
Drawing Equipment Dyeing plant
Injection plastic equipment Air conditioning system
Machine tool equipment Boiler system
Chemical fiber equipment Water supply, oil transportation installation. Etc
Textile equipment
Why choose us? 20 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
One to one pre-sales consulting services
Factory located in Shanghai, with high-tech professional engineer teams.
