Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |

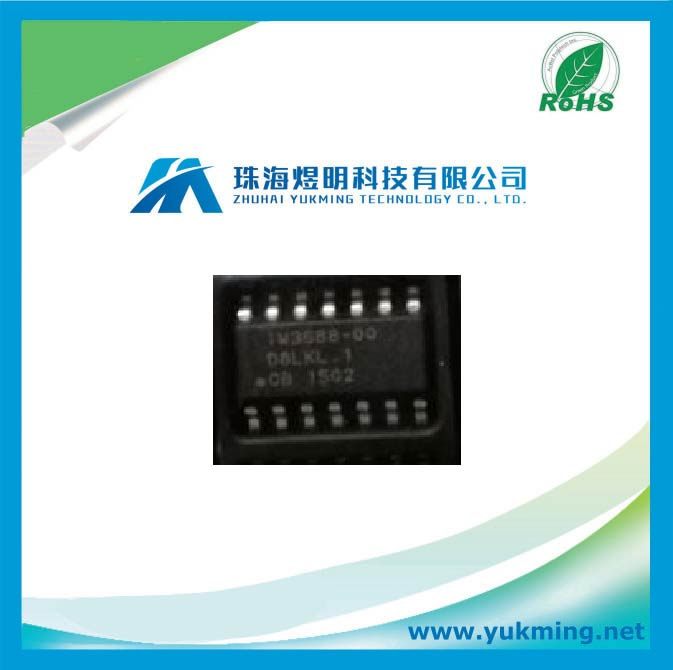

AC/DC Advanced Digital Power Controller forSingle-Stage Dimmable LED Drivers 1.0 FeaturesIsolated/non-isolated off-line 120VAC/230VAC LED driver up to 20W output powerWide line frequency range (from 45Hz to 66Hz)Meets IEC61000-3-2 current harmonic requirementTotal harmonic distortion \< 20% with PF > 0.92 Excellent dimmer compatibility -Leading-edge dimmer -Trailing-edge dimmer -Digital smart dimmerWide dimming range of 1% to 100% Intelligent digital control integrating current sink function into power switching circuitAdvanced IC power management and voltage sensing enables the use of off-the-shelf inductorResonant control to achieve high efficiency(typical>85%without dimmer)Excellent AC line distortion immunity ensures quality of product under real-life circumstancesOver-temperature LED current foldback and shutdownTight LED current regulation (+/-5%)Fast start-up (\< 0.5s without dimmer)Multiple protection features that include: -LED open-circuit and short-circuit protection -Current sensing resistor open circuit and short-circuit protection -Over-current protection 2.0 DescriptionThe iW3688 is a single-stage, high-performance AC/DC off-linepower supply controller for dimmable LED luminaires. It appliesadvanced digital control technology to detect the dimmer type,enabling it to provide dynamic impedance to interface with the dimmer and to control the LED brightness at the same time. With advanced dimmer detection technology, the iW3688 can operate with most wall dimmers including leading- Edge dimmers (R-type or R-L type), trailing-edge dimmers(R-C type), and smart dimmers. In addition, the iW3688's cycle-by-cycle waveform analysis technology allows for fast dimmer transient response. In no-dimmer mode, the iW3688 operates the main powerconverter that delivers current to the LED load in quasi- resonant mode to provide high power efficiency and lowelectro-magnetic interference (EMI). When there is no dimmer on the line, the iW3688 optimizes the power factorand minimizes the current harmonic distortion to the AC lineThe commonly utilized converter topologies for iW3688 arebuck-boost and flyback. The iW3688 uses patented PrimAccurate™ primary-sidesensing technology to achieve excellent LED currentregulation under different AC line and LED load voltages,without using a secondary-side feedback circuit and thus eliminating the need for an opto-coupler. The iW3688 minimizes the external components count bysimplifying the EMI filter with Dialog's EZ-EMI technologyand by integrating current sink, switching, and Vcccharging circuit. Additionally, the iW3688 does not requirean auxiliary winding, which eliminates the need for a custominductor. The digital control loop of the iW3688 maintainsstability over all operating conditions without the need forloop compensation components. The iW3688 maintains high performance wide-rangedimming and achieves excellent dimmer compatibility with asimple application circuit. 3.0 ApplicationsDimmable LED retrofit lamps up to 20WDimmable LED luminaires up to 20WAny items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!
Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.
In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.
We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.
All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.
Following "Quality First, Service Oriented", Yukming is here for you!
