| Prod Model: |
S |
| Power: |
15-320W |
| Type: |
Enclosed |
| Output: |
Single |
| Input: |
AC 220V |
| Output Voltage: |
3- 48V |
| Efficiency: |
84%~89% |
| R&N: |
80, 120 or 150mv |
| Dimensions: |
12.5*12.5*100mm, 227*125.2*100mm |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
| Brand: |
Tosunlux |

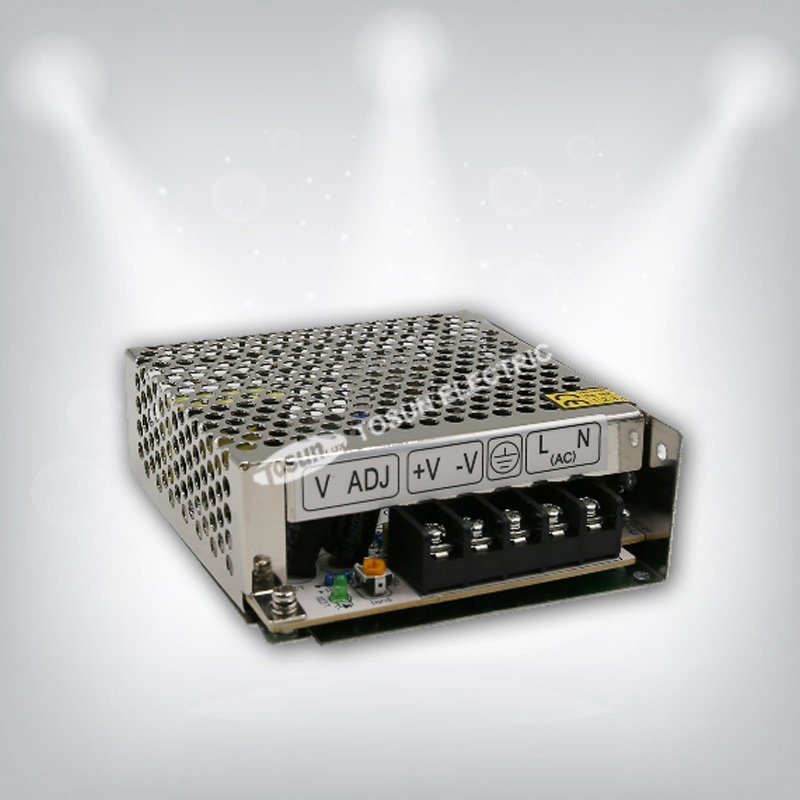

Product Description
Specification
| 15W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-15-5 | 5V,0~3.0A | ±2% | 50mV | 65% |
| S-15-12 | 12V,0~1.3A | ±1% | 50mV | 68% |
| S-15-24 | 24V,0~0.7A | ±1% | 50mV | 73% |
| 35W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-35-5 | 5V,0~7.0A | ±2% | 75mV | 70% |
| S-35-12 | 12V,0~3.0A | ±1% | 100mV | 76% |
| S-35-15 | 15V,0~2.4A | ±1% | 100mV | 78% |
| S-35-24 | 24V,0~1.5A | ±1% | 100mV | 78% |
| 50W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-50-5 | 5V,0~10A | ±2% | 75mV | 71% |
| S-50-12 | 12V,0~4.2A | ±1% | 100mV | 78% |
| S-50-15 | 15V,0~3.4A | ±1% | 100mV | 78% |
| S-50-24 | 24V,0~2.1A | ±1% | 100mV | 82% |
| 75W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-75-5 | 5V,0~15A | ±2% | 80mV | 72% |
| S-75-12 | 12V,0~6.3A | ±2% | 80mV | 77% |
| S-75-15 | 15V,0~5.0A | ±2% | 80mV | 79% |
| S-75-24 | 24V,0~3.2A | ±1% | 100mV | 80% |
| 100W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-100-3 | 3V,0~20A | ±2% | 100mV | 70% |
| S-100-5 | 5V,0~20A | ±2% | 100mV | 78% |
| S-100-7.5 | 7.5V,0~13.6A | ±2% | 100mV | 80% |
| S-100-10 | 10V,0~10A | ±1% | 100mV | 80% |
| S-100-12 | 12V,0~8.5A | ±1% | 100mV | 81% |
| S-100-15 | 15V,0~6.7A | ±1% | 100mV | 81% |
| S-100-18 | 18V,0~5.6A | ±1% | 100mV | 82% |
| S-100-24 | 24V,0~4.5A | ±1% | 100mV | 84% |
| S-100-27 | 27V,0~3.7A | ±1% | 100mV | 84% |
| S-100-48 | 48V,0~2.0A | ±1% | 100mV | 84% |
| S-100F-5 | 5V,0~20A | ±1% | 100mV | 76% |
| S-100F-7.5 | 7.5V,0~13.5A | ±1% | 100mV | 78% |
| S-100F-12 | 12V,0~8.5A | ±1% | 100mV | 80% |
| S-100F-15 | 15V,0~6.7A | ±1% | 100mV | 81% |
| S-100F-24 | 24V,0~4.5A | ±1% | 100mV | 83% |
| S-100F-48 | 48V,0~2.2A | ±1% | 100mV | 84% |
| 150W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-150-5 | 5V,0~30A | ±2% | 150mV | 78% |
| S-150-7.5 | 7.5V,0~20A | ±1% | 150mV | 80% |
| S-150-9 | 9V,0~16.7A | ±1% | 180mV | 80% |
| S-150-12 | 12V,0~12.5A | ±1% | 180mV | 82% |
| S-150-13.5 | 13.5V,0~6.7A | ±1% | 180mV | 83% |
| S-150-15 | 15V,0~10.0A | ±1% | 180mV | 84% |
| S-150-24 | 24V,0~6.5A | ±1% | 240mV | 85% |
| S-150-27 | 27V,0~5.6A | ±1% | 240mV | 86% |
| S-150-48 | 48V,0~3.2A | ±1% | 240mV | 87% |
| 200W Single Output power supply |
| Model | Output | Tol. | R&N | Effi |
| S-200-3.3 | 3.3V,0~40.0A | ±2% | 100mV | 65% |
| S-200-5 | 5V,0~40.0A | ±2% | 100mV | 71% |
| S-200-7.5 | 7.5V,0~26.7A | ±2% | 100mV | 76% |
| S-200-12 | 12V,0~16.7A | ±2% | 100mV | 79% |
| S-200-13.5 | 13.5V,0~14.9A | ±2% | 100mV | 80% |
| S-200-15 | 15V,0~14.3A | ±2% | 100mV | 81% |
| S-200-24 | 24V,0~8.4A | ±1% | 150mV | 83% |
| S-200-27 | 27V,0~7.5A | ±1% | 150mV | 83% |
| S-200-48 | 48V,0~4.2A | ±1% | 250mV | 84% |
| 250W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-250-5 | 5V,0~40.0A | ±2% | 80mV | 74% |
| S-250-12 | 12V,0~18.0A | ±1% | 120mV | 79% |
| S-250-15 | 15V,0~15.0A | ±1% | 120mV | 80% |
| S-250-24 | 24V,0~10.0A | ±1% | 120mV | 81% |
| S-250-27 | 27V,0~9.4A | ±1% | 150mV | 82% |
| S-250-48 | 48V,0~5.2A | ±1% | 200mV | 82% |
| 320W Single Output power supply |
| Model No. | Output | Tol. | R&N | Effi |
| S-320-5 | 5V,0~50.0A | ±2% | 150mV | 77% |
| S-320-7.5 | 7.5V,0~36.0A | ±2% | 150mV | 80% |
| S-320-12 | 12V,0~25.0A | ±1% | 150mV | 82% |
| S-320-13.5 | 13.5V,0~22.0A | ±1% | 150mV | 83% |
| S-320-15 | 15V,0~20.0A | ±1% | 150mV | 84% |
| S-320-24 | 24V,0~12.5A | ±1% | 150mV | 86% |
| S-320-27 | 27V,0~11.0A | ±1% | 200mV | 86% |
| S-320-48 | 48V,0~6.5A | ±1% | 240mV | 87% |
