Shenzhen Innovator Electronic Limited >> AC DC Intercharge Power Adapter 13.5W Series Switching Mode Power Supply with UL TUV&GS

AC DC Intercharge Power Adapter 13.5W Series Switching Mode Power Supply with UL TUV&GS

AC DC Intercharge Power Adapter 13.5W Series Switching Mode Power Supply with UL TUV&GS
Price: US $ 2.91-4.29/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: IC-0901500
Usage: Audio, LED Light
Connection: Plug In
Output Type: AC-DC
Certification: FCC,Ce,SAA,Rcm
Type: Manufacture

Product Description

Specifications

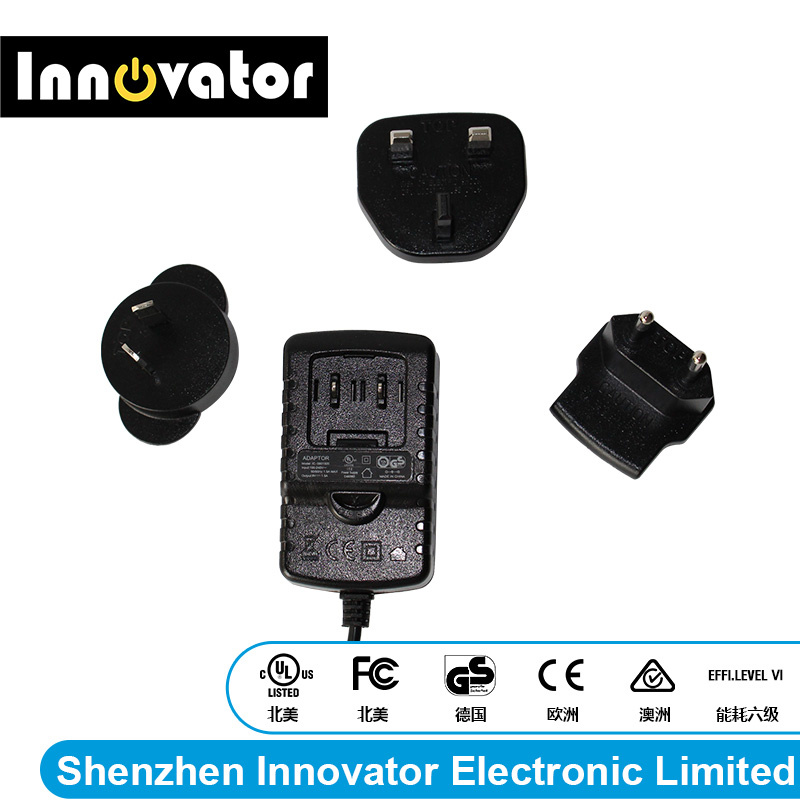

13.5W 9V 1.5A wallmount type power supply
Model No.IC-0901500

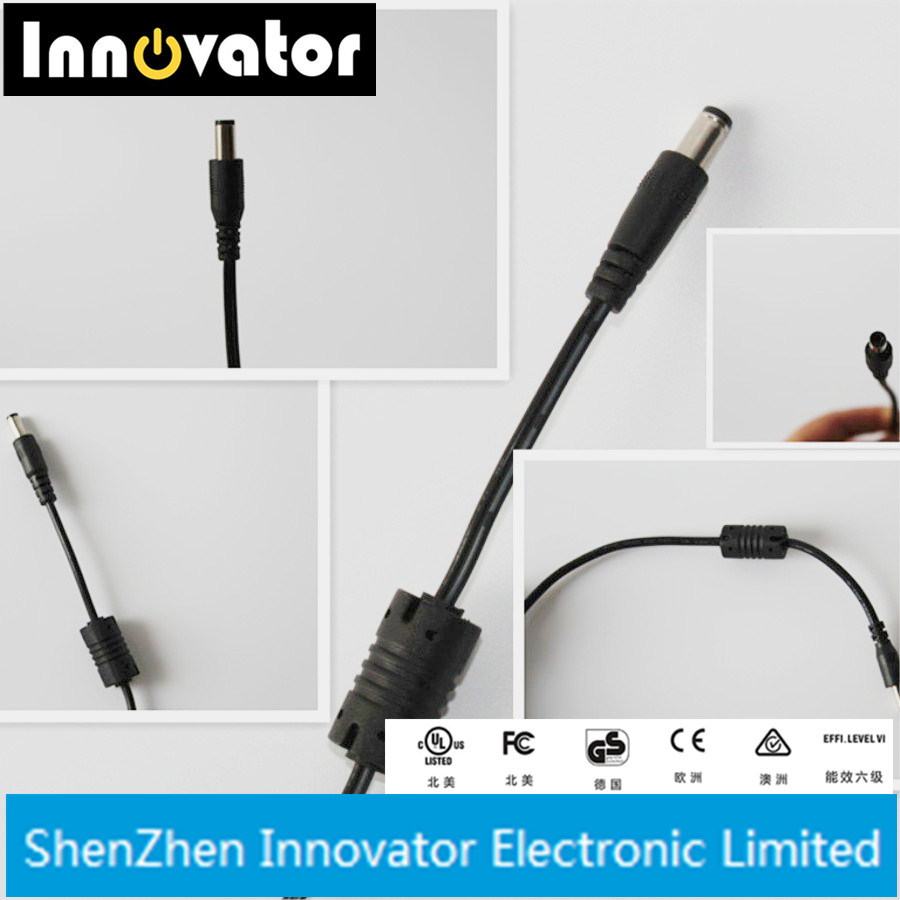

DC cord1.2m / 1.5m / 1.8m

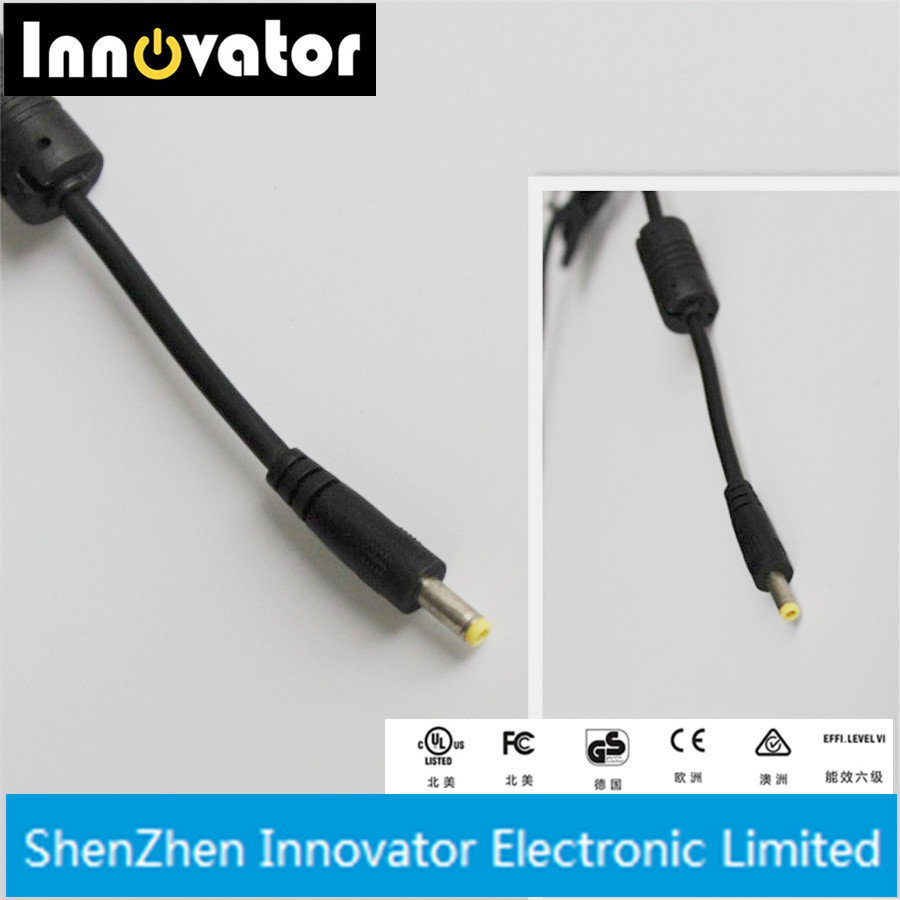

DC jackUSB, 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin
plugUS UK AU EU KR IN etc
 Input
Input current1.5AMax
Input Voltage Range100-240V
Input Frequency Range47/63Hz
Output
Output Voltage Range9V
Output Current Range1.5A
Output Power13.5W Max
Environment
Operating Temperature0°C ~40°C
Protection
Over Load ProtectionYes
Over Current ProtectionYes
Short Circuit ProtectionYes
Over Temperature ProtectionYes

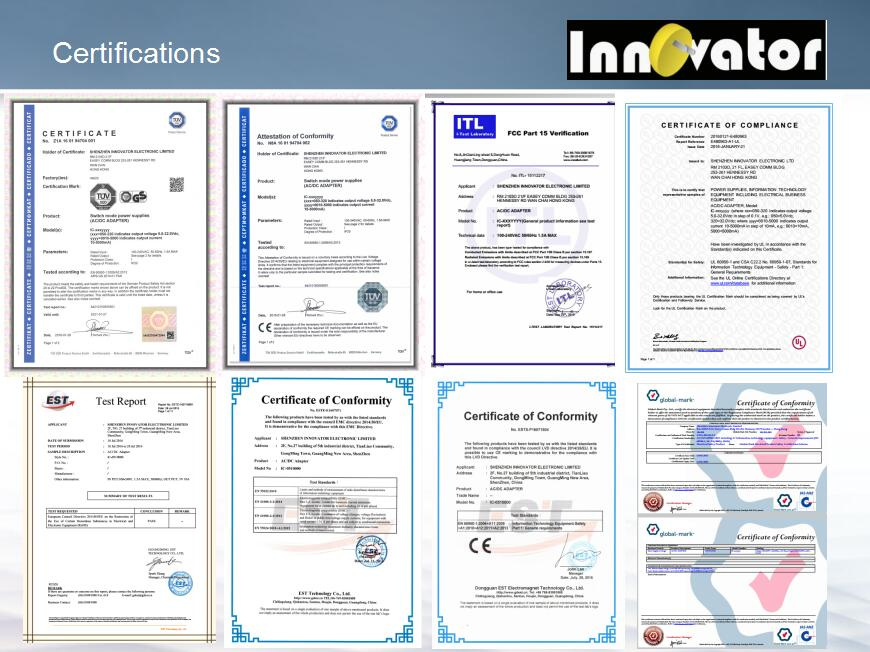

Certificates
CE, ROHS,  FCC, SAA, TUV&GS, UL, Erp V CEC RoHS
Terms and Conditions
Unload standly power0.1W Min
AC leakage Current0.25mA Max
DIELECTRIC STRENGTH Hi-Pot3000Vac/5mA/5s
Insulation resistance10MΩMin at 500V DC
Surge2KV
SAFETY STANDARDUL60950,IEC60950,UL60065
EMC STANDARDEN55020/EN55024
MOQ500-1000pcs
Warranty12months
Delivery date18 days for mass production, 3-5 days for samples
PaymentT/T , L/C ,Paypal
Trade termsFOB Shenzhen
Package
PE bag + inner box+ Carton
Warranty
Warranty1 year

































Shenzhen Innovator Electronic Limited was found in 2015 with a mission of manufacturing and marketing high quality power supply/adapter to the customers worldwide, with special emphasis on the North American and European market.

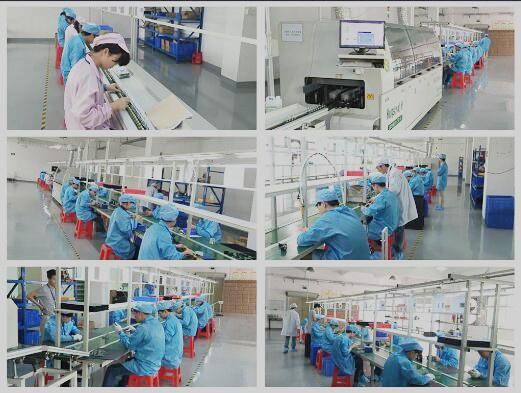

We are professional in producing power supply/adapter for LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot. The products ranges from 5W to 120W. We now supply more than 100 models products cover in the market. We are UL certified factory, fully equipped with the more modern manufacturing line, aging room, functions testing center, which cover the whole key manufacturing processes from PCB design, plug-in components, assembling, aging, to functions testing.

We have been committed to the improvement and innovation of technology. Through the analysis of the market dynamics and the needs of customers, we strive to provide high quality and excellent service. We will persist in the principles mentioned above, and take steps to be an international and high-tech modern enterprise
