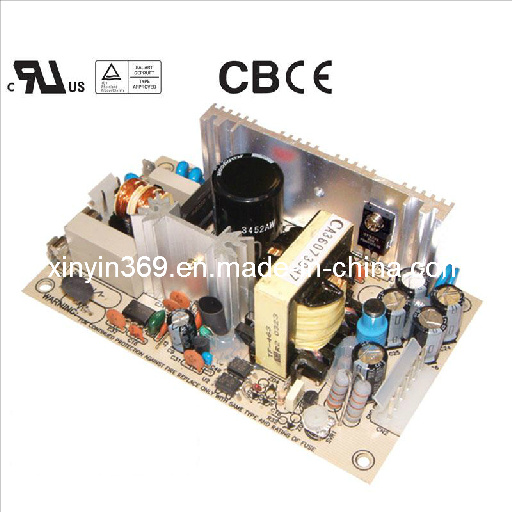

65W AC/DC Open Frame Power Supply (SMPS) PS-65
Features:
Universal AC input/Full range
Low leakage current<0.5mA
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 65kHz
Our switching power supply product:
Single output LED power supply
Dual output d series power supply
Triple output t series power supply
Quad output q series power supply
Miniature size ms, RS, NES series power supply
Witch PFC function sp series power supply
DIN rail DR series power supply
LED driver, FS series power supply
Open frame PS, PD, PT series power supply
DC/DC converter SD series
WMP and AD series
|
MODEL |
PS-65-3.3 |
PS-65-5 |
PS-65-7.5 |
PS-65-12 |
PS-65-13.5 |
PS-65-15 |
PS-65-24 |
PS-65-27 |
PS-65-48 |
|
DC VOLTAGE |
3.3V |
5V |
7.5V |
12V |
13.5V |
15V |
24V |
27V |
48V |
|
RATED CURRENT |
12A |
12A |
8A |
5.2A |
4.7A |
4.2A |
2.7A |
2.4A |
1.35A |
|
CURRENT RANGE |
0 ~ 15.2A |
0 ~ 13.8A |
0 ~9.6A |
0 ~ 6A |
0 ~ 5.4A |
0 ~ 4.8A |
0 ~ 3A |
0 ~ 2.7A |
0 ~ 1.5A |
|
RATED POWER |
39.6W |
60W |
60W |
62.4W |
63.5W |
63W |
64.8W |
64.8W |
64.8W |
|
OUTPUT POWER (max. ) |
Rated output power for convection; 72W (+3.3V: 35W) with 18 CFM min. Forced air |
|
RIPPLE & NOISE (max. ) |
80mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
VOLTAGE ADJ. RANGE |
3.14 ~ 3.63V |
4.75 ~ 5.5V |
7.13 ~ 8.25V |
11.4 ~ 13.2V |
12.8 ~ 14.9V |
14.25 ~ 16.5V |
22.8 ~ 26.4V |
25.65 ~ 29.7V |
45.6 ~ 52.8V |
|
VOLTAGE TOLERANCE |
± 3.0% |
± 3.0% |
± 3.0% |
± 2.0% |
± 2.0% |
± 2.0% |
± 2.0% |
± 2.0% |
± 2.0% |
|
LINE REGULATION |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
|
LOAD REGULATION |
± 3.0% |
± 3.0% |
± 3.0% |
± 2.0% |
± 2.0% |
± 2.0% |
± 2.0% |
± 2.0% |
± 2.0% |
|
SETUP, RISE, HOLD TIME |
800ms, 20ms, 60ms at full load |
|
VOLTAGE RANGE |
90 ~ 264VAC 127 ~ 370VDC |
|
FREQUENCY RANGE |
47 ~440Hz |
|
EFFICIENCY (Typ. ) |
69% |
76% |
79% |
79% |
79% |
79% |
80% |
80% |
80% |
|
AC CURRENT |
1.2A/115VAC 0.72A/230VAC |
|
INRUSH CURRENT (max. ) |
COLD START 20A/115VAC 40A/230VAC |
|
LEAKAGE CURRENT |
< 0.5mA/240VAC |
|
OVERLOAD |
73 ~ 105W (3.3V: 51 ~ 75 W)(5V: 70 ~ 105) rated output power |
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
OVER VOLTAGE |
3.8 ~ 4.46V |
5.75 ~ 6.75V |
8.63 ~ 10.1V |
13.8 ~ 16.2V |
15.5 ~ 18.2V |
17.25~ 20.25V |
27.6 ~ 32.4V |
31 ~ 36.45V |
55.2 ~ 64.8V |
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
WORKING TEMP. |
-10 ~ +60º C (Refer to output load derating curve) |
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85º C, 10 ~ 95% RH |
|
TEMP. COEFFICIENT |
± 0.04%/º C (0 ~ 50º C) |
|
VIBRATION |
10 ~ 500Hz, 2G 10min. /1cycle, 60min. each along X, Y, Z axes |
|
SAFETY STANDARDS |
Design refer to UL60950-1, TUV EN60950-1 |
|
WITHSTAND VOLTAGE |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
|
HARMONIC CURRENT |
Compliance to EN61000-3-2, -3 |
|
EMS IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; Light industry level, criteria A |
|
MTBF |
300.7Khrs min. MIL-HDBK-217F(25º C) |
|
DIMENSION |
127*76*42mm (L*W*H) |
|
PACKING |
0.21Kg; 54pcs/14.2Kg/1.35CUFT |
