AC-DC S-12-12 Ce Approved 12W 12V 1A Single Output LED Switching Power Supply for CCTV Power Supply

Name: AC-DC S-12-12 Ce Approved 12W 12V 1A Single Output LED Switching Power Supply for CCTV Power Supply
Brand: all-electronics-online.com
SKU: 711318292
Availability: InStock
Rating: 4.9 (64 reviews)

Price:	US $ 2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YDSG12-12
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CSA
Brand:	Yds

Product Description

AC-DC S-12-12 CE approved 12w 12v 1a single output led switching power supply for cctv power supply
Data Sheet:

12V 1A Technical Specification
Model No.	YDSH12-12
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	1A
	Power	12W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
Protection	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1 year
Feature	Dimension(LWH)	703830mm
	Weight	57g
	Inner box size
	Inner box weight
	PCS/CTN	100 PCS/CTN
	CTN size	375228320mm
	GW/CTN
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

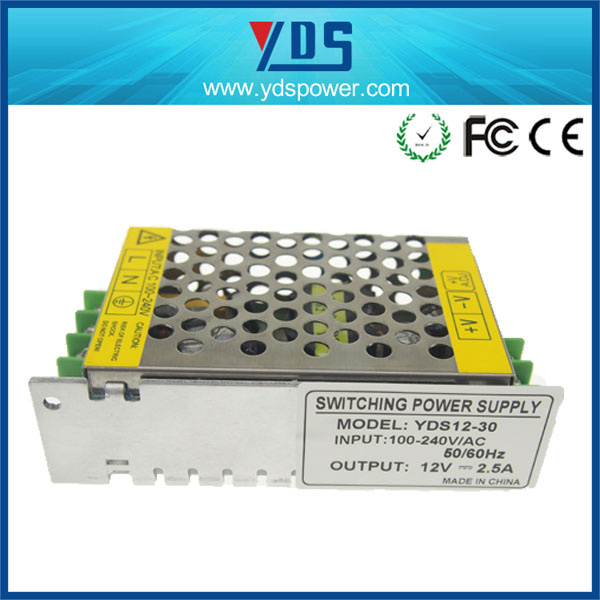

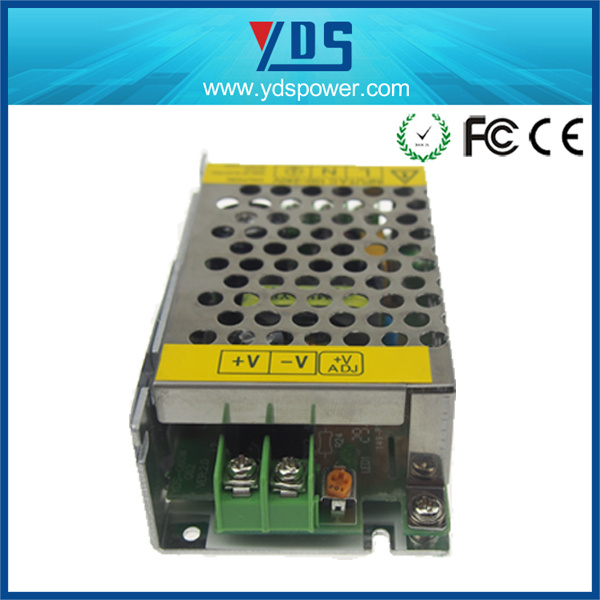

Photos:

Features

• Universal AC input / Full range

• Protections:Short circuit/Over load/Over voltage
• Forced air cooling by built-in DC fan
• PWM control and regulated
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Low cost
